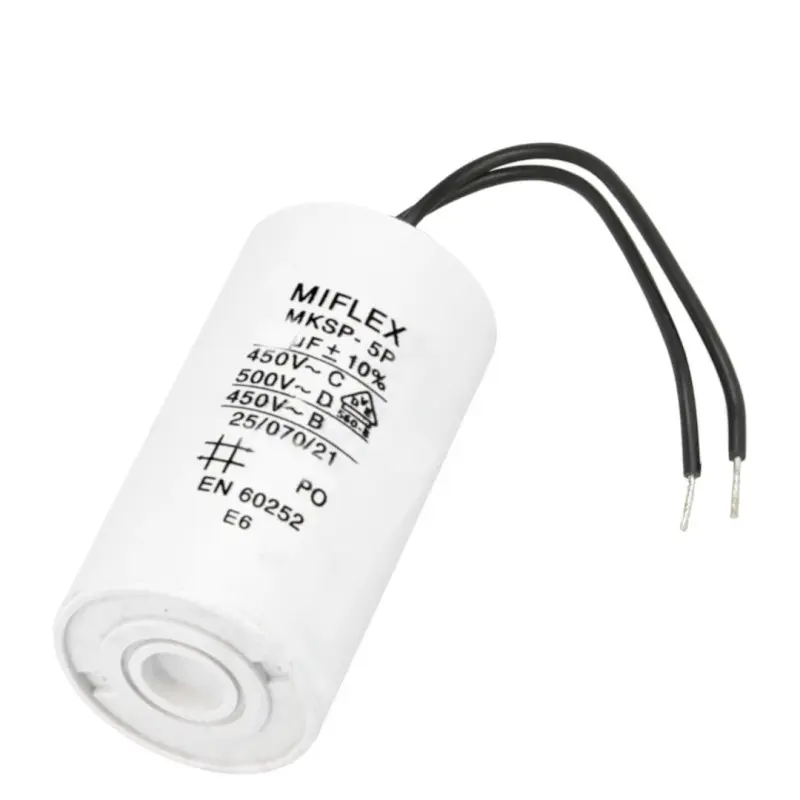

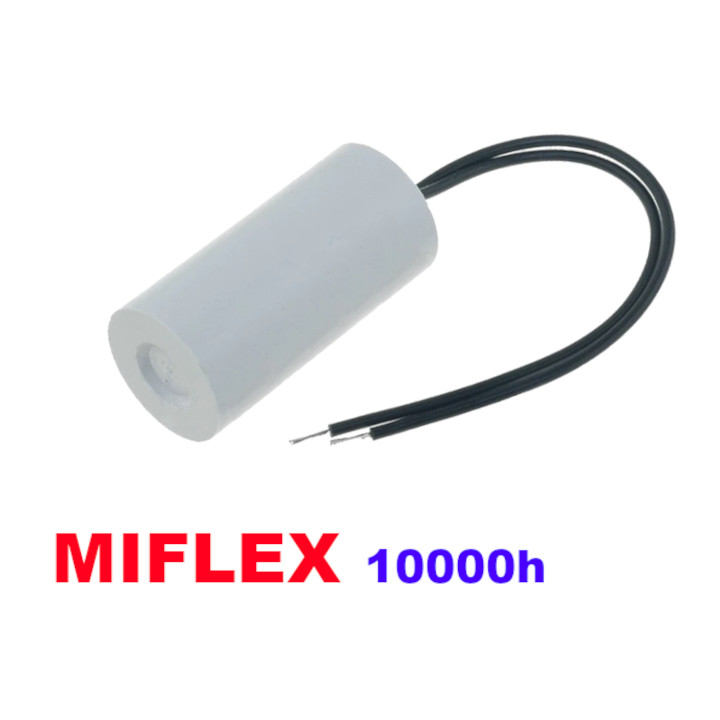

MIFLEX 35uF 450Vac motor capacitor POLISH

ENGINE CAPACITOR WORKING 35uF/450V MIFLEX CONNECTORS Polish product

LONG LIFETIME 10000 hours

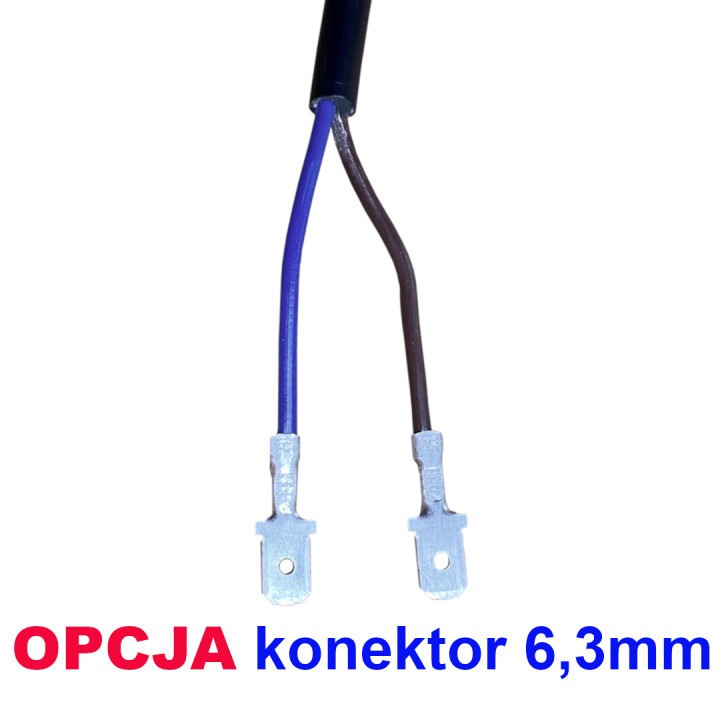

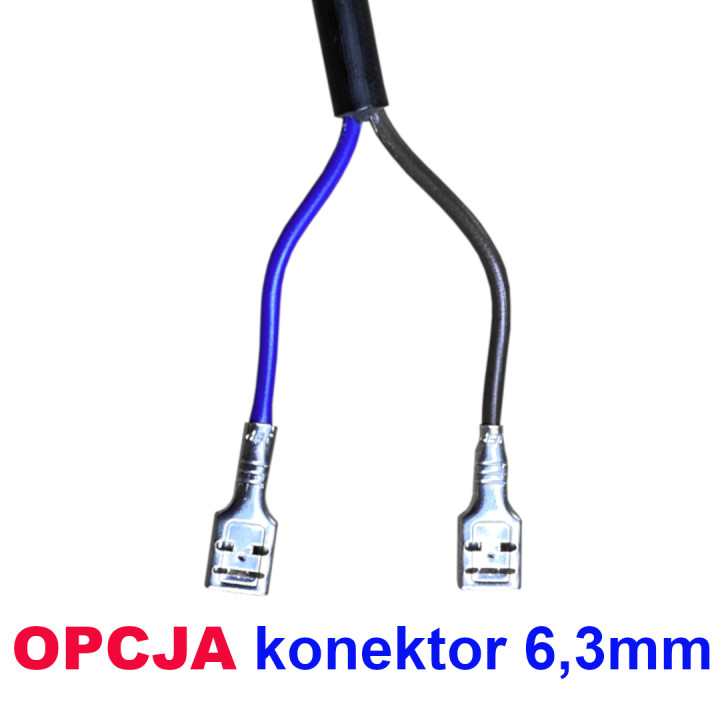

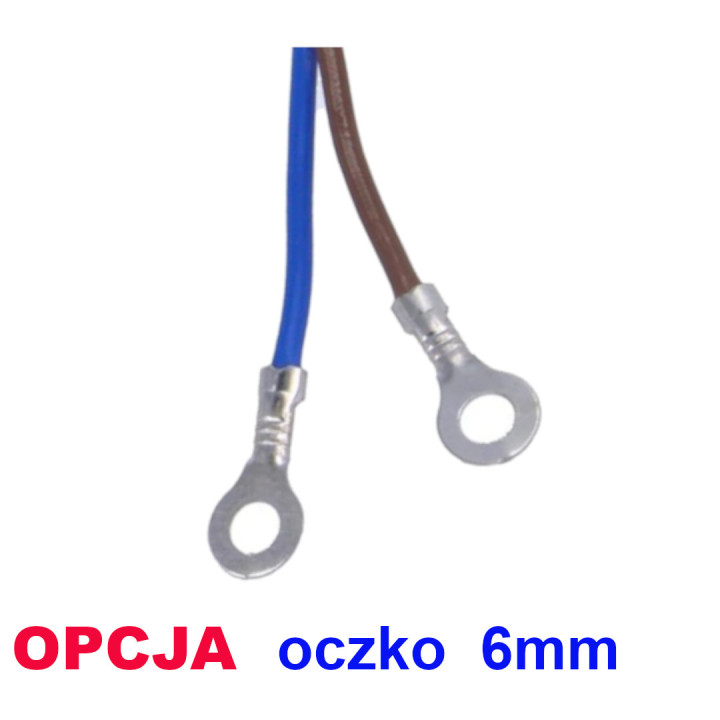

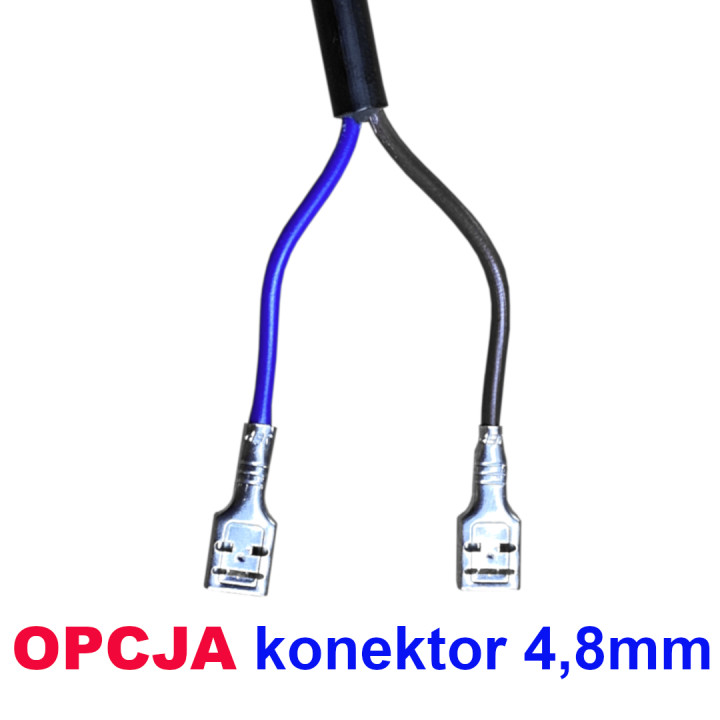

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE ends shown in photos - details at the end of the description.

After When selecting a capacitor, you should choose an offer whose title starts with " Surcharge end... " and add to cart.

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used:

• lawn mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

SPECIFICATION TECHNICAL

• Manufacturer MIFLEX
• Capacitor type polypropylene
• Application capacitors for motors, work
• Capacity 35µF
• face="Arial">Working voltage 450V
• face="Arial"> Body dimensions Ø50 x 78m
• face="Arial"> Operating temperature -25...70
• face="Arial"> T face="Arial">olerance ±10%
• face="Arial"> face="Arial">Climate category 25/70/21
• Lifespan 10000h
• Outputs: 2 Wires
• Gross weight: 0.1 kg


Capacity selection:

You should always be guided by the documentation and the status found in device. The important information is that you can always increase the capacity ( max by 20%) compared to the damaged one. Too much capacity causes a drop in engine speed and power (actually a drop torque). Too small capacity causes the engine to have problem with starting.

Symptoms of capacitor damage:

- optical inspection - external melting in the form of gray "lava" ++

- auditory inspection - the engine does not work and roars ++

- electrical measurement with a meter

++ the methods described above usually determine the damage capacitor, but this may not be the only fault in the system drive.

***Additional tip assembly:

After When selecting a capacitor, you should choose an offer whose title starts with " Terminal payment... ".

If If you order several capacitors, please include them in the order notes ( please avoid separate message) please write to which capacitors, which endings.
