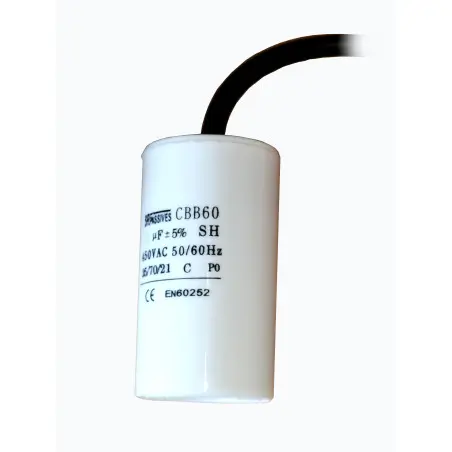

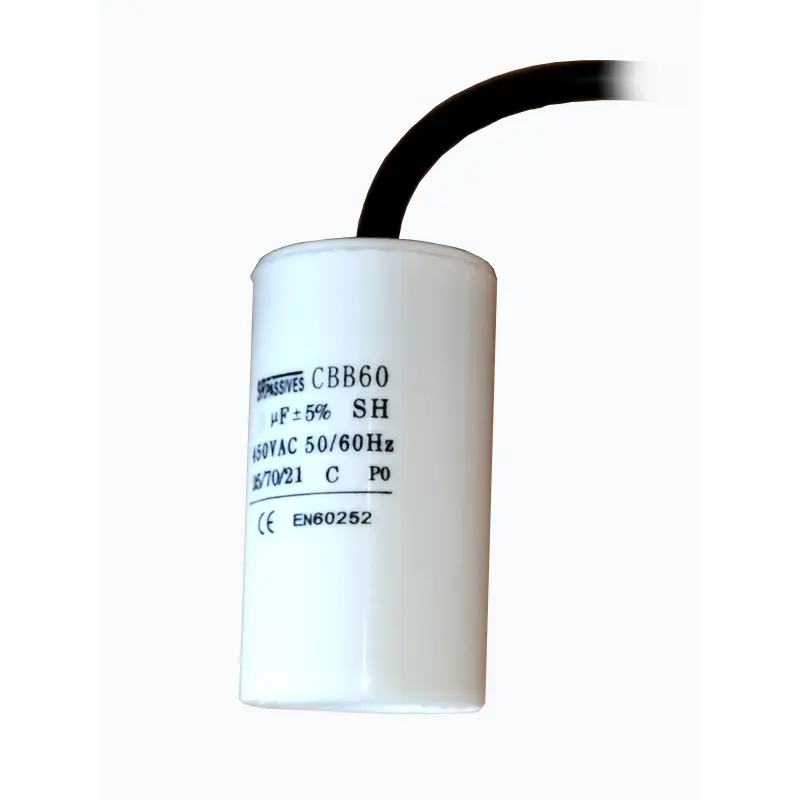

Motor capacitor STARTING WORK 20uF / 450V

ENGINE CAPACITOR WORKING 20uF/450V CONNECTORS SR-PASSIVES

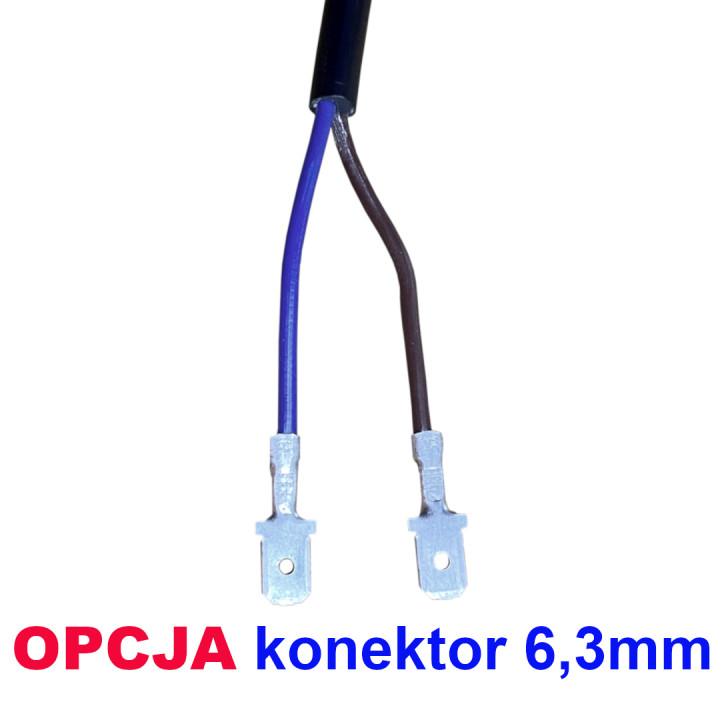

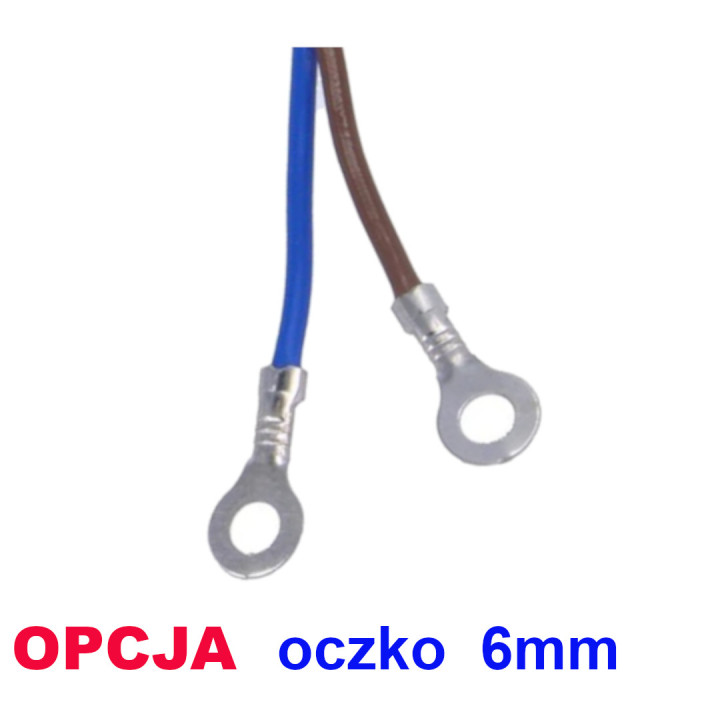

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE ends shown in photos - details at the end of the description.

After When selecting a capacitor, you should choose an offer whose title starts with " Surcharge end... " and add to cart.

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used:

• mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

TECHNICAL SPECIFICATION

• Manufacturer SR Passives
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 20µF
• Operating voltage 450V
• Body dimensions Ø40 x 70mm
• Operating temperature -25...70°C
• Tolerance ±5%
• Climate category 25/70/21
• Lifespan 3000h
• Leads CABLES 190mm

Capacity selection:

You should always be guided by the documentation and the status found in device. The important information is that you can always increase the capacity ( max by 20%) compared to the damaged one. Too much capacity causes decrease in engine speed and power (actually a decrease in torque rotational). Too small capacity causes the engine to have problems with start-up.

Symptoms of capacitor damage:

• optical inspection - external melting in the form of gray "lava" ++
• auditory inspection - the engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor damage, but this may not be the only fault in the drive system.

***Additional tip assembly:

After selecting the capacitor, you need to choose the offer that you want the title begins with " Terminal Surcharge... ".

If you order several capacitors, please include them in the comments. to order (please avoid a separate message) please write to which capacitors, which terminals.
