Motor capacitor STARTING WORK 6uF / 450V

ENGINE CAPACITOR WORKING 6uF/450V SR-PASSIVES CABLES

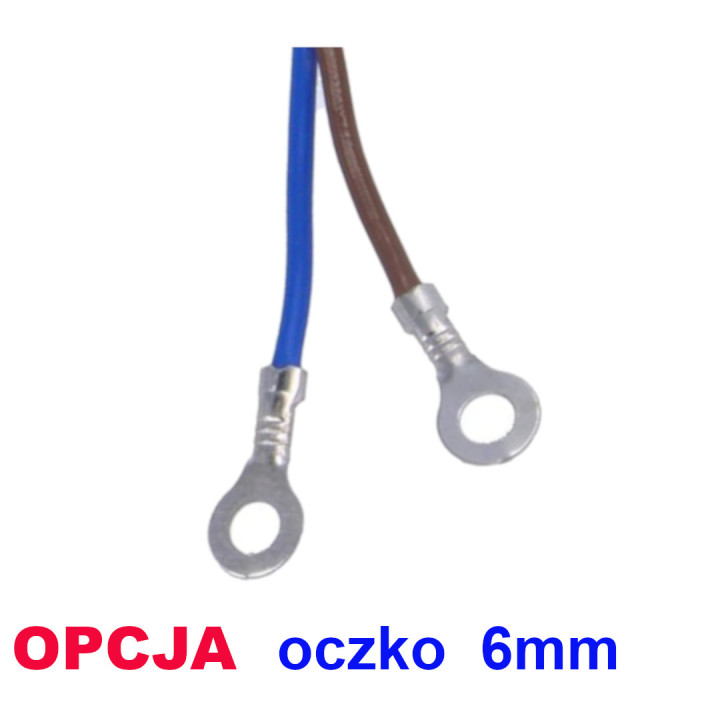

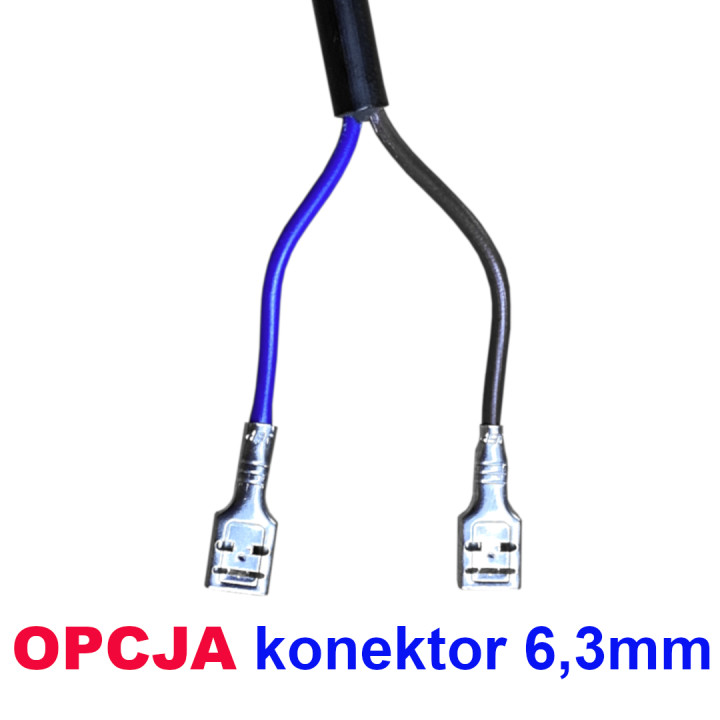

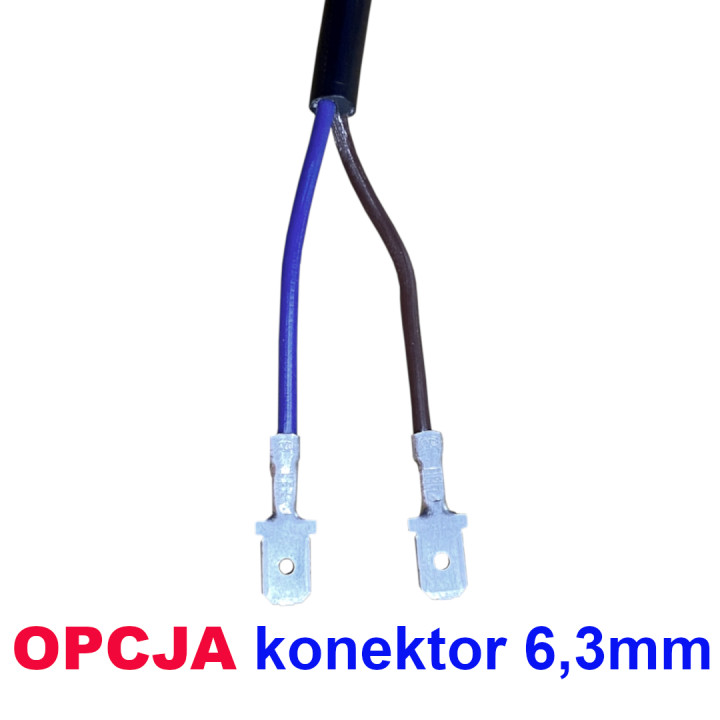

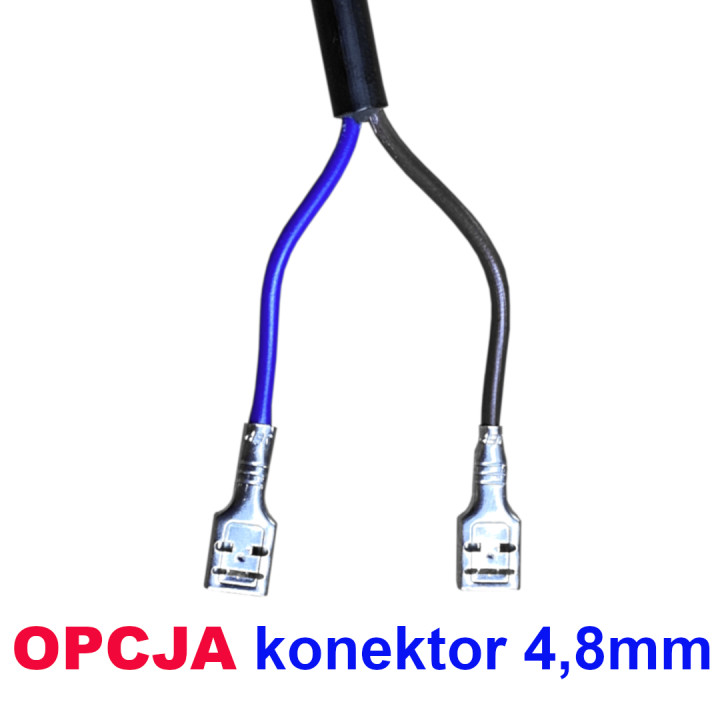

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE ends shown in photos - details at the end of the description.

After When selecting a capacitor, you should choose an offer whose title starts with " Surcharge end... " and add to cart.

The motor starting/running capacitor is designed to work with asynchronous electric motors powered by alternating current. In life Everyday we encounter them in:

• mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

TECHNICAL SPECIFICATION

• Manufacturer SR Passives
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 6µF
• Operating voltage 450V
• Body dimensions: 35 x 60mm
• Operating temperature -25...70°C
• Tolerance ±5%
• Climate category 25/70/21
• Lifespan 3000h
• Leads CABLES 190mm

Capacity selection:

You should always be guided by the documentation and the status found in device. The important thing to know is that you can always increase the capacity ( max by 20%) compared to the damaged one. Too much capacity causes a decrease engine speed and power (actually a drop in torque rotational). Too small capacity means that the engine may have problems with start-up.

Symptoms of capacitor damage:

• optical inspection - external melting in the form of gray "lava" ++
• auditory inspection - the engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor damage, but This may not be the only fault in the drive system.

***Additional tip assembly:

After selecting the capacitor, you need to choose the offer that you want the title begins with " Terminal Surcharge... ".

If you order several capacitors, please include them in the comments. to order (please avoid a separate message) please write to which capacitors, which terminals.
