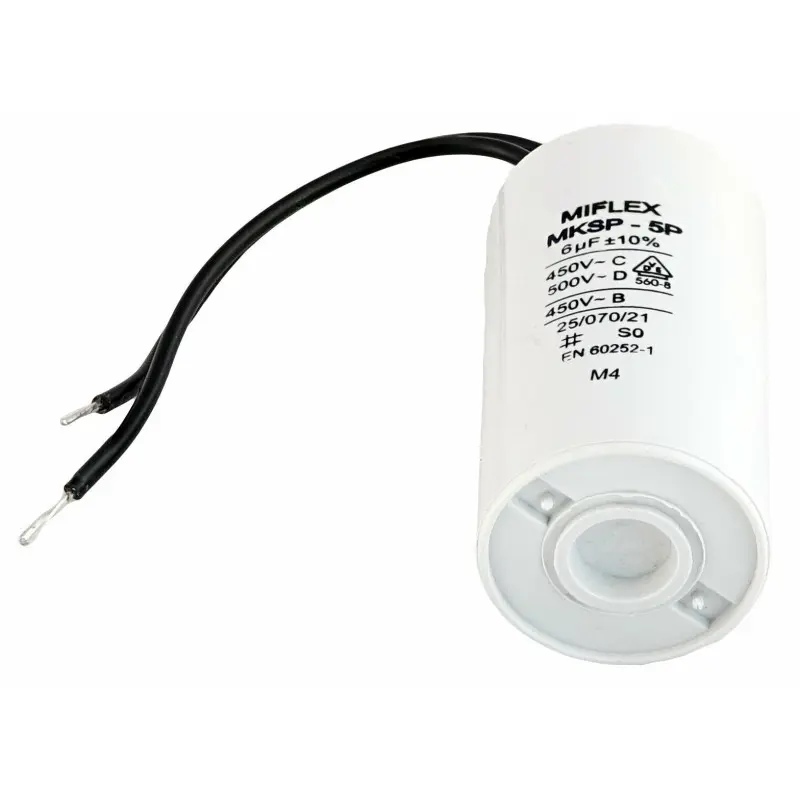

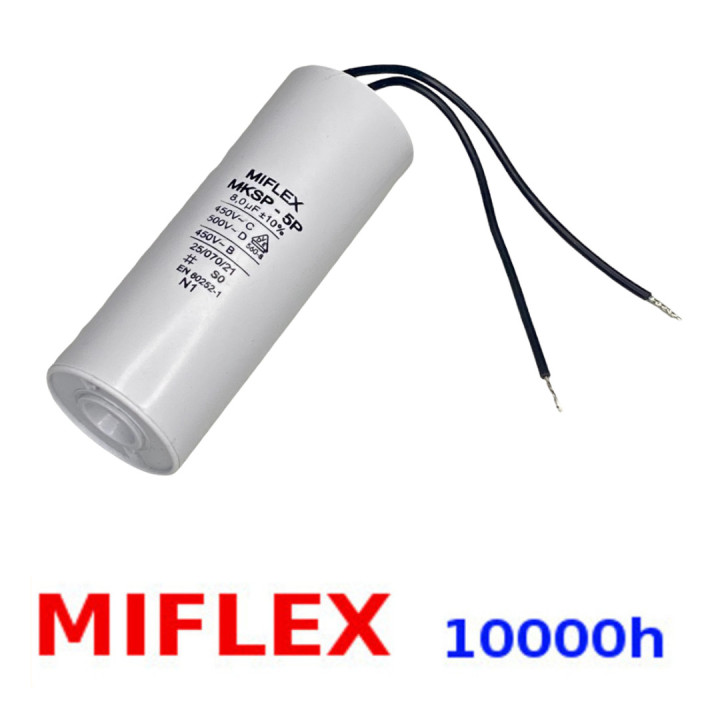

MIFLEX 6uF 450Vac POLISH v7 motor capacitor

ENGINE CAPACITOR WORK 6uF/450V MIFLEX CABLES Polish product

LONG LIFETIME 10000 hours

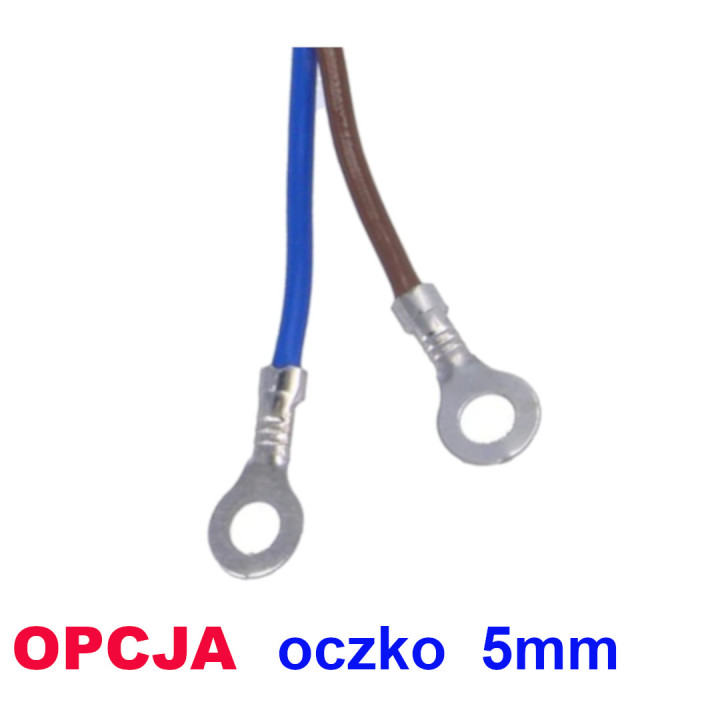

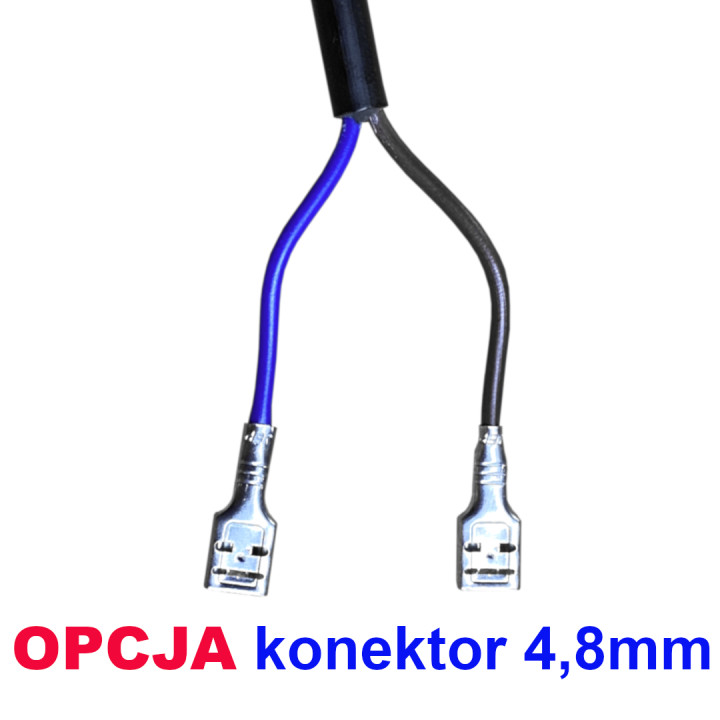

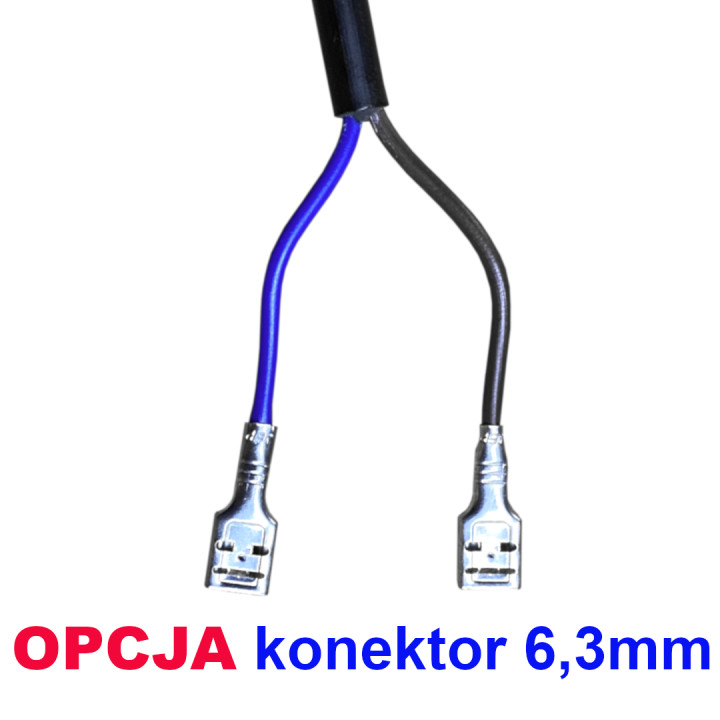

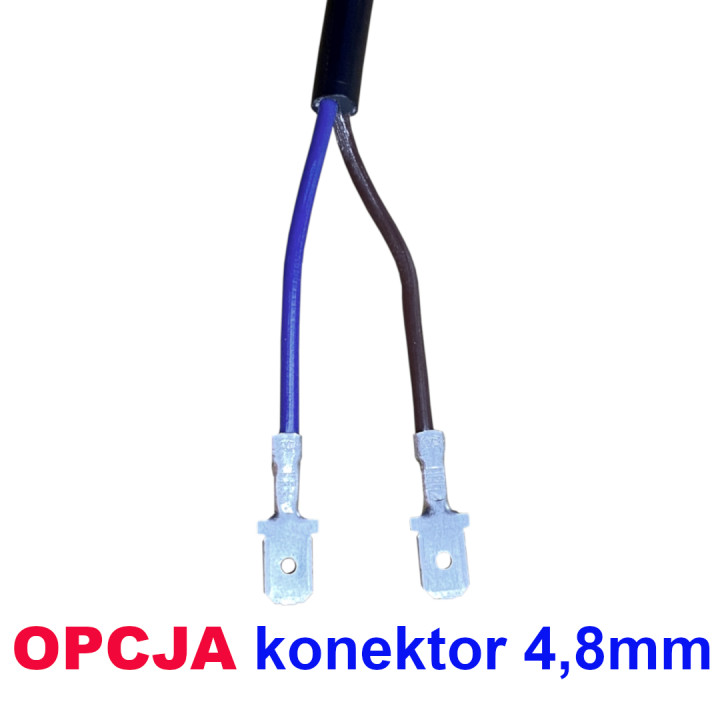

***For capacitors with wires, you can order the tips shown in the photos for an ADDITIONAL CHARGE - details at the end of the description.

After selecting the capacitor, select the offer whose title begins with " Tip surcharge... " and add it to the cart.

The motor starting/running capacitor is designed to work with asynchronous electric motors powered by alternating current.

Are used:

• lawn mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

TECHNICAL SPECIFICATION

• Manufacturer MIFLEX
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 6µF
• Operating voltage 450V
• Body dimensions Ø30 x 53mm
• Operating temperature -25...70
• Tolerance ±10%
• Capacitor series: MKSP-5P
• Version 7
• Climate category 25/70/21
• Lifespan 10000h
• Pins 2 CABLES
• Gross weight: 0.1 kg

Capacity selection:

Always refer to the documentation and the condition found in the device. Important information is that the capacity can always be increased (max. 20%) compared to the damaged one. Too much capacity causes a decrease in the engine speed and power. Too little capacity causes the engine to have problems starting.

Symptoms of capacitor damage:

• optical inspection - melting on the outside in the form of gray "lava" ++
• auditory inspection - engine does not work and roars ++
• electrical measurement with a meter

++ The methods described above usually determine capacitor damage, but this may not be the only fault in the drive system.

***Additional tip assembly:

After selecting the capacitor, select the offer whose title begins with " End payment... ".

If you are ordering several capacitors, please write in the order comments (please avoid a separate message) which capacitors and which terminals.
