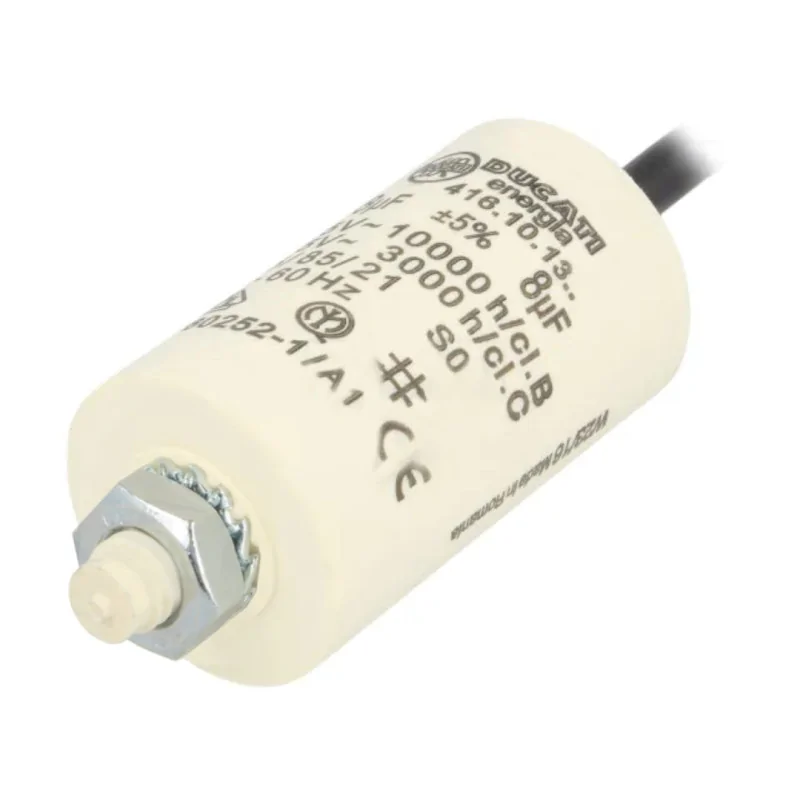

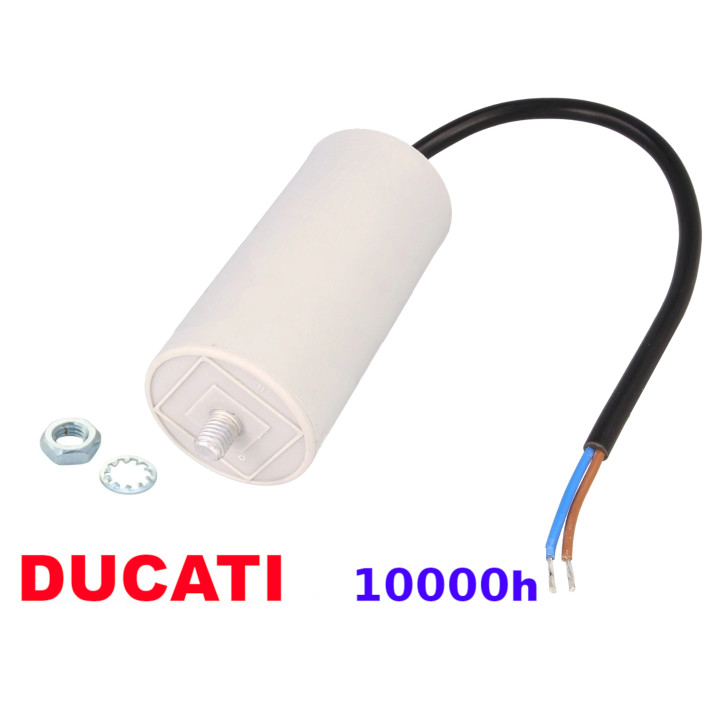

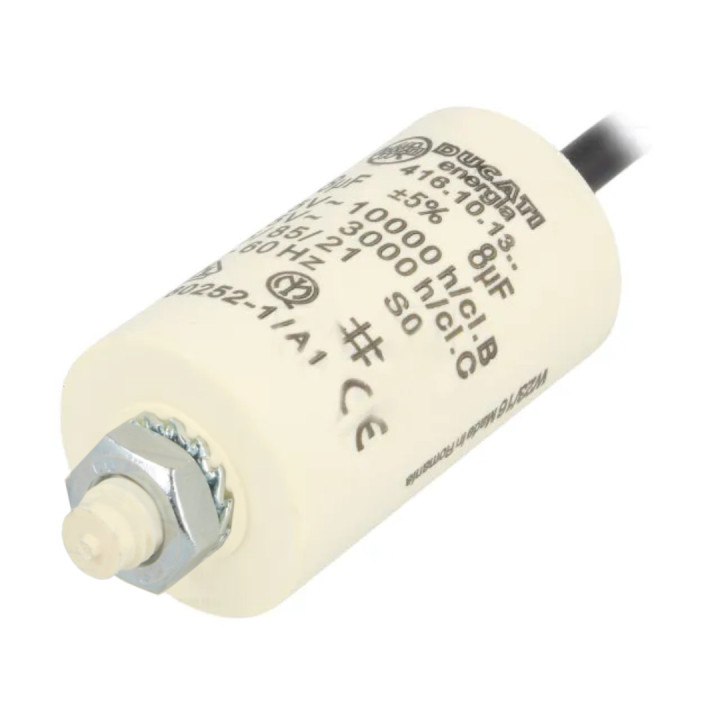

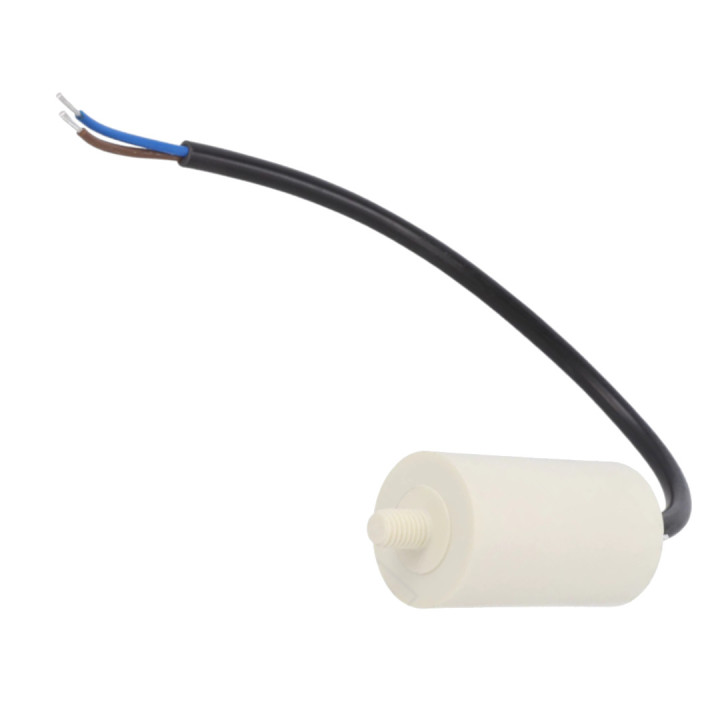

Engine capacitor WORK 8uF/425V- DUCATI

ENGINE CAPACITOR WORKING 8uF/425V DUCATI ENERGIA CABLES

LONG LIFETIME 10000 hours

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE ends shown in photos - details at the end of the description.

After When selecting a capacitor, you should choose an offer whose title starts with " Surcharge end... " and add to cart.

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Are used:

• lawn mowers
• fans
• central heating circulation pumps
• Entrance gate actuators
• and others

TECHNICAL SPECIFICATION

• Manufacturer: Ducati Energia
• Capacitor type: polypropylene
• Capacitor Applications: For Motors asynchronous
• Capacity 8 µF
• Operating voltage: 425V
• Body dimensions: 32 x 55mm
• Operating temperature: -25...85°C
• Tolerance: ±5%
• Lifespan: 10000h
• Outputs: CABLES
• Fastening: M8 screw - The screw shank is made of the same material as the capacitor body or plastic It is very easy to cut it with a hacksaw, a sharp knife or wire cutters !! !
• Gross weight: 0.05 kg

Capacity selection:

You should always be guided by the documentation and the status found in device.

Important information:

you can always increase the capacity (max. 20%) in relation to damaged:

• Too much capacity causes a drop in speed speed and engine power (actually a drop in torque rotary).
• Too small a capacity causes the engine to have problem with starting.

Symptoms of capacitor damage:

• optical inspection - external melting in the form of gray "lava" ++
• auditory inspection - engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor damage, but This may not be the only fault in the drive system.

***Additional tip assembly:

After When selecting a capacitor, you should choose an offer whose title starts with " Terminal payment... ".

If If you order several capacitors, please include them in the order notes ( please avoid separate message) please write to which capacitors, which endings.
