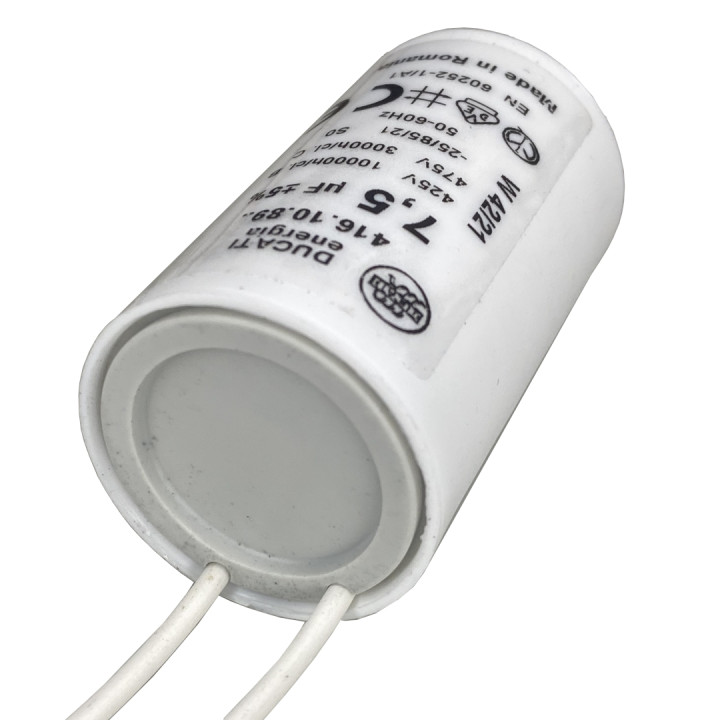

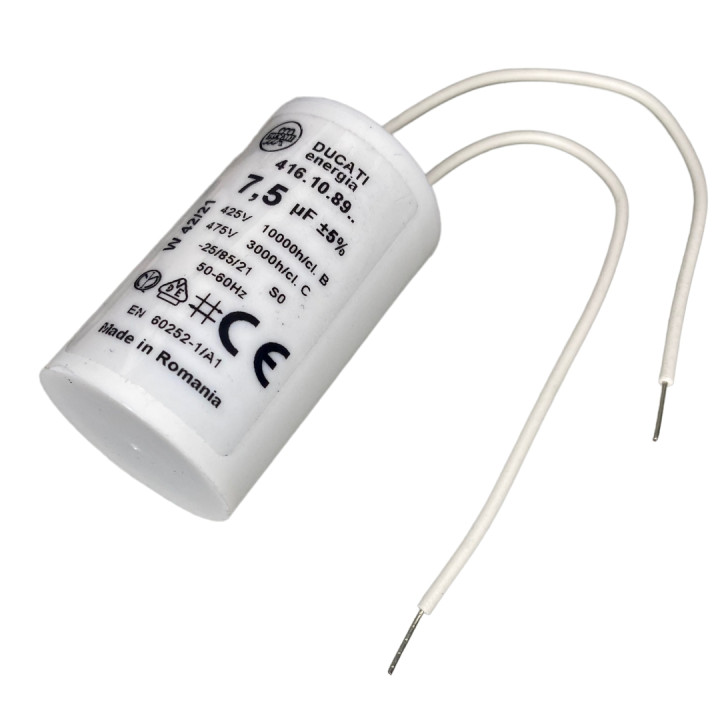

Motor capacitor 7.5uf 425V VERY SMALL

CAPACITOR ENGINE WORK 7.5uF/425V DUCATI ENERGIA

* * * VERY SMALL ***

LONG LIFETIME 10000 hours

***Down capacitors with wires can be ordered for an ADDITIONAL CHARGE ends shown in photos - details at the end of the description.

After When selecting a capacitor, you should choose an offer whose title starts with " Surcharge end... " and add to cart.

Capacitor starting/running motor is designed to work with asynchronous electric motors powered by alternating current.

Applied:

• fans
• central heating circulation pumps
• roller shutter actuators and bars
• and others

SPECIFICATION TECHNICAL

• Manufacturer DUCATI ENERGIA
• Capacitor type: polypropylene
• Application of capacitors for motors, work
• Capacitance 7.5µF
• Operating voltage 425V
• Body dimensions Ø32 x 55mm
• Operating temperature -25...85 °C
• Tolerance ±5%
• Climate category 25/85/21
• Series 416.17
• Lifespan 10000h
• Outputs CABLES
• Core diameter: 0.5mm2
• Gross weight: 0.05 kg

Selection capacity:

It is necessary always refer to the documentation, the condition found in the device. Important the information is that you can always increase the capacity (max. 20%) in in relation to the damaged one. Too much capacity causes a drop in speed rotational speed and engine power. Too small a capacity causes the engine to have problem with starting.

Symptom capacitor damage:

• optical inspection - melting on the outside in the form of gray "lava" ++
• auditory inspection - engine does not work and roars ++
• electrical measurement with a meter

++ the methods described above usually determine capacitor damage, but it may may not be the only fault in the drive system.

***Additional tip assembly:

After When selecting a capacitor, you should choose an offer whose title starts with " Terminal payment... ".

If If you order several capacitors, please include them in the order notes ( please avoid separate message) please write to which capacitors, which endings.
