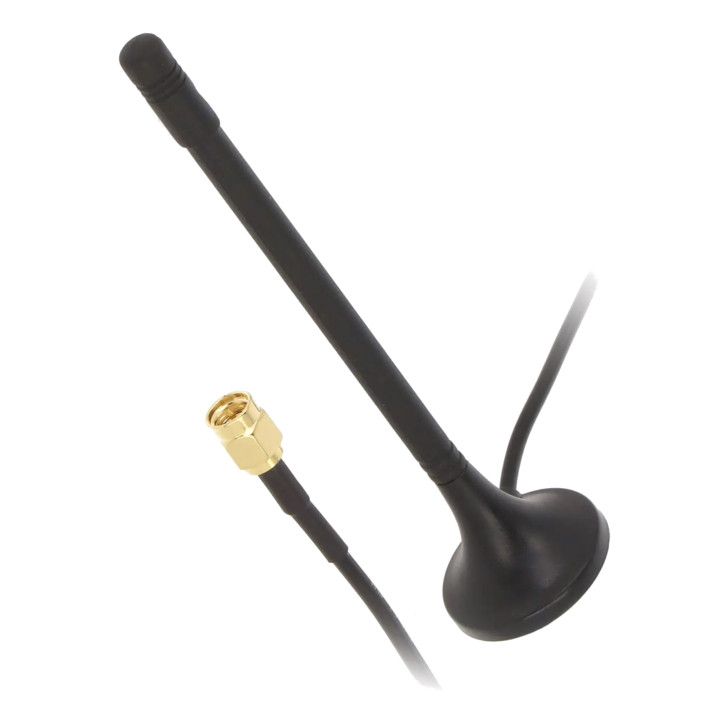

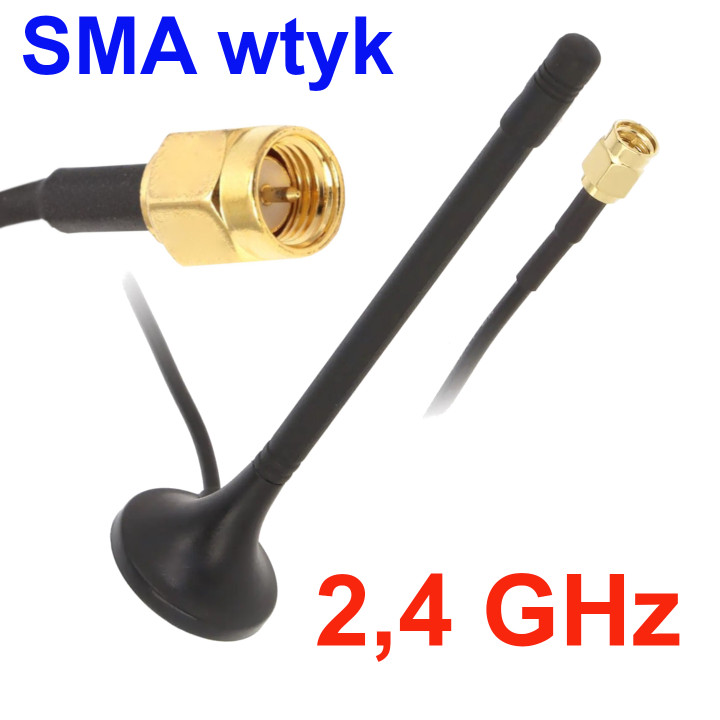

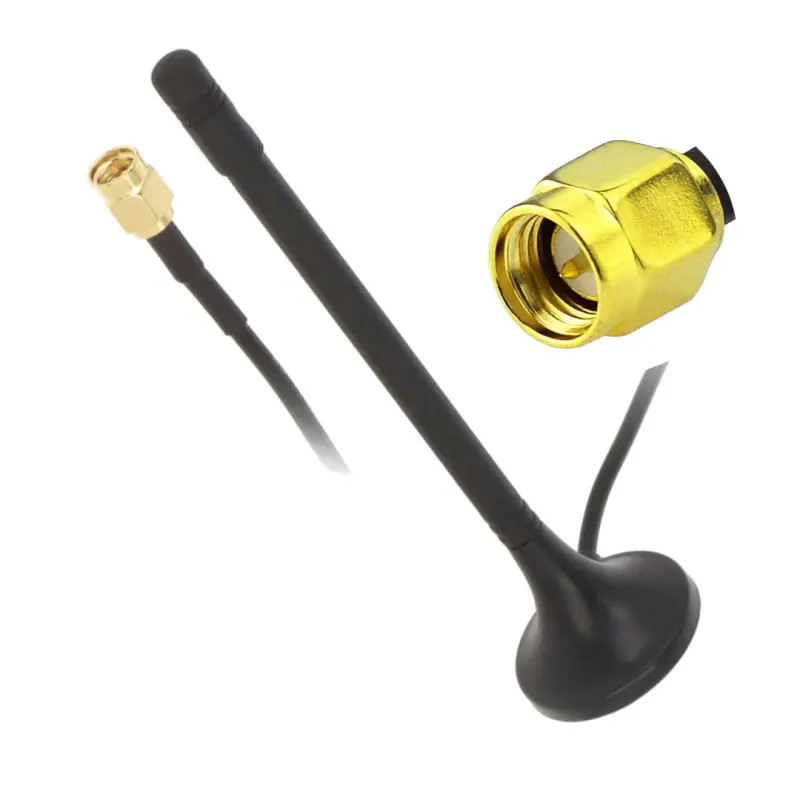

WiFi Antenna 2.4GHz 2dBi MAGNETIC SMA Plug

ANTENNA 2.4GHz 2dBi magnetic SMA plug

face="Arial"> NOTE:

This antenna is NOT INTENDED FOR WiFi NETWORK DEVICES - router, network card, access point

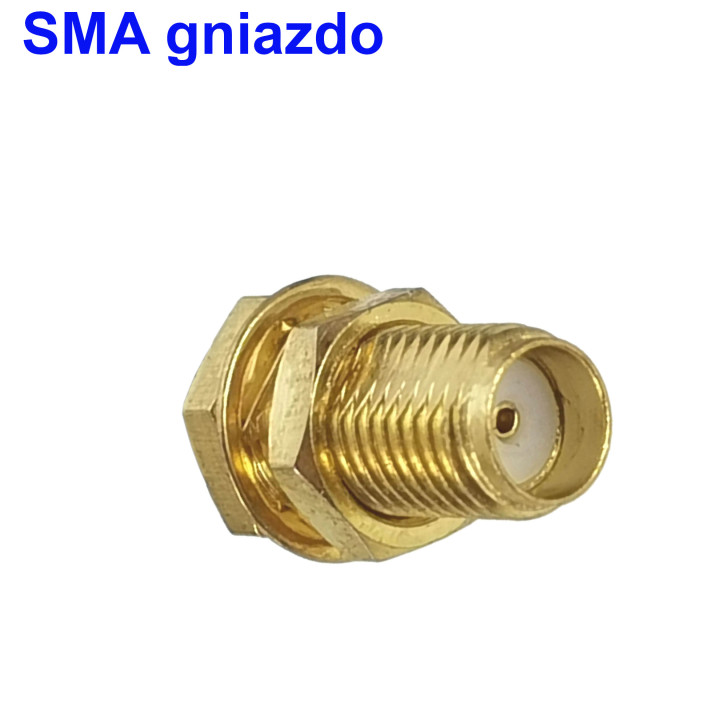

!!! please verify your socket on your device with the photo !!!

For the antenna to work with WiFi network devices (routers, access points) must be equipped with SMA-RP plug.

Application:

• 2.4GHz WiFi communication,
• Bluetooth communication,
• a smart home,
• garage door control systems,
• alarm sensors,
• cameras,
• drones,
• devices remote controlled,
• temperature controllers,
• radio lines,
• Telemetry

Leading the antenna outside the device housing, whether the room significantly improves the range and stability of transmission data.

In case of antenna mounted with adhesive tape, avoid its installation on metal surfaces, as this leads to lowering its profit and changing its characteristics directional.

SPECIFICATION:

• Frequency: 2400...2483.5Mhz
• Antenna energy gain: 2dBi
• Impedance: 50Ω
• Polarization: linear
• Operating temperature: -40...85°C
• Installation: on magnet
• Connector Type: SMA Male
• Cable type: RG174

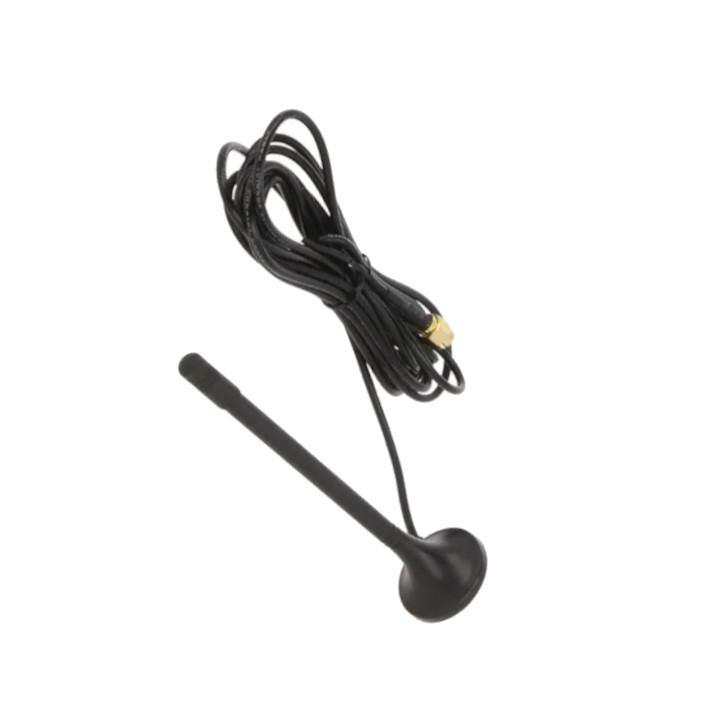

• Cable length: 3 m

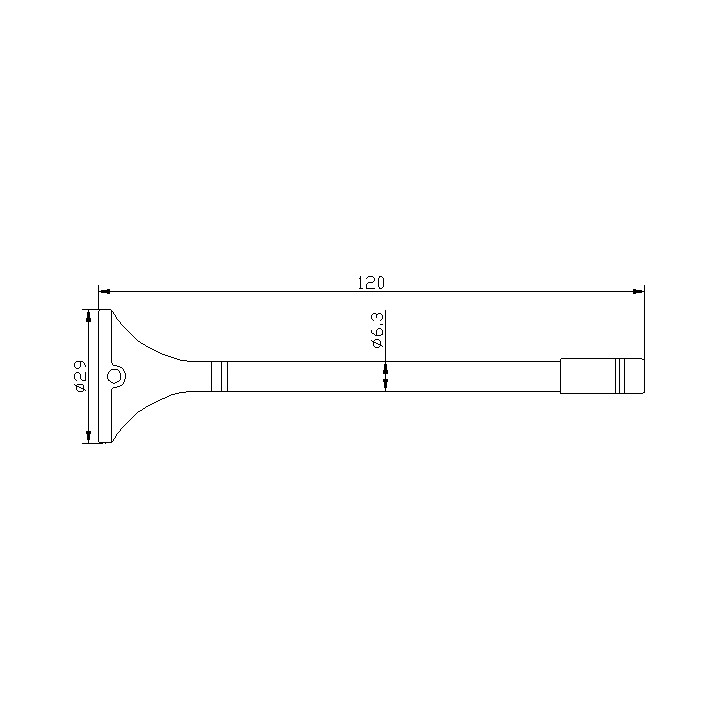

• Antenna height: 120 mm
• Base diameter: 29 mm

OFFER DETAILS:

• new product,
• the offer applies to 1 piece.

face="Arial"> In If you need to connect an antenna to the RF module with a connector, U.FL or MHF4 you will find in our offer connection pigtails:
