2.4GHz 5.8GHz Dual Band 12dBi SMA WiFi Antenna
Brutto:
zł35.38
(zł35.38 szt.)
Netto: 28.77 PLN
Time of delivery 1-2 work days
Price Guarantee
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.
There is no other way to reserve products
Antenna WiFi 2.4GHz 5.8GHz Dual Band 12 dBi SMA plug
REMARK:
This antenna IS NOT DESIGNED FOR WiFi NETWORK DEVICES - router, network card, access point
!!! please verify your slot on the device with the photo !!!
In order for the antenna to work with WiFi network devices (routers, access points) they must be equipped with an SMA-RP plug.
USE:
- smart home,
- garage door control systems,
- alalrm detectors,
- Camera
- Drones
- remote-controlled devices,
- temperature controllers,
- radiolines,
- telemetry
- and others.
Leading the antenna outside the device housing or room significantly improves the range and stability of data transmission.
SPECIFICATION:
- Frequency: 2.4...2.483GHz, 5.150...5.875GHz,
- Antenna gain: 12 dBi, Omni-directional - total for two bands
- Impedance: 50 Ω,
- Polarization: linear,
- Operating temperature: -40...85 °C,
- Mounting: connectors,
- Connector type: SMA plug,

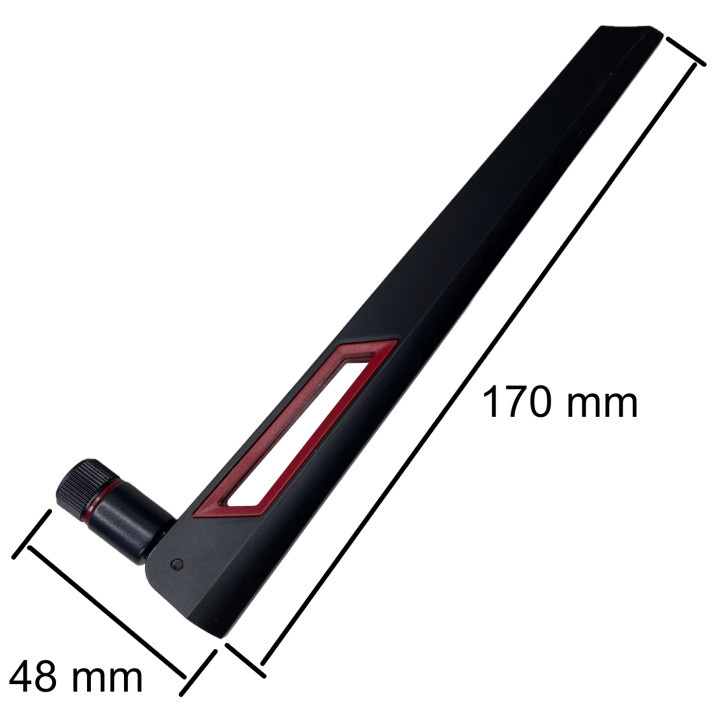

- Antenna total length : 195 mm,
- Antenna length to hinge: 170 mm,
OFFER DETAILS:
- new product,
- the offer applies to 1 pc.
If you need to connect the antenna to the RF module connector, U.FL or MHF4 you will find in our offer connection pigtails:
- Pigtail U.FL (IPEX) - SMA FEMALE 20cm
- Pigtail MHF4 (IPEX) - SMA FEMALE 20cm
- Pigtail MHF4 (IPEX) - SMA FEMALE 30cm
