    SMA plug connector for RF0.81 / RF1.13 cable
    search
    • SMA plug connector for RF0.81 / RF1.13 cable
    • SMA plug connector for RF0.81 / RF1.13 cable
    • SMA plug connector for RF0.81 / RF1.13 cable

    SMA plug connector for RF0.81 / RF1.13 cable

    Brutto: zł8.03
    Netto: 6.53 PLN
    Time of delivery 1-2 work days
    Price Guarantee

    Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.

    To pay for the purchase of a product in excess of its current status, we will provide you with:

    - product reservation and guarantee,
    - a guarantee of the price from the date of payment of the order.
    There is no other way to reserve products
    help_outlineAsk about product
    SMA plug connector for RF0.81 / RF1.13 cable

    SMA plug connector for RF0.81 / RF1.13 cable

    I accept privacy policy rules

    account_circleSend to a friend
    SMA plug connector for RF0.81 / RF1.13 cable

    SMA plug connector for RF0.81 / RF1.13 cable

    I accept privacy policy rules

    done   Product in permanent offer.
    In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.
       In stock   720 Items
    Quantity



    Security policy



    Delivery policy



    Return policy

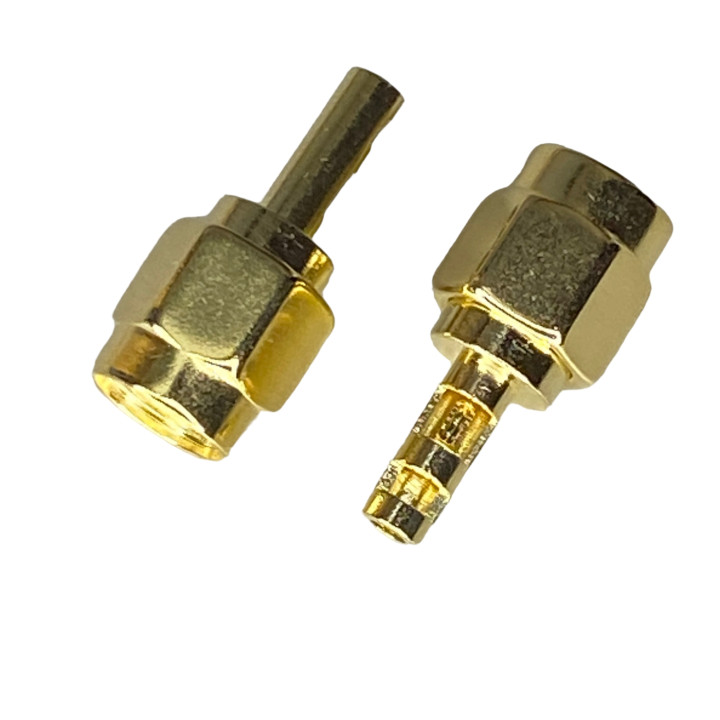

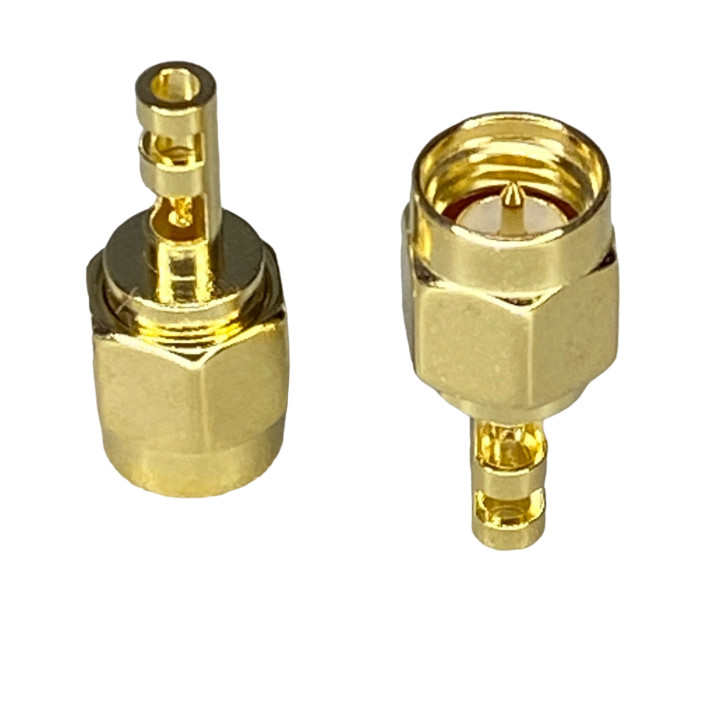

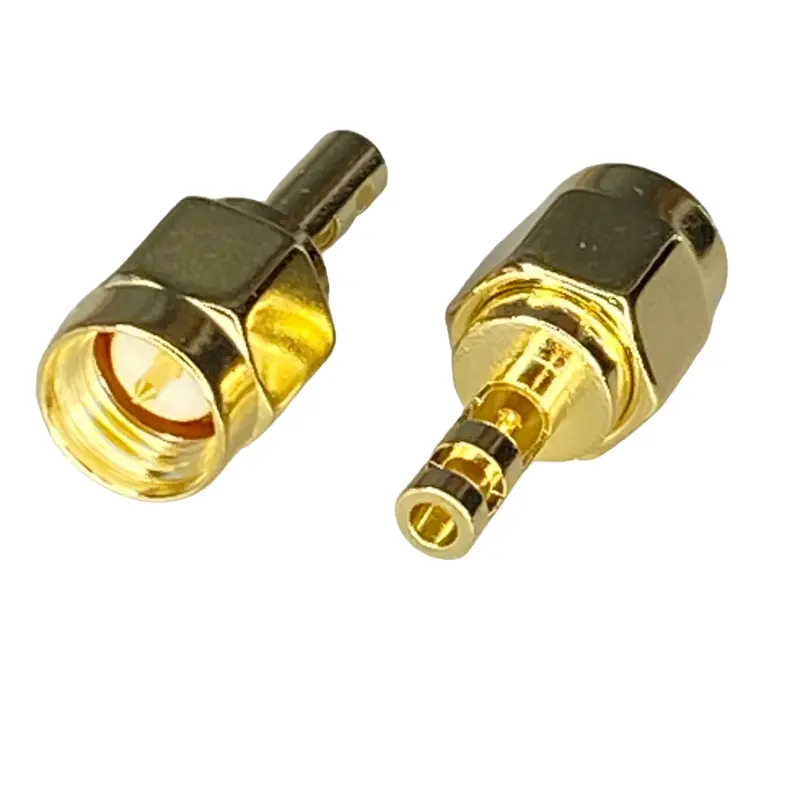

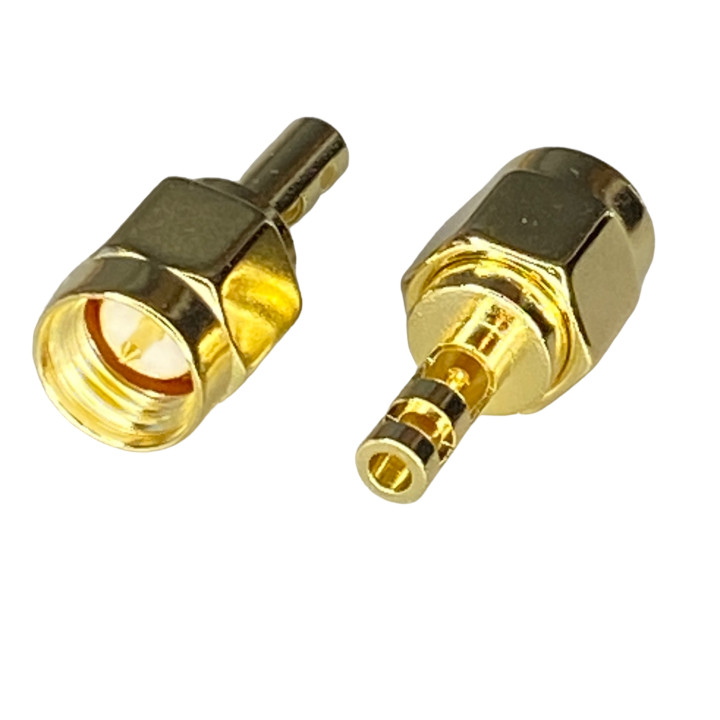

    SMA plug connector RF0.81 / RF1.13 cable soldered - size="4">assembly without using a crimping tool!!!

    The connector has a fixed PIN with a soldering window.

    The innovative solution offers a number of benefits:

    • simpler and faster installation,
    • significantly reduces the risk of the PIN shorting with the housing when "yanked out" cable due to its retraction.
    • significantly reduces the risk of shorting the PIN to the housing when installing the PIN due to excess price when soldering the signal wire
    • it is impossible to withdraw the PIN

    SMA type high frequency coaxial connector intended for operation in antenna and microwave installations.

    SPECIFICATION:

    • Connector type: SMA plug
    • Wave impedance: 50Ω
    • Frequency operation: 12.4 GHz
    • Orientation spatial cable connectors: easy
    • Assembly electric: screen soldered, pin soldered
    • Covering contact: gold-plated
    • Assembly mechanical: on cable
    • Type cable: RF0.81 / RF1.13 / RF1.37
    ZL SMA-WT/SOL
    720 Items

    Data sheet

    Złącze
    SMA
    Kabel
    RF0.81 , RF1.13
    Rabat
    NIE
    Orientacja
    STRAIGHT
