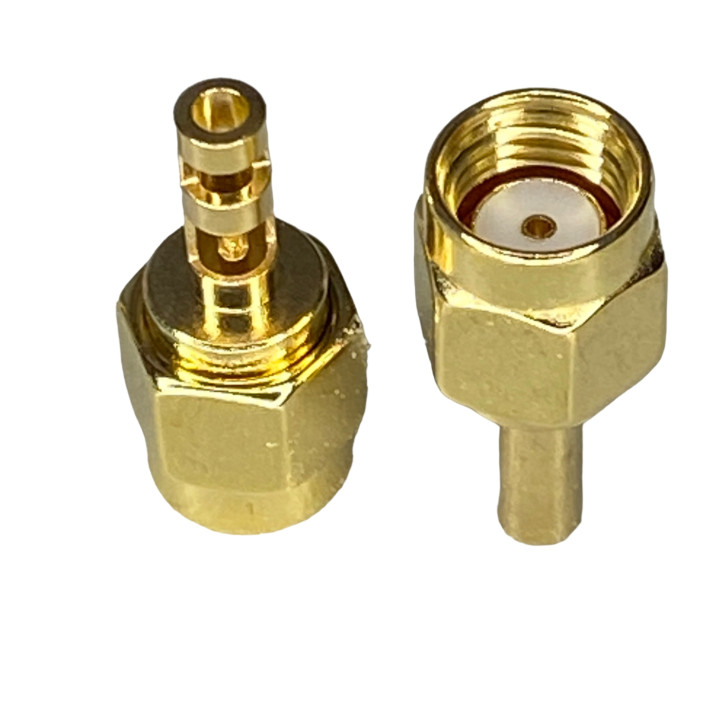

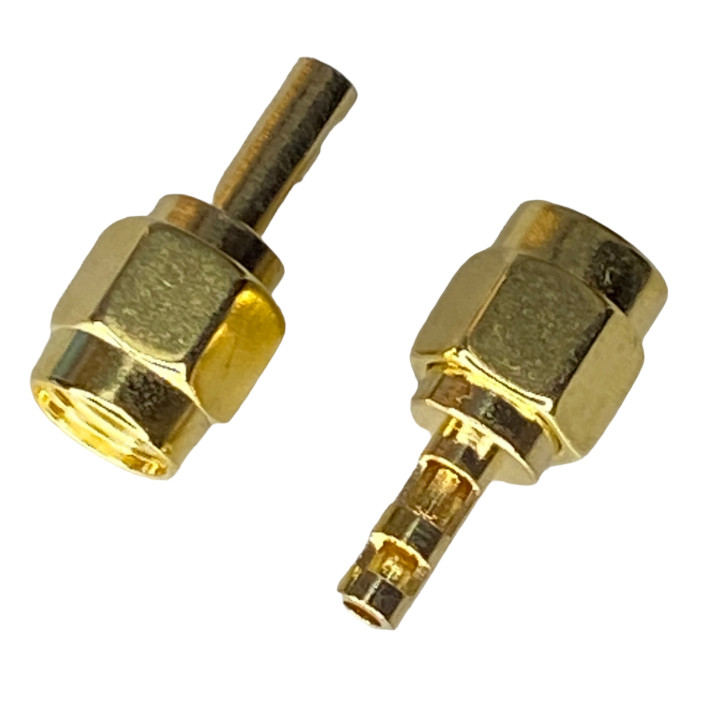

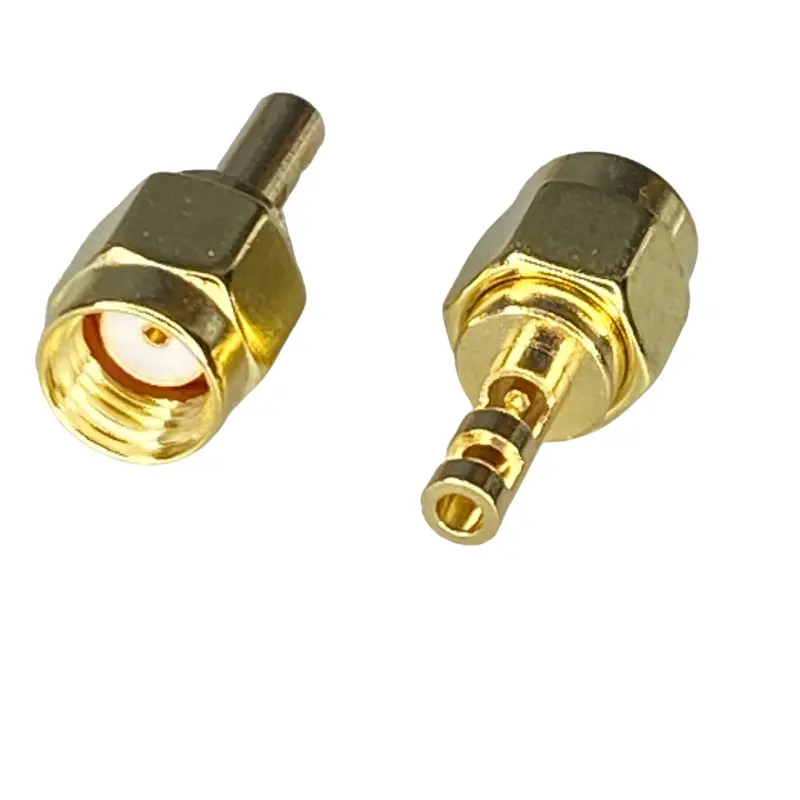

SMA RP plug connector for RF0.81 / RF1.13 cable
Brutto:
zł9.20
Netto: 7.48 PLN
Time of delivery 1-2 work days
Price Guarantee
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.
There is no other way to reserve products
SMA RPna plug connector RF0.81 / RF1.13 cable soldered - size="4">assembly without using a crimping tool!!!
The connector has a fixed PIN with a soldering window.
The innovative solution offers a number of benefits:
- simpler and faster installation,
- significantly reduces the risk of the PIN shorting with the housing when "yanked out" cable due to its retraction.
- significantly reduces the risk of shorting the PIN to the housing when installing the PIN due to excess price when soldering the signal wire
- it is impossible to withdraw the PIN
SMA type high frequency coaxial connector intended for operation in antenna and microwave installations.
SPECIFICATION:
- Connector type: SMA plug
- Connector type: Reverse Pin
- Wave impedance: 50Ω
- Frequency operation: 12.4 GHz
- Orientation spatial cable connectors: easy
- Assembly electric: screen soldered, pin soldered
- Covering contact: gold-plated
- Assembly mechanical: on cable
- Type cable: RF0.81 / RF1.13 / RF1.37
ZL RPSMA-M/SOL1.13
399 Items
Data sheet
- Złącze 1
- SMA male
- Złącze
- RP SMA
- Kabel
- RF0.81,RF1.13,
- Rabat
- NIE
- Orientacja
- STRAIGHT
