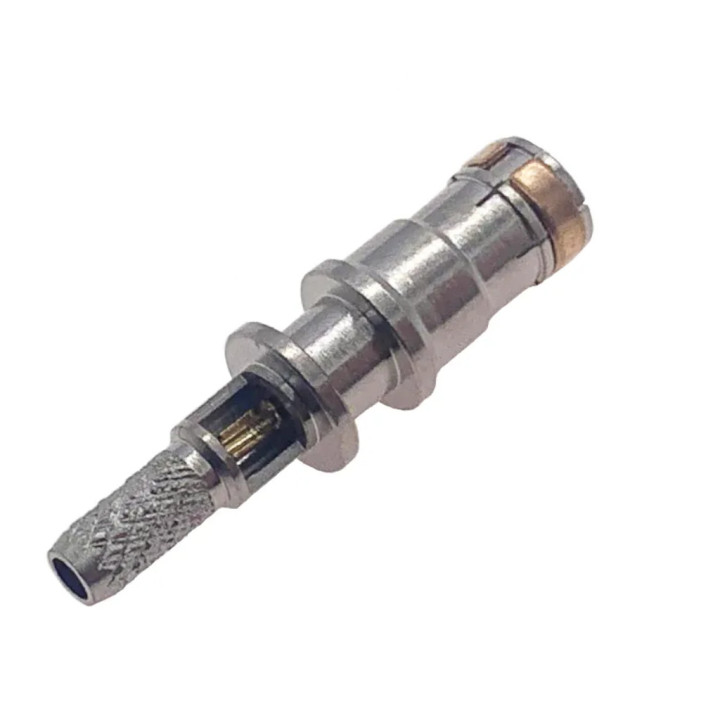

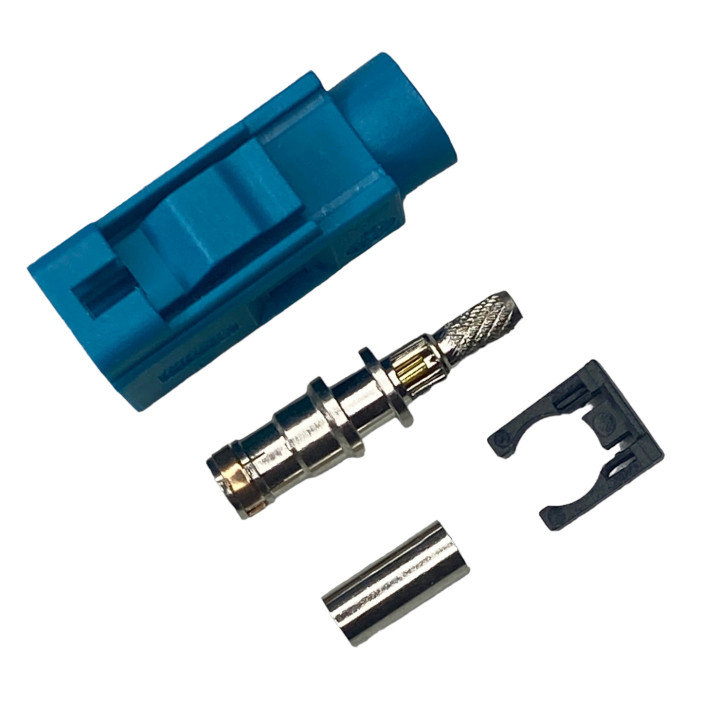

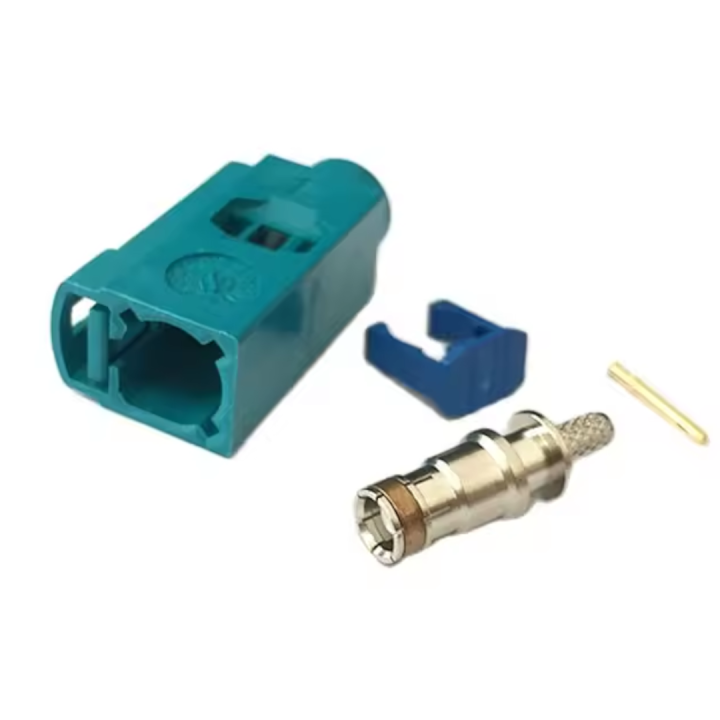

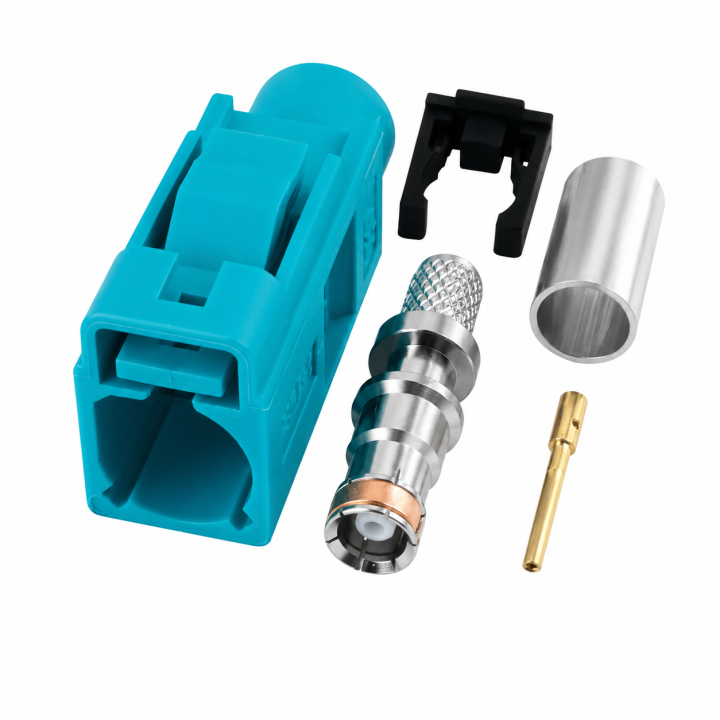

SMB FAKRA Female Connector on the cable RG58, LMR195 CODE-Z .
High Frequency Coaxial Connector SMB is additionally equipped with a plastic cover, which polarizes (encodes) the connector according to the industry standard FAKRA.
The FAKRA standard was created mainly for the needs of the automotive industry and technologies used in it: high frequency signals GPS, GSM, radio (AM, FM, DAB) which does not limit the use of connectors in other applications.
face="Arial">
TECHNICAL SPECIFICATIONS:
Connector type: FAKRA II SMB Type: concentric face="Arial">Connector: female straight socket Wave impedance: 50ohm Maximum operating voltage: 335V Cable type: RG58, LMR195 Operating temperature: -40°C ~ 105°C Color: Sea Blue (Color Coding of the Cover) ) Polarization: coding Z ( CODE-Z - Water Blue ) - neutral coding matches all codes Spatial orientation: simple Electrical assembly: pin soldered, crimped sleeve
The FAKRA standard distinguishes three mechanical keys coded with large letters, which are associated with color coding, which allows for easy Identification
(letters A - Black, B - Cream, C - Navy Blue, D - Purple, E - Green Leaf, F - Brown, G - Gray, H - Pink I - Beige, K - Curry, L - Carmine, M - Orange, N - Green, Z - Sea blue).
The FAKRA standard provides for one neutral key - UNIVERSAL Z - Blue sea , which can be replaced coding:
A - Black, B - Cream, C - Navy blue, D - Purple, E - Green leaf, F - Brown, G - Gray, H - Pink I - Beige, K - Curry, L - Carmine, M - Orange, N - Green
