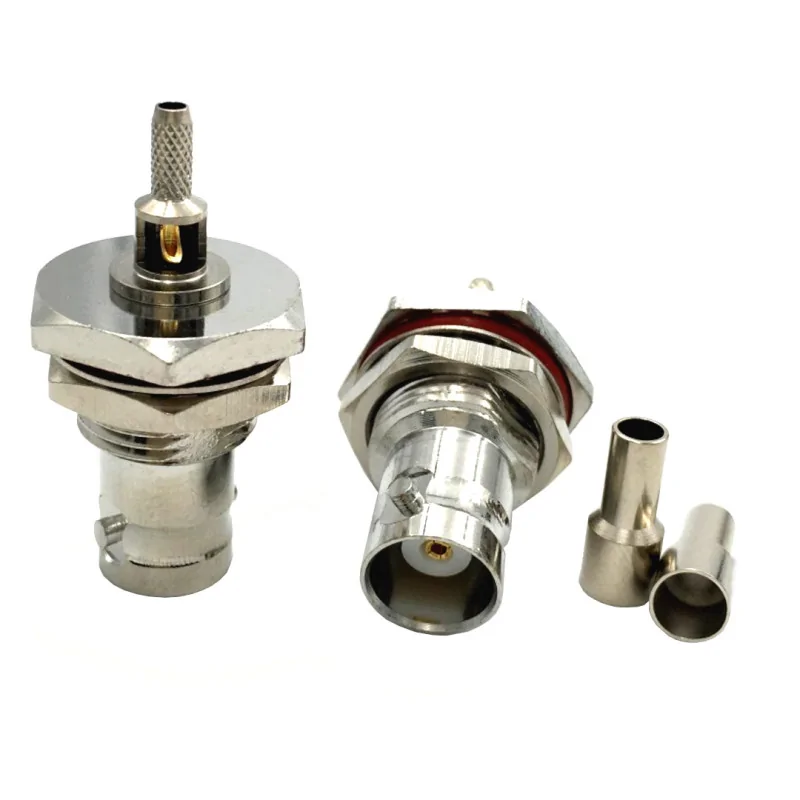

BNC socket connector for RG174 HQ cable to housing

BNC socket connector for RG174 cable crimped TO HOUSING

The connector has a fixed PIN with a soldering window.

The innovative solution offers a number of benefits:

• simpler and faster assembly,
• significantly reduces the risk of the PIN shorting with the housing when "pulled out" cable due to its retraction.
• significantly reduces the risk of short-circuiting the PIN with the housing when mounting the PIN due to the excess price when soldering the signal wire
• it is impossible to withdraw the PIN

4

SPECIFICATION:

• Connector type: BNC socket
• Connector type: female
• Wave impedance: 50Ω
• Orientation spatial cable connector: easy
• Installation electric: screen crimped, soldered pin
• Coverage contact: gold plated
• Installation mechanical: for cable to casings
• Type cable: RG174, LMR100, RG188, RG188(A), RG316 and others

SPECIAL SIGNAL PIN SOLDERING WINDOW GEO

Additional information about offer:

• The offer applies to one piece of the product.
• The photo with several products is intended to show at the same time product presentations from several angles.
