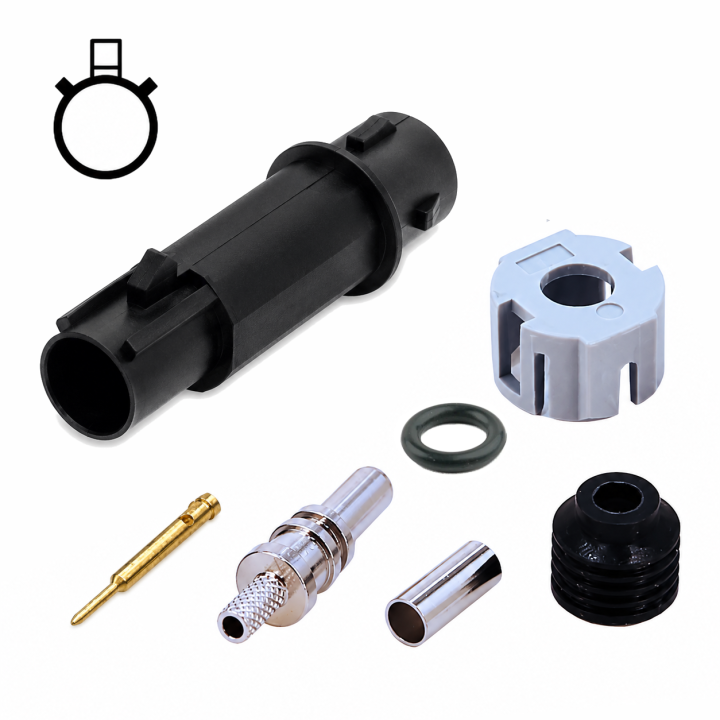

FAKRA plug RG316 CODE-A straight waterproof

FAKRA connector straight plug for RG316 Code-A cable, waterproof.

High Frequency Coaxial Connectors SMB is additionally equipped with a plastic cover, which polarizes (encodes) the connector according to the industry standard FAKRA.

The FAKRA standard was created mainly for the needs of the automotive industry and technologies used in it: high frequency signals GPS, GSM, radio (AM, FM, DAB) which does not limit the use of connectors in other applications.

TECHNICAL SPECIFICATIONS:

• Connector type: FAKRA II
• Type: concentric
• Connector: plug
• Wave impedance: concentric
• Working frequency max.: 6GHz
• Maximum operating voltage: 335V
• Cable type: RG174, RG316
• Operating temperature: -40°C ~ 105°C

The FAKRA standard distinguishes three mechanical keys coded with large letters, which are related to color coding
(letters A - Black, B - Cream, C - Navy blue, D - Purple, E - Green leaf, F - Brown, G - Gray, H - Pink I - Beige, K - Curry, L - Carmine, M - Orange, N - Green, Z - Blue sea ).

Codes, thus enabling easy identification and unique mechanical key coding which prevents mismatching. In The FAKRA standard provides for one neutral key.
