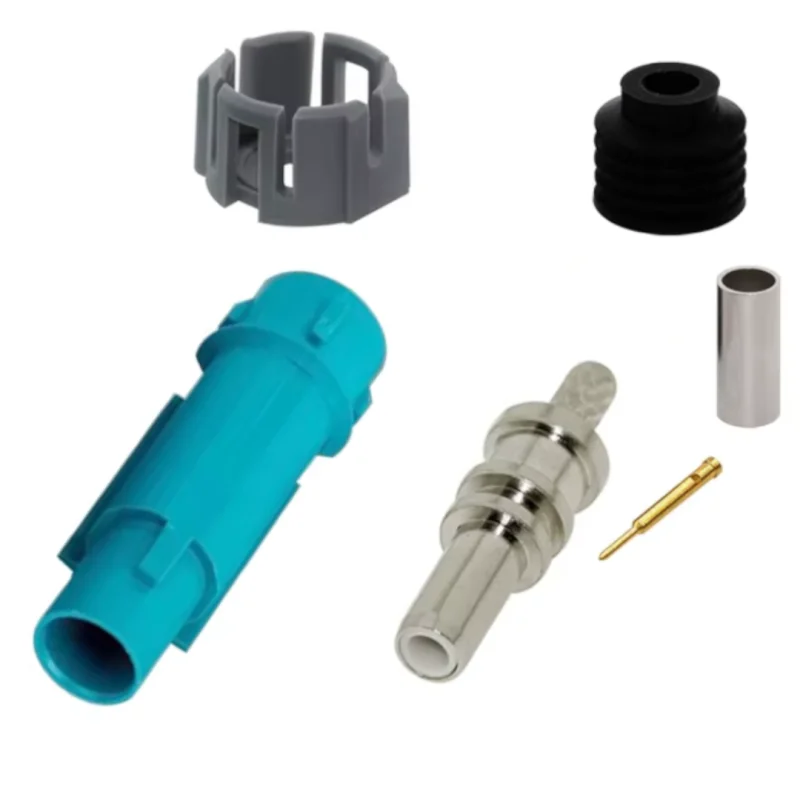

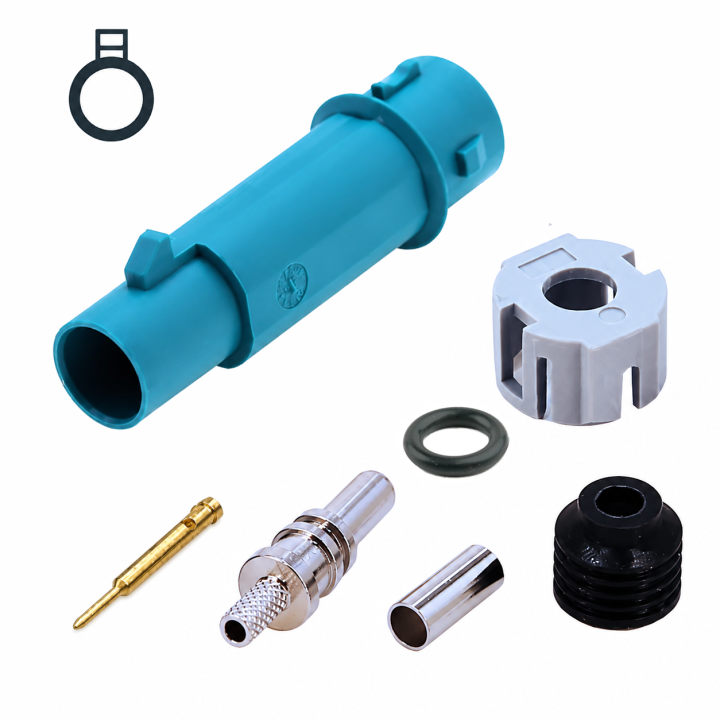

FAKRA connector straight plug for RG316 Code-Z cable, waterproof.
High Frequency Coaxial Connectors SMB is additionally equipped with a plastic cover, which polarizes (encodes) the connector according to the industry standard FAKRA.
The FAKRA standard was created mainly for the needs of the automotive industry and technologies used in it: high frequency signals GPS, GSM, radio (AM, FM, DAB) which does not limit the use of connectors in other applications.
TECHNICAL SPECIFICATIONS:
Connector type: FAKRA II Type: concentric Connector: plug Wave impedance: concentric Working frequency max.: 6GHz Maximum operating voltage: 335V Cable type: RG174, RG316 Operating temperature: -40°C ~ 105°C Color: Sea Blue (Color Coding of the Cover) ) Polarization: Z coding (Z - Water Blue) - neutral coding fits all codes Spatial orientation: easy Electrical assembly: pin soldered, crimped sleeve Additional parameters: waterproof
The FAKRA standard distinguishes three mechanical keys coded with large letters, which are related to color coding
(letters A - Black, B - Cream, C - Navy blue, D - Purple, E - Green leaf, F - Brown, G - Gray, H - Pink I - Beige, K - Curry, L - Carmine, M - Orange, N - Green, Z - Blue sea ).
Codes, thus enabling easy identification and unique mechanical key coding which prevents mismatching. In The FAKRA standard provides for one neutral key. face="Arial">
