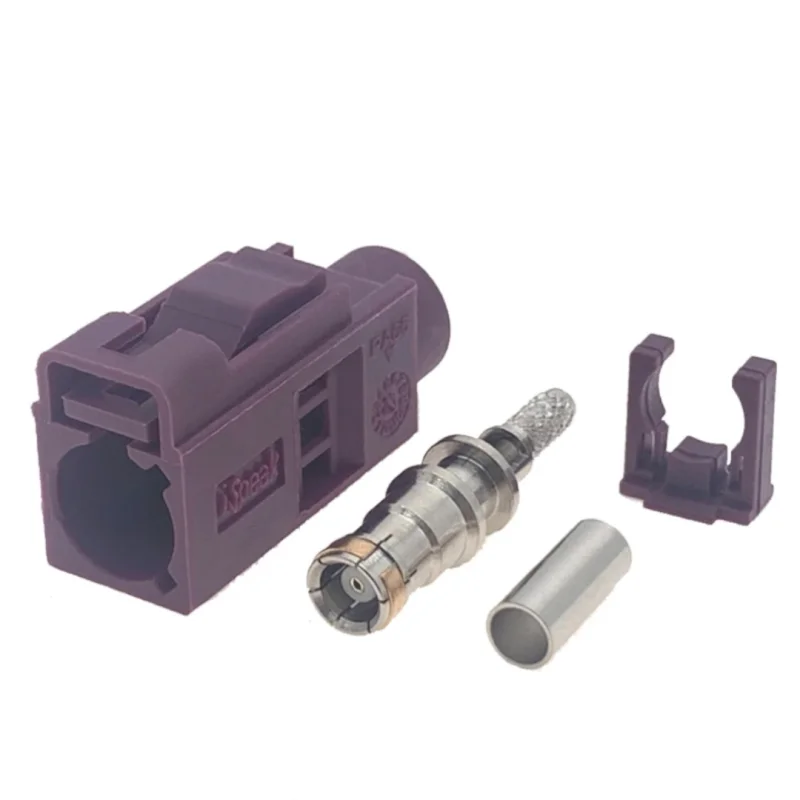

• FAKRA cable socket RG316 CODE-D STRAIGHT

FAKRA cable socket RG316 CODE-D STRAIGHT

Brutto: zł21.00
Netto: zł17.07
In stock: 245 pcs
Quantity Unit price You Save
6 zł20.37 zł3.78
10 zł19.74 zł12.60
11 zł19.74 zł13.86
21 zł19.74 zł26.46
25 zł19.11 zł47.25
31 zł19.11 zł58.59
51 zł17.85 zł160.65
100 zł17.43 zł357.00
200 zł16.80 zł840.00
300 zł16.17 zł1,449.00
400 zł15.33 zł2,268.00
500 zł14.70 zł3,150.00
Czas wysyłki 1-2 dni robocze

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Gwarancja ceny

W związku z dużą ilością zamówień włączyliśmy opcję zamawiania ilości produktów powyżej dostępnego stanu w magazynie.

Opłacenie zakupu produktu powyżej aktualnego stanu zapewni Państwu:

- rezerwację i gwarancję dostawy produktu,
- gwarancję ceny z dnia z opłacenia zamówienia.
Nie ma innej formy rezerwacji produktów
done   Produkt w stałej ofercie.
W przypadku chwilowego braku lub zapotrzebowania na większą ilość czas dostawy 5-10 dni roboczych.

SMB FAKRA Female Connector for RG316 CODE-D cable.

High Frequency Coaxial Connector SMB is additionally equipped with a plastic cover, which polarizes (encodes) the connector according to the industry standard FAKRA.

The FAKRA standard was created mainly for the needs of the automotive industry and technologies used in it: high frequency signals GPS, GSM, radio (AM, FM, DAB) which does not limit the use of connectors in other applications.

face="Arial">

TECHNICAL SPECIFICATIONS:

Connector type: FAKRA II SMB Type: concentric face="Arial">Connector: female straight socket Wave impedance: 50ohm Maximum operating voltage: 335V Cable type: RG174, RG316 Operating temperature: -40°C ~ 105°C Color: Sea Blue (Color Coding of the Cover) ) Polarization: coding D ( CODE-D - VIOLET ) Spatial orientation: simple Electrical assembly: pin soldered, crimped sleeve


The FAKRA standard distinguishes thirteen mechanical keys coded with large letters, which are related to color coding.

(letters A - Black, B - Cream, C - Navy Blue, D - Purple, E - Green Leaf, F - Brown, G - Gray ,H - Pink I - Beige, K - Curry, L - Carmine, M - Orange, N - Green, Z - Blue sea ).

The FAKRA standard provides for one neutral key - UNIVERSAL Z - Blue sea , which can be replaced coding:
A - Black, B - Cream, C - Navy blue, D - Purple, E - Green leaf, F - Brown, G - Gray, H - Pink I - Beige, K - Curry, L - Carmine, M - Orange, N - Green

PRODUCT NOTE:

  • sometimes the color may differ in shade from the declared one, but always the description includes the execution code CODE-x



  • Brand
    RF CONNECTORS
  • Reference
    ZL FAK-FS CODE-D
  • In stock
    245 Items
  • Condition
    New
  • EAN13
    5905778412718
