    FAKRA plug for RG316 CODE-I cable, straight
    search
    • FAKRA plug for RG316 CODE-I cable, straight

    FAKRA plug for RG316 CODE-I cable, straight

    Brutto: zł17.10
    Netto: 13.9 PLN
    Time of delivery 1-2 work days
    Price Guarantee

    Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.

    To pay for the purchase of a product in excess of its current status, we will provide you with:

    - product reservation and guarantee,
    - a guarantee of the price from the date of payment of the order.
    There is no other way to reserve products
    QuantityUnit priceYou saveTotal priceBuy
    1zł17.10-zł17.10
    6 zł16.59 Up to zł3.08 zł99.52
    10 zł16.07 Up to zł10.26 zł160.74
    21 zł15.56 Up to zł32.32 zł326.78
    31 zł15.05 Up to zł63.61 zł466.49
    51 zł14.53 Up to zł130.81 zł741.28
    100 zł14.19 Up to zł290.70 zł1,419.30
    200 zł13.68 Up to zł684.00 zł2,736.00
    300 zł13.17 Up to zł1,179.90 zł3,950.10
    400 zł12.48 Up to zł1,846.80 zł4,993.20
    500 zł11.97 Up to zł2,565.00 zł5,985.00
    help_outlineAsk about product
    FAKRA plug for RG316 CODE-I cable, straight

    FAKRA plug for RG316 CODE-I cable, straight

    I accept privacy policy rules

    Volume discounts

    QuantityUnit priceYou Save
    6zł17.10zł3.08
    10zł17.10zł10.26
    21zł17.10zł32.32
    31zł17.10zł63.61
    51zł17.10zł130.81
    100zł17.10zł290.70
    200zł17.10zł684.00
    300zł17.10zł1,179.90
    400zł17.10zł1,846.80
    500zł17.10zł2,565.00
    done   Product in permanent offer.
    In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.
       In stock   198 Items
    Quantity



    Security policy



    Delivery policy



    Return policy

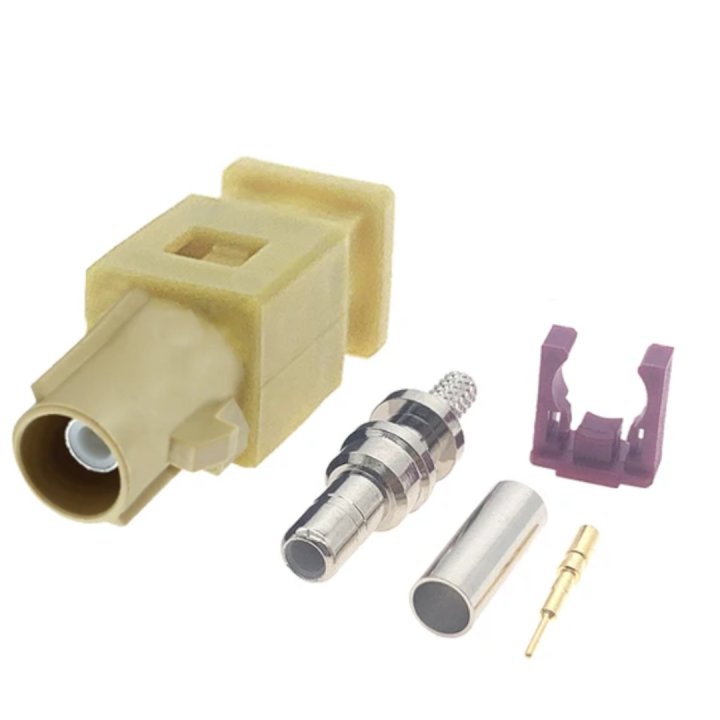

    FAKRA SMB male connector for RG316 cable Coding I.

    High frequency coaxial connectors SMB is additionally equipped with a plastic cover, which polarizes (encodes) the connector according to the industry standard FAKRA.

    The FAKRA standard was created mainly for the needs of the automotive industry technologies used: RF signals GPS, GSM, radio (AM, FM, DAB) which does not limit the use of connectors in other applications.

    TECHNICAL SPECIFICATIONS:

    • Manufacturer: MOLEX
    • Type connectors: FAKRA II SMB
    • Type: concentric
    • Connector: plug male
    • Wave impedance: concentric
    • Working frequency max.: concentric
    • Maximum operating voltage: 335V
    • Cable type: RG174, RG316
    • Operating temperature: -40°C ~ 105°C
    Color: sea blue (cover color coding ) Polarization: Z coding (I- BEIGE ) Spatial orientation: easy Electrical installation: pin soldered, crimped sleeve

    The FAKRA standard distinguishes thirteen mechanical keys coded with large letters, which are available related to color coding.
    (letters A - Black, B - Cream, C - Navy Blue, D - Violet, E - Green leaf ,F - Brown, G - Gray ,H - Pink I - Beige, K - Curry, L - Carmine, M - Orange, N - Green, Z - blue sea).

    Codes, thus enabling easy identification and unique coding with a mechanical key which prevents incorrect matching. IN The FAKRA standard provides for one neutral key.

    RF CONNECTORS
    ZL FAK-MS CODE-I
    198 Items

    Data sheet

    Złącze
    FAKRA
    Kabel
    RG174
    Rabat
    TAK
    New

    16 other products in the same category:
