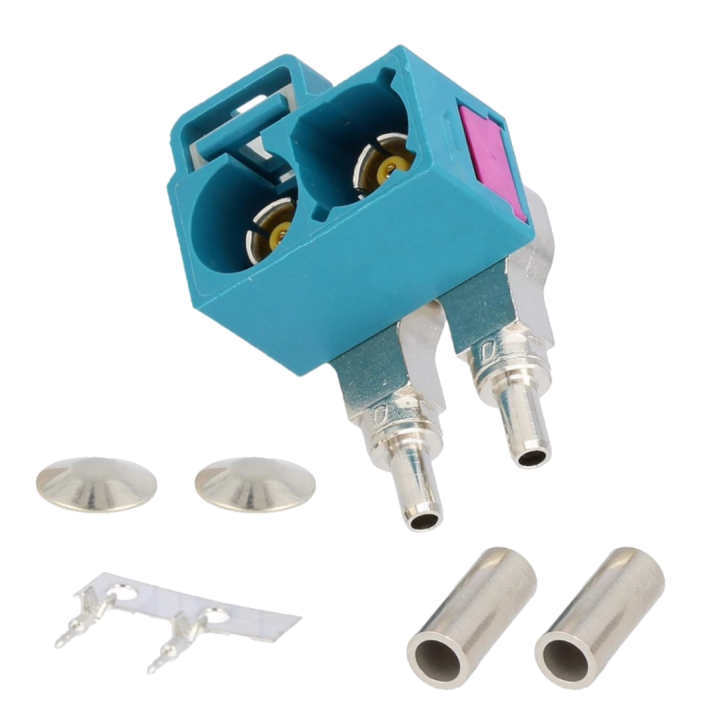

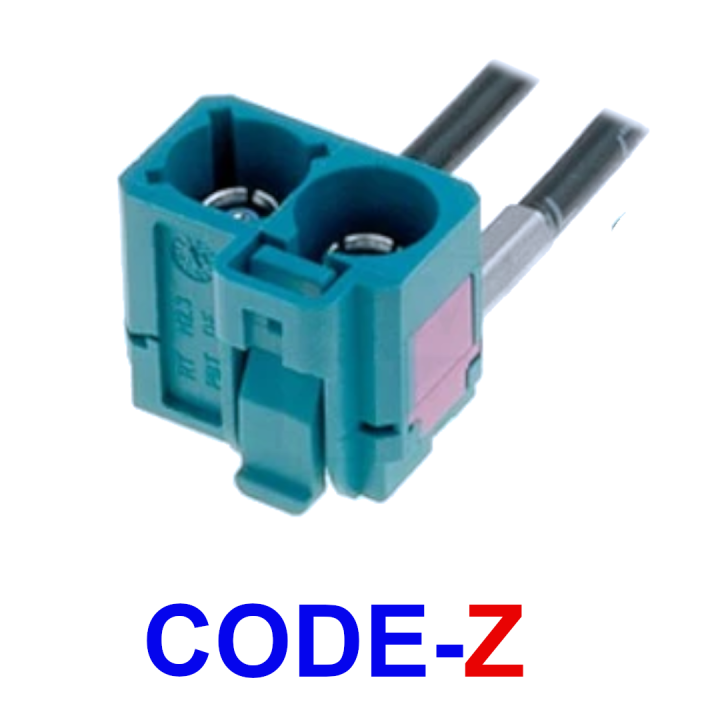

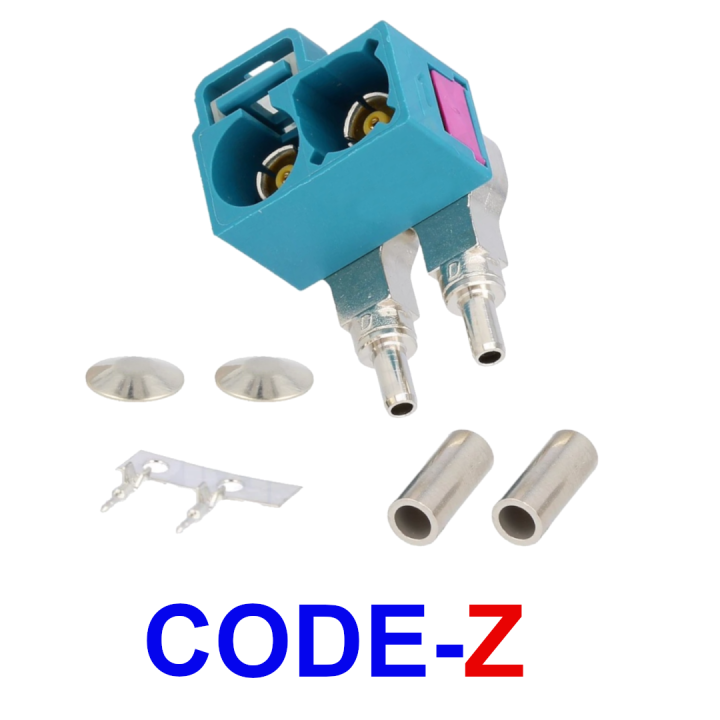

FAKRA 2 * RG174 CODE-Z ANGLED cable socket

Double female connector SMB FAKRA for RG174 CODE-Z cable, angled.

High Frequency Coaxial Connector SMB is additionally equipped with a plastic cover, which polarizes (encodes) the connector according to the industry standard FAKRA.

The FAKRA standard was created mainly for the needs of the automotive industry and technologies used in it: high frequency signals GPS, GSM, radio (AM, FM, DAB) which does not limit the use of connectors in other applications.

TECHNICAL SPECIFICATIONS:

• Connector type: FAKRA II SMB
• Type: concentric
• Connector: Double female socket
• Wave impedance: 50ohm
• Maximum operating voltage: 335V
• Cable type: RG174, RG316
• Operating temperature: -40°C ~ 105°C

The FAKRA standard distinguishes three mechanical keys coded with large letters, which are associated with color coding, which allows for easy Identification

(letters A - Black, B - Cream, C - Navy Blue, D - Purple, E - Green Leaf, F - Brown, G - Gray, H - Pink I - Beige, K - Curry, L - Carmine, M - Orange, N - Green, Z - Sea blue).

The FAKRA standard provides for one neutral key - UNIVERSAL Z - Blue sea , which can be replaced coding:
A - Black, B - Cream, C - Navy blue, D - Purple, E - Green leaf, F - Brown, G - Gray, H - Pink I - Beige, K - Curry, L - Carmine, M - Orange, N - Green

PRODUCT NOTE:

• sometimes the color may differ in shade from the declared one, but always the description includes the execution code CODE-x
