SMA-RP socket for housing with RG174 seal
search
  • SMA-RP socket for housing with RG174 seal

SMA-RP socket for housing with RG174 seal

Brutto: zł20.20

(zł20.20 szt.)

Netto: 16.43 PLN
Czas wysyłki 1-2 dni robocze

Volume discounts

Quantity Unit price You Save
6 zł20.20 zł3.64
10 zł20.20 zł12.12
21 zł20.20 zł38.18
31 zł20.20 zł75.16
51 zł20.20 zł154.55
100 zł20.20 zł343.45
200 zł20.20 zł808.13
300 zł20.20 zł1,394.02
400 zł20.20 zł2,181.95
500 zł20.20 zł3,030.48
done   Product in permanent offer.
In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.
   In stock   28 Items
Quantity



Privacy Policy



Delivery of goods



Returns of goods

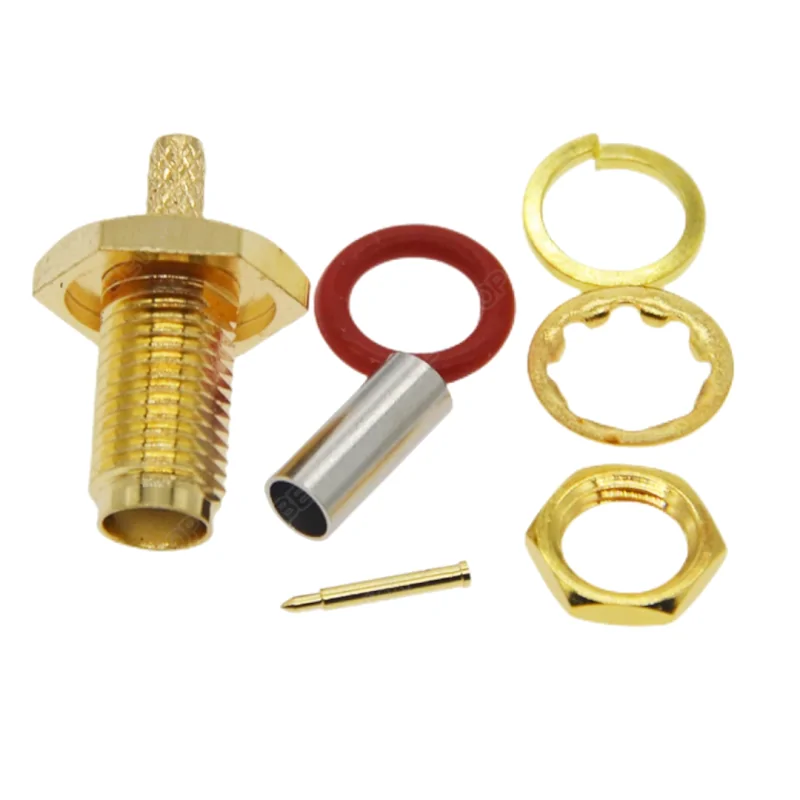

SMA-RP socket for STRAIGHT housing with gasket for RG174 cable

SMA type high-frequency coaxial connector designed for use in antenna and microwave installations.

SPECIFICATION:

  • Connector Type:SMA-RP Socket
  • Connector type: female
  • Wave impedance: 50ohm
  • Spatial orientation of the cable connector: straight
  • Electrical assembly: crimped screen, soldered pin
  • Contact plating: gold plated
  • Mechanical assembly: to the housing
  • Mounting hole diameter: 6mm
  • Socket with gasket

Additional information about the offer:

  • The offer applies to one piece of the product.
  • The purpose of a photo with multiple products is to present the product from several angles simultaneously.

RF CONNECTORS
ZL RPSMA-FCH-SEAL
28 Items

Data sheet

Złącze
RP SMA
Kabel
RG174,RG179,RG316,LMR100
Rabat
TAK
Orientacja
BULKHEAD
