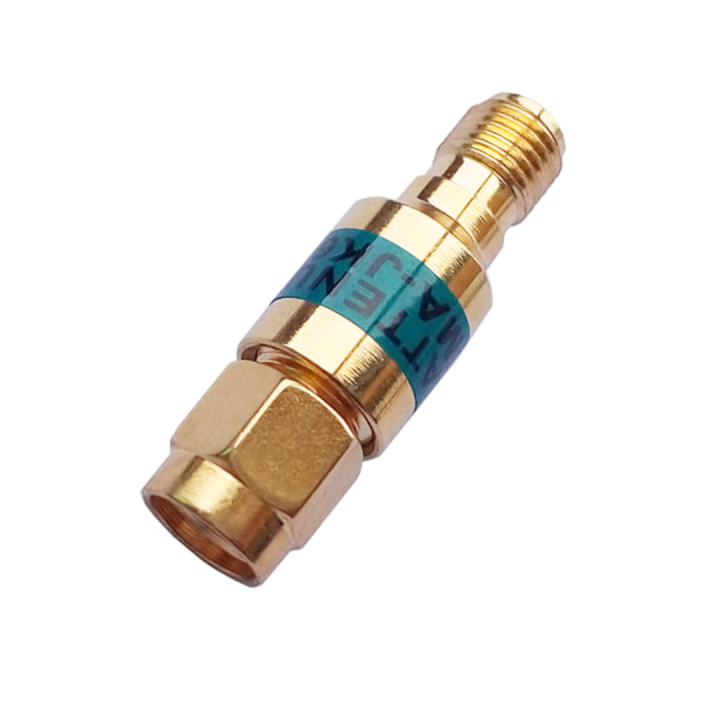

10dB attenuator COAXIAL SMA plug SMA socket 2W DC- 6GHz

RF attenuators are used in radio paths in telecommunications systems such as: WiFi networks, cellular networks, networks telemetry and many other related applications.

Their purpose is to adjust the RF signal level to the horizontal one. accepted by the device connected to the network.

TECHNICAL DATA:

Attenuation: 10dB / +/- 1dB Frequency range: DC-6GHz Standing Wave Ratio SWR: ≤ 1.20 face="Arial"> Wave impedance: 50Ω Connector 1 : SMA nest Connector 2 : SMA plug face="Arial"> Dimensions : diameter : 9mm Dimensions: length 30mm face="Arial"> Operating temperature: -55°C ~ 125° C

ADDITIONAL PRODUCT INFORMATION

Available attenuation values:

1dB.±0.5dB, face="Arial"> 3dB.±0.5dB, face="Arial"> 5dB.±0.5dB, face="Arial"> 8dB.±0.5dB, face="Arial"> 9dB.±0.5dB, face="Arial"> 10dB.±0.5dB, 15dB ± 1dB, 20dB ± 1dB, 25dB ± 1dB.

The offer applies to 1 piece.

Product also available in set.

RF CONNECTORS
ATT T1 SMA MF 10DB
