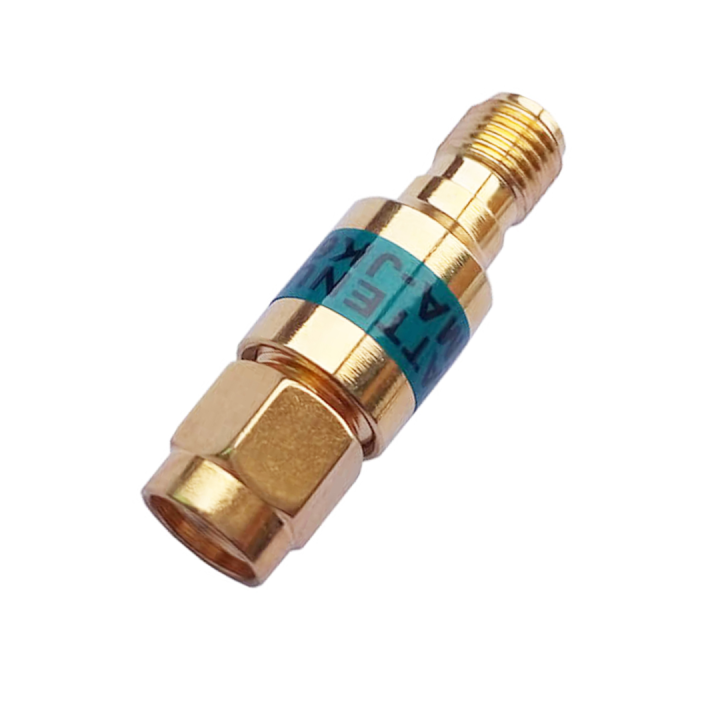

Attenuator 5dB DC - 6GHz COAXIAL SMA plug SMA gn V1
Brutto:
zł93.34
Netto: 75.89 PLN
Czas wysyłki 1-2 dni robocze
Attenuator 5dB COAXIAL SMA plug SMA socket 2W DC- 6GHz
RF attenuators are used in radio paths in telecommunications systems such as:
- WiFi networks,
- mobile networks,
- telemetry networks
- and many other related applications.
Their purpose is to adjust the RF signal level to that horizontally accepted by the device connected to the network.
TECHNICAL DATA:
- Attenuation: 5dB / +/- 0.5dB
- Frequency range: DC-6GHz
- Standing Wave Ratio SWR: ≤ 1.20
- Wave impedance: 50Ω
- Connector 1 : SMA socket
- Connector 2 : SMA plug
- Dimensions: diameter: 9mm Dimensions: length 30mm
- Operating temperature: -55°C ~ 125°C
ADDITIONAL PRODUCT INFORMATION
Available attenuation values:
1dB.±0.5dB, 3dB.±0.5dB, 5dB.±0.5dB, 8dB.±0.5dB, 9dB.±0.5dB, 10dB.±0.5dB, 15dB ± 1dB, 20dB ± 1dB, 25dB ± 1dB.
The offer applies to 1 piece.
The product is also available in a set.
