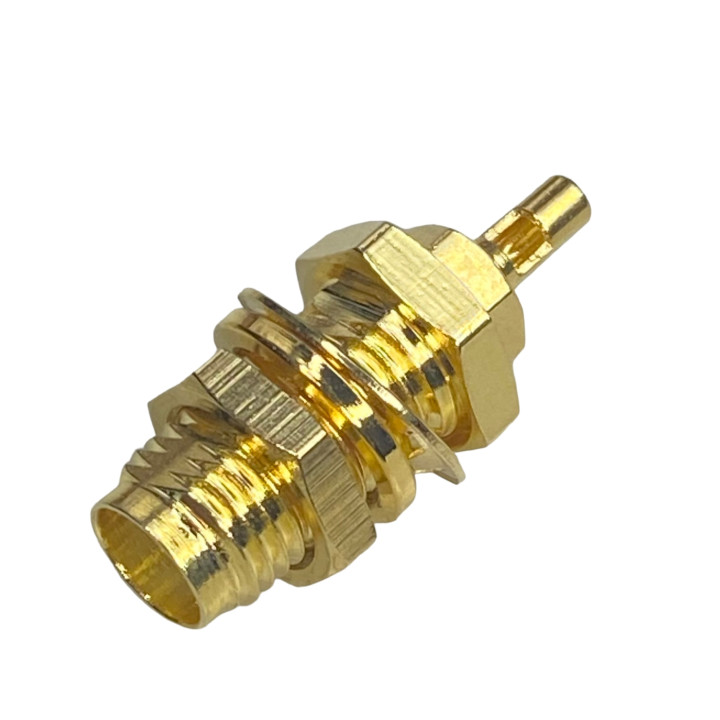

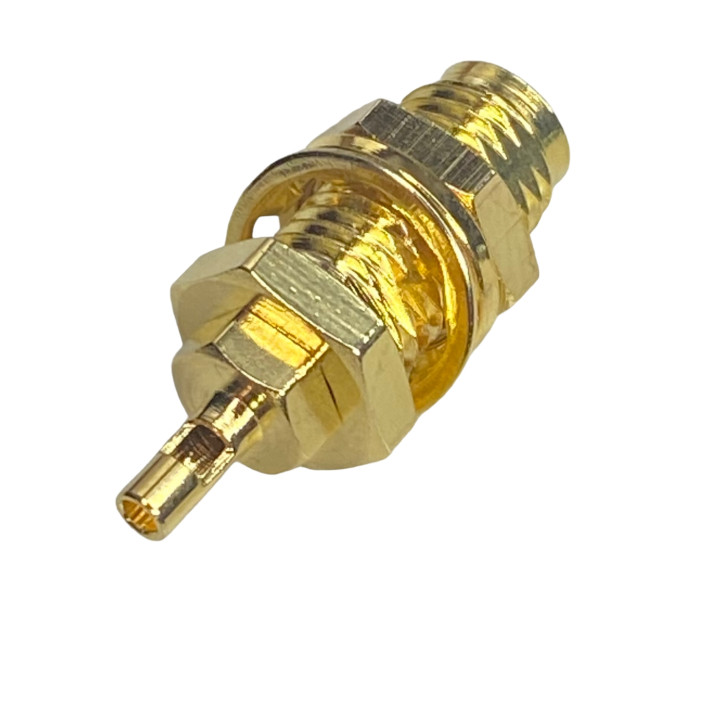

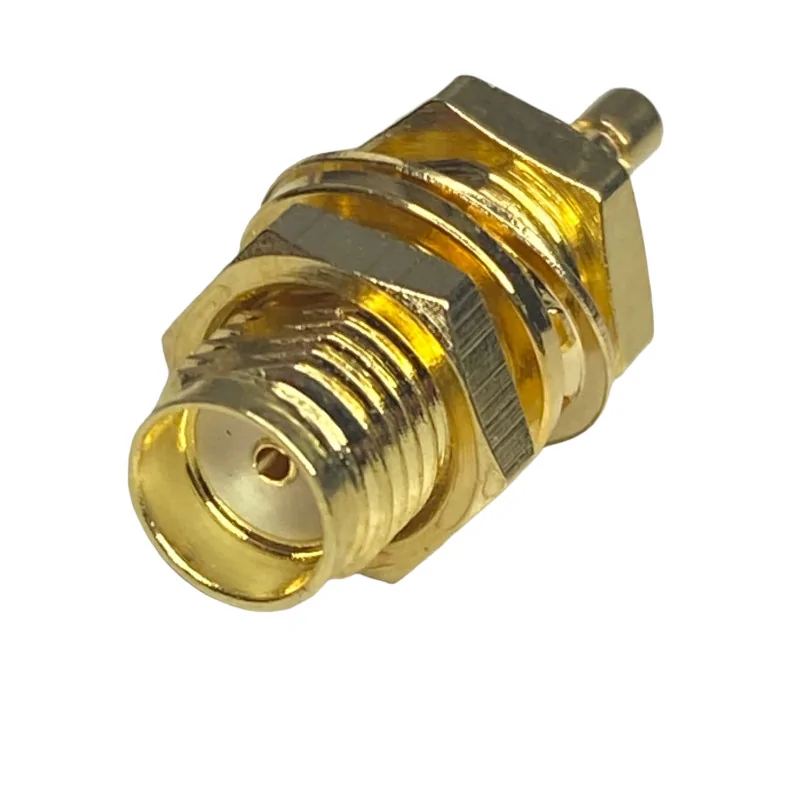

SMA socket connector on RF0.81 / RF1.13 cable soldered - assembly without using a crimping tool!!!
The connector has a fixed PIN with a soldering window.
The innovative solution offers a number of benefits:
- simpler and faster assembly,
- significantly reduces the risk of the PIN shorting with the housing when "pulled out" cable due to its retraction.
- significantly reduces the risk of short-circuiting the PIN with the housing when mounting the PIN due to the excess price when soldering the signal wire
- it is impossible to withdraw the PIN
SMA type high frequency coaxial connector designed for use in antenna and microwave installations.
SPECIFICATION:
- Connector type: SMA socket
- Connector Type: Reverse Pin
- Wave impedance: 50Ω
- Frequency working: 12.4 GHz
- Orientation spatial cable connector: straight
- Installation electrical: soldered screen, pin soldered
- Coverage contact: gold plated
- Type insulator: teflon
- Installation mechanical: cable
- Type cable: RF0.81 / RF1.13
Additional information about offer:
- The offer applies to one piece of the product.
- The photo with several products is intended to show at the same time product presentations from several angles.
