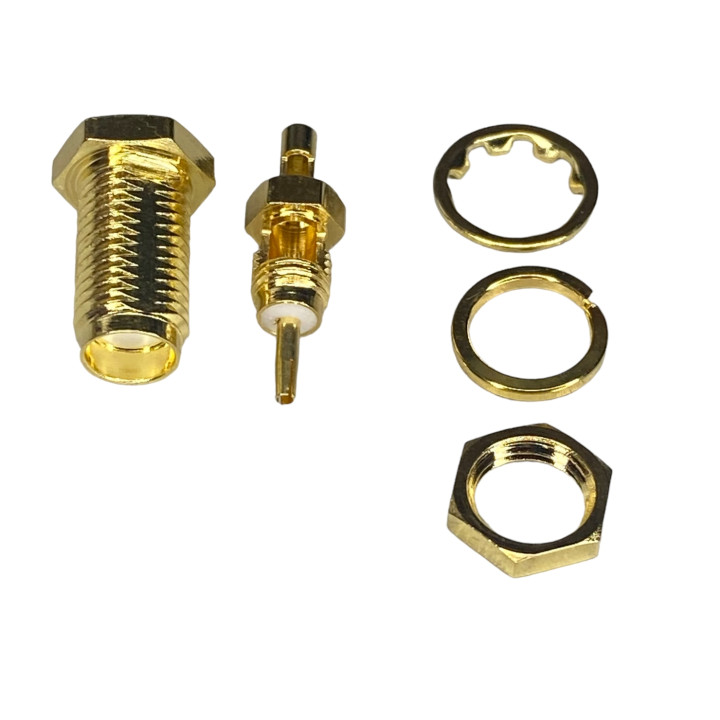

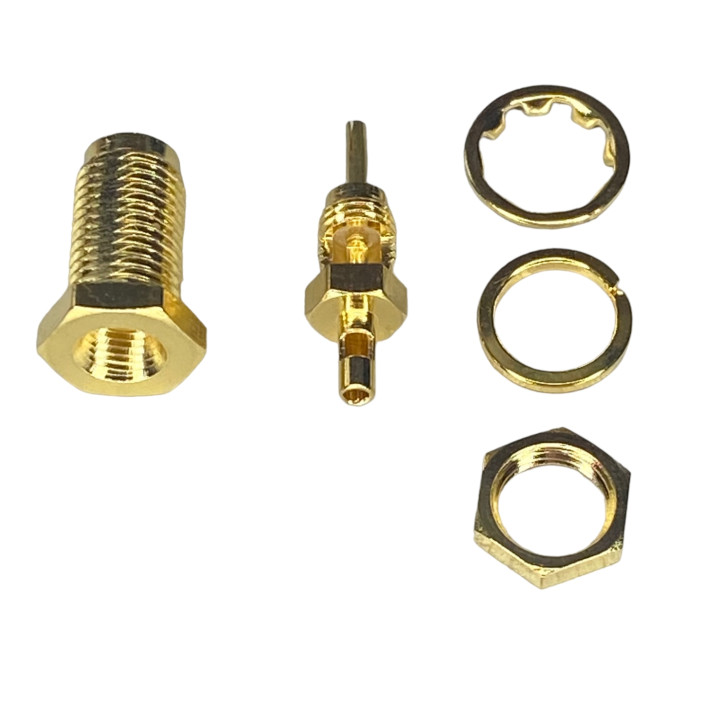

    SMA socket connector on RF0.81 / RF1.13 cable soldered - size="4">assembly without using a crimping tool!!!

    The connector has a fixed PIN with a soldering window.

    The innovative solution offers a number of benefits:

    • simpler and faster installation,
    • significantly reduces the risk of the PIN shorting with the housing when "yanked out" cable due to its retraction.
    • significantly reduces the risk of shorting the PIN to the housing when installing the PIN due to excess price when soldering the signal wire
    • it is impossible to withdraw the PIN

    SMA type high frequency coaxial connector intended for operation in antenna and microwave installations.

    SPECIFICATION:

    • Connector type: SMA socket
    • Connector type: Reverse Pin
    • Wave impedance: 50Ω
    • Frequency operation: 12.4 GHz
    • Orientation spatial cable connectors: straight
    • Assembly electrical: soldered screen, pin soldered
    • Covering contact: gold-plated
    • Type insulator: Teflon
    • Assembly mechanical: cable
    • Type cable: RF0.81 / RF1.13

    Additional information about offer:

    • The offer applies to one piece of product.
    • A photo with several products is intended to be used simultaneously product presentations from several angles.





    RF CONNECTORS
    ZL SMA-GN/SOL
    957 Items

    Data sheet

    Złącze
    SMA
    Kabel
    RF0.81 , RF1.13
    Rabat
    TAK
    Orientacja
    STRAIGHT
