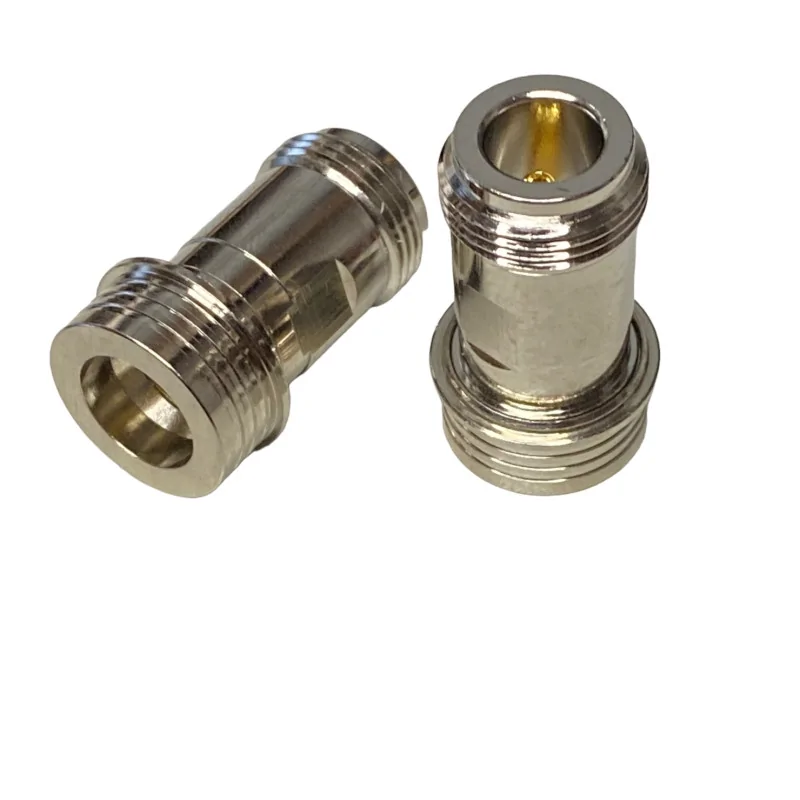

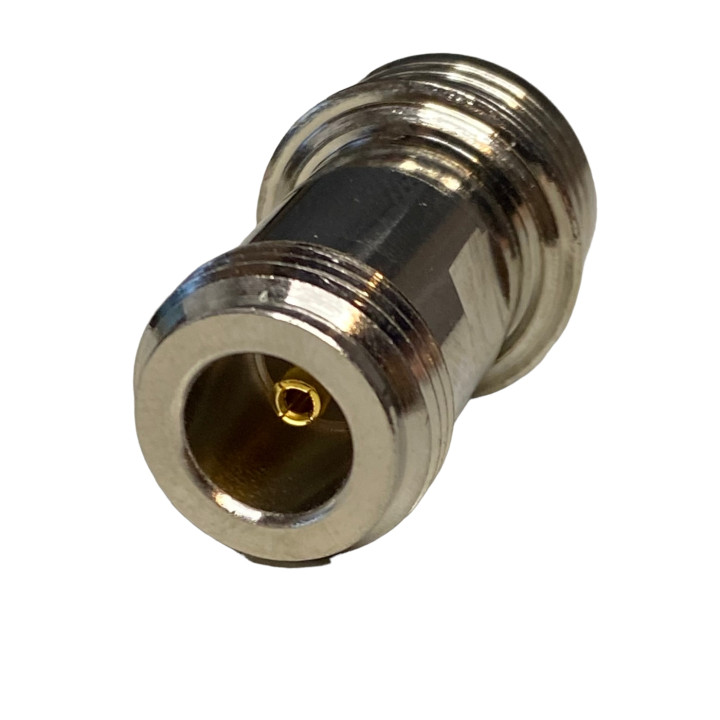

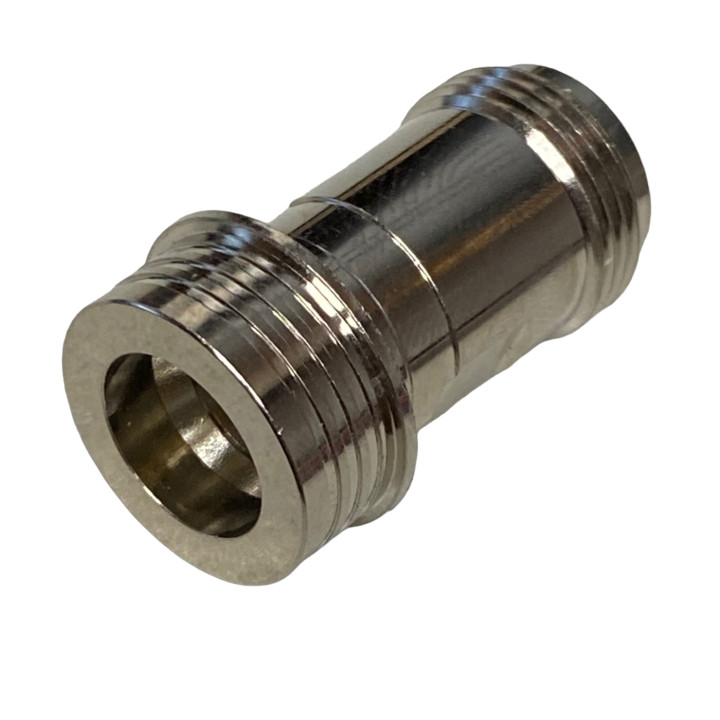

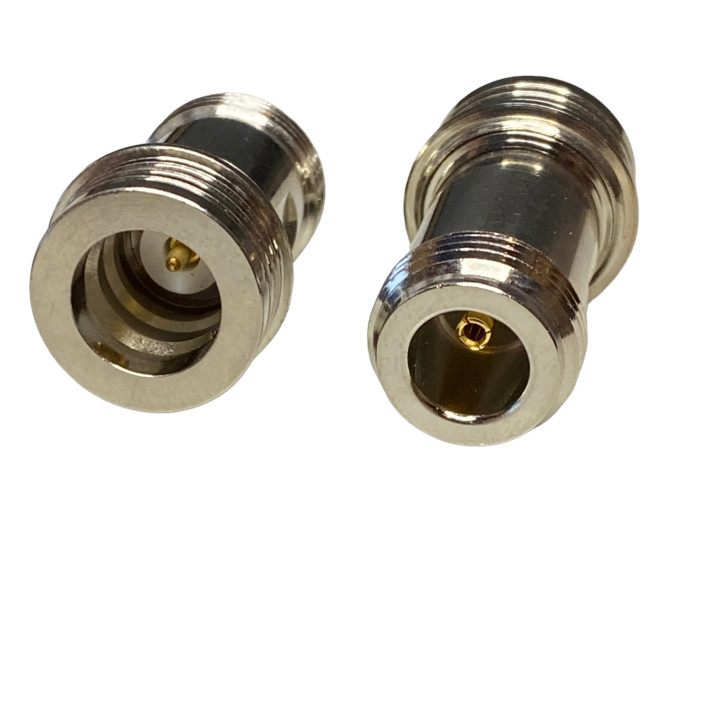

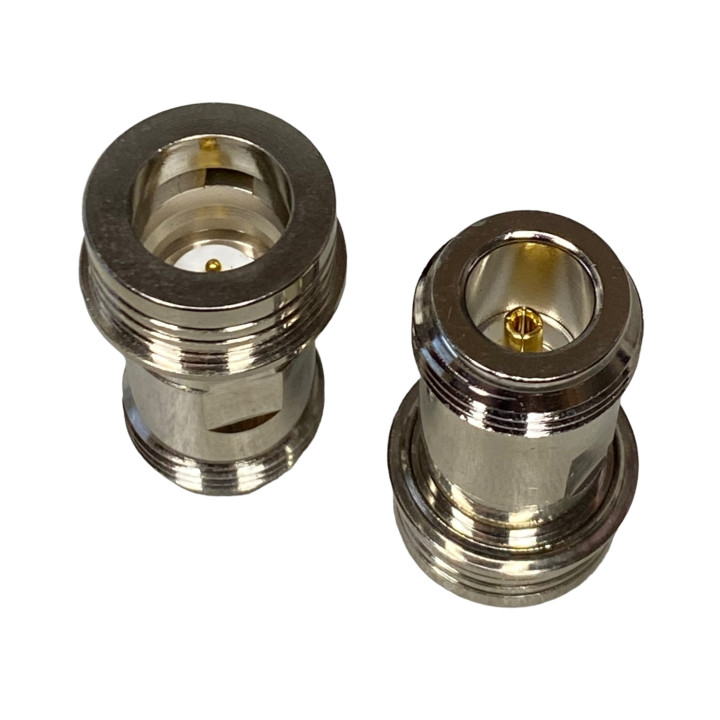

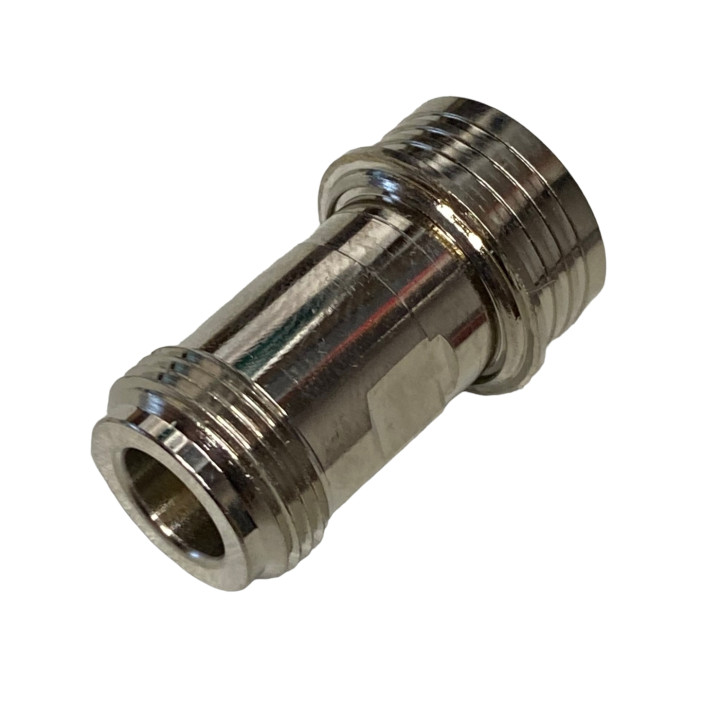

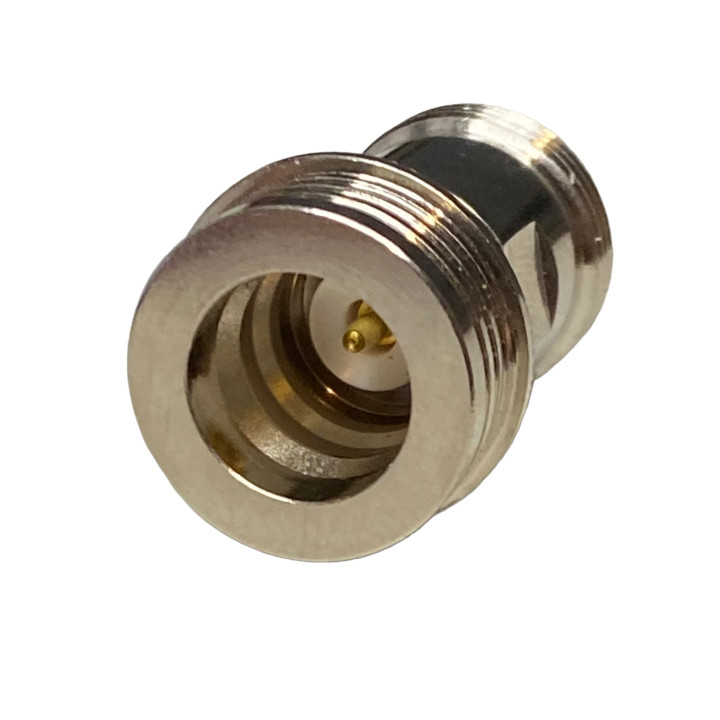

QN plug to N socket adapter
WATERPROOF
Antenna adapter designed to change the type of standard
connections between devices, cables.
Quick Connector (Quick Push-Pull)
QN is the equivalent of the N- type connector
.
This adapter allows migration from the connector
QN to N type connector.
Data
technical:
Connector 1: QN - plug .
Connector 2: N- socket.
Impedance: 50mΩ.
Standing Wave Ratio SWR: max
<=1.1.
Operating voltage: 335V
max.
Permissible peak voltage
Vpp: 1000V rms.
Working frequency: 0~12.4
GHz.
Shield contact resistance <= 2
mΩ.
Signal contact resistance <= 3
mΩ .
Insulation resistance: >= 5000
MΩ.
Insulator: PTFE.
Sealing ring: SIlastic 6146.
Operating temperature range: -55
°C ~ + 155 °C.
Durability: 500 cycles.
Connector Plating: Nickel
Material
Finish: Bronze
