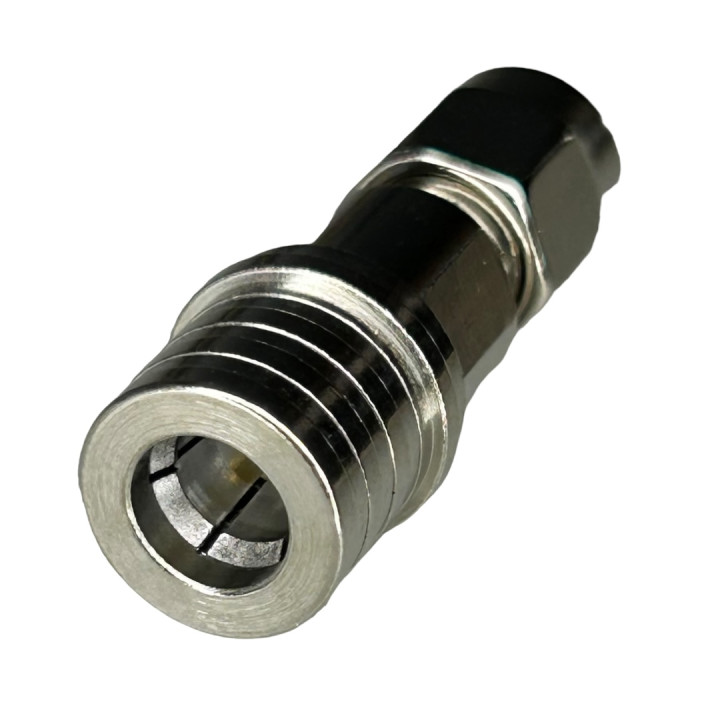

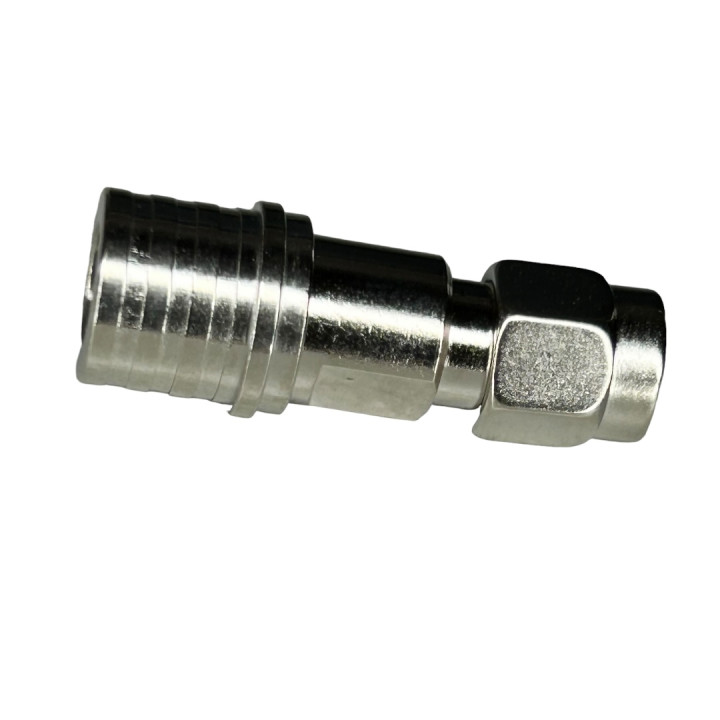

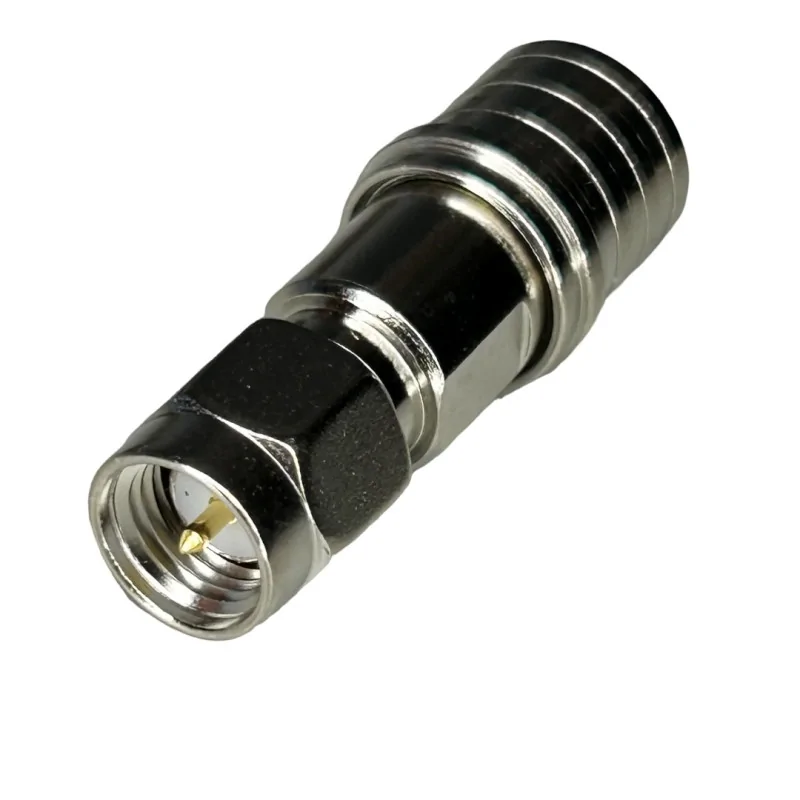

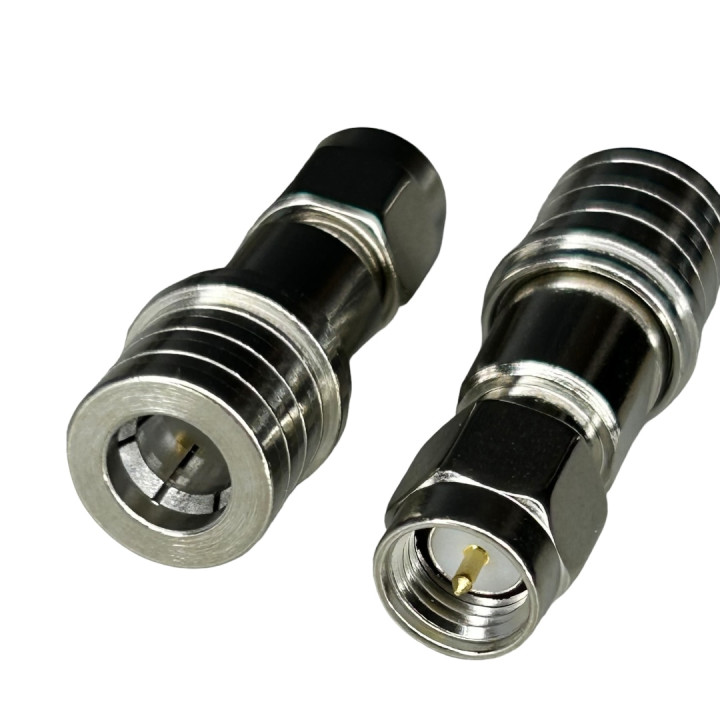

QMA plug to SMA plug WATERPROOF adapter

Name: QMA plug to SMA plug WATERPROOF adapter
Brand: RF-connectors Marek Pełka
SKU: ZL QMA/SMA MM
Price: 50.92 PLN
Availability: InStock

Brutto: zł50.92

Netto: 41.4 PLN

Czas wysyłki 1-2 dni robocze

Volume discounts

Quantity	Unit price	You Save
6	zł50.92	zł9.17
10	zł50.92	zł30.55
21	zł50.92	zł96.24
31	zł50.92	zł189.43
51	zł50.92	zł389.55
100	zł50.92	zł865.67
200	zł50.92	zł2,036.88
300	zł50.92	zł3,513.62
400	zł50.92	zł5,499.58
500	zł50.92	zł7,638.30

Product in permanent offer.
In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.

In stock 50 Items

Quantity

Delivery of goods

Returns of goods

Description
Product Details

QMA plug to SMA adapter WATERPROOF plug

Quick Connector (Quick Push-Pull) QMA is the equivalent of a type connector SMA .

This adapter allows migration from the connector QMA to type connector SMA .

Data technical:

Connector 1: QMA - plug . Connector 2: SMA - plug . Impedance: 50mΩ. Standing Wave Ratio SWR: max <=1.15. Operating voltage: 335V max. Permissible peak voltage Vpp: 1000V rms. Working frequency: 0~12.4 GHz. Shield contact resistance <= 5mΩ. Signal contact resistance <= 5 mΩ . Insulation resistance: >= 5000 MΩ. Insulator: PTFE. Sealing ring: SIlastic 6146. Operating temperature range: -55 °C ~ + 155 °C. Durability: 500 cycles. Connector Plating: Nickel Material Finish: Bronze

Reference ZL QMA/SMA MM

In stock 50 Items

Data sheet
