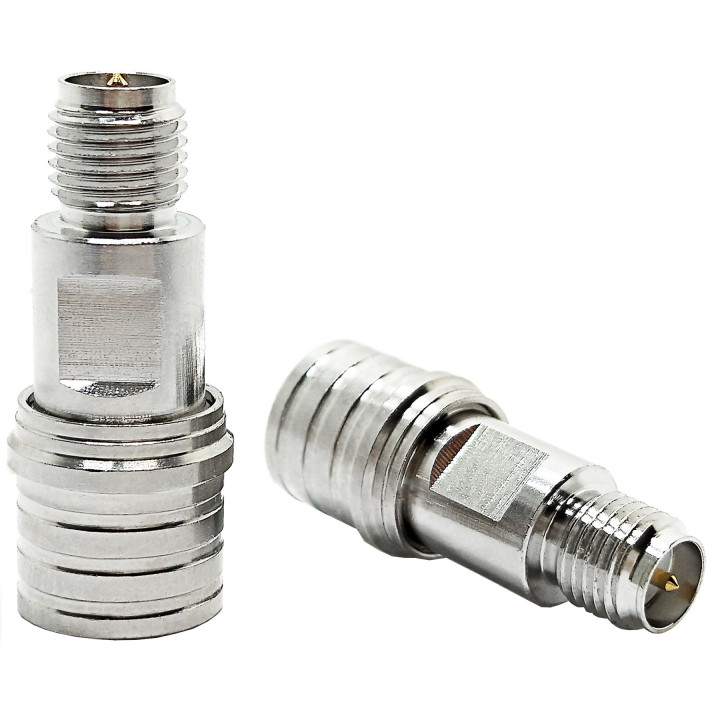

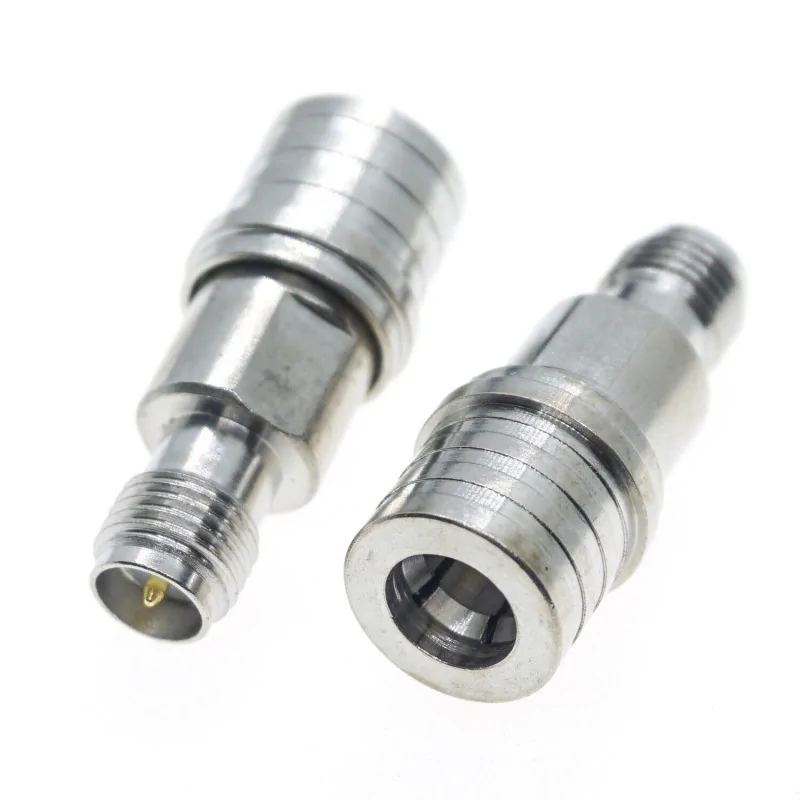

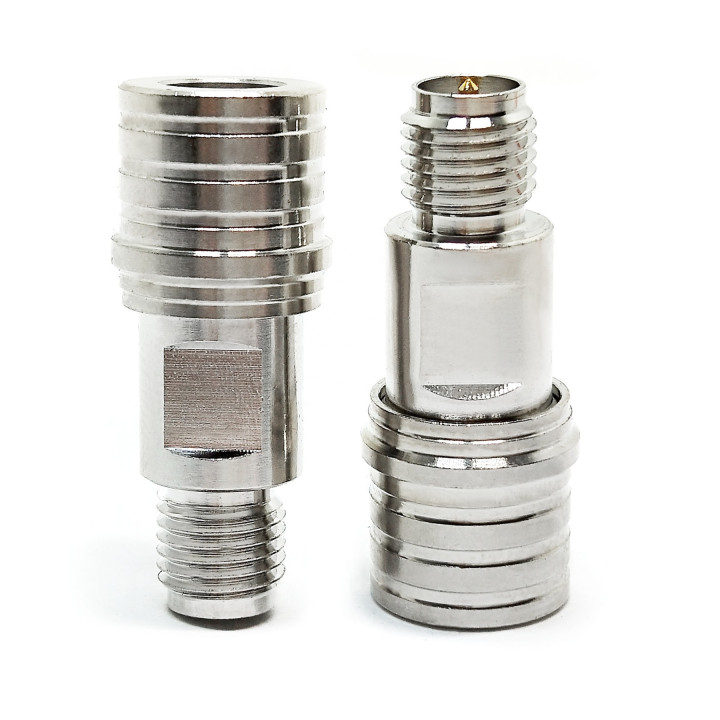

QMA plug/SMA-RP adapter
WATERPROOF socket
Antenna adapter designed to be changed
type of connection standard between devices and cables.
Quick Connector (Quick Push-Pull)
QMA is the equivalent of a type connector
SMA .
This adapter allows migration from the connector
QMA to type connector
SMA-RP .
Data
technical:
Connector 1: QMA - plug .
Connector 2: SMA-RP - socket.
Impedance: 50mΩ.
Standing Wave Ratio SWR: max
<=1.15.
Operating voltage: 335V
max.
Permissible peak voltage
Vpp: 1000V rms.
Working frequency: 0~12.4
GHz.
Shield contact resistance
<= 5mΩ.
Signal contact resistance <= 5
mΩ .
Insulation resistance: >= 5000
MΩ.
Insulator: PTFE.
Sealing ring: SIlastic 6146.
Operating temperature range: -55
°C ~ + 155 °C.
Durability: 500 cycles.
Connector Plating: Nickel
Material
Finish: Bronze
