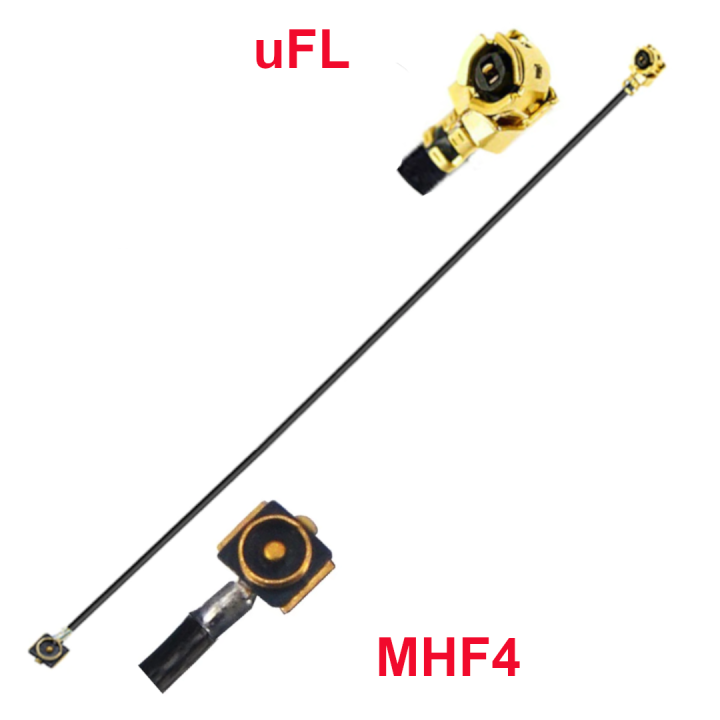

Pigtail MHF4 plug uFL socket RF1.13 5cm

Pigtai MHF4 plug uFL socket 5cm

Pigtail (adapter) is used to connect antennas with uFL connector of RF module which has MHF4 type antenna socket

Most often, the need arises when replacing in laptops and other devices working in Wi-Fi networks modules Bluetooth / WfFi communication technologies for the next generation.

SPECIFICATION:

type product: RF pigtail (RF connector)

CONNECTOR 1: u.FL socket face="Times New Roman">

CONNECTOR 2: MHF4 plug

cable : TYPE 0.81mm

wave impedance: 50 ohm

product length: 5cm

ATTENTION:

U.FL connector ( IPX IPEX 1 generation) It is the most popular RF connector among micro connectors. After it, there were subsequent, increasingly smaller RF connections.
