RF pigtails and antenna cables (feeders)

We are a manufacturer of RF cables that we make according to customer needs.
For production, we use cables with a diameter of 0.81mm ... 11 mm
e.g. RF0.81, RF1.13, RG178, RG174, RG316 RG58, H155, RF5, RF240, Hyperflex 5, H1000, CNT400, Hyperflex 10 and others.

In the store you will find many predefined types of RF cables in various combinations of connectors and lengths.

If you have not found the cable pattern you need, please contact me:
by phone +48 509 895 915 or email rfconnectorspl@gmail.com.

ATTENTION:
Cables produced in this category are not returnable.

Pigtail MHF4-IPX4 plug / MHF4-IPX4 plug 10cm

Name: Pigtail MHF4-IPX4 plug / MHF4-IPX4 plug 10cm
Brand: RF CONNECTORS
SKU: PT-MHF4 / MHF4 MM 10
Price: 16.88 PLN
Availability: InStock

Brutto: zł16.88

Netto: 13.72 PLN

Time of delivery 1-2 work days

Price Guarantee

Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.

To pay for the purchase of a product in excess of its current status, we will provide you with:

- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.

There is no other way to reserve products

Quantity	Unit price	You save	Total price
1	zł16.88	-	zł16.88
6	zł16.20	Up to zł4.05	zł97.20
16	zł15.69	Up to zł18.90	zł251.10
31	zł15.19	Up to zł52.31	zł470.81
51	zł14.68	Up to zł111.88	zł748.74
100	zł14.18	Up to zł270.00	zł1,417.50
200	zł13.50	Up to zł675.00	zł2,700.00
300	zł12.83	Up to zł1,215.00	zł3,847.50
500	zł12.15	Up to zł2,362.50	zł6,075.00

Ask about product Send to a friend

Volume discounts

Quantity	Unit price	You Save
6	zł16.88	zł4.05
16	zł16.88	zł18.90
31	zł16.88	zł52.31
51	zł16.88	zł111.88
100	zł16.88	zł270.00
200	zł16.88	zł675.00
300	zł16.88	zł1,215.00
500	zł16.88	zł2,362.50

Product in permanent offer.
In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.

In stock 1071 Items

Quantity

Security policy

Delivery policy

Return policy

Description
Product Details

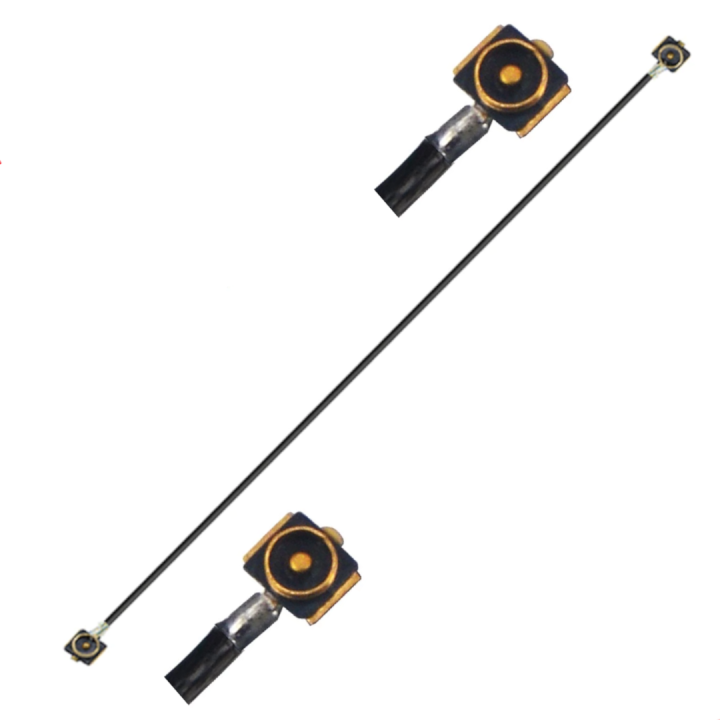

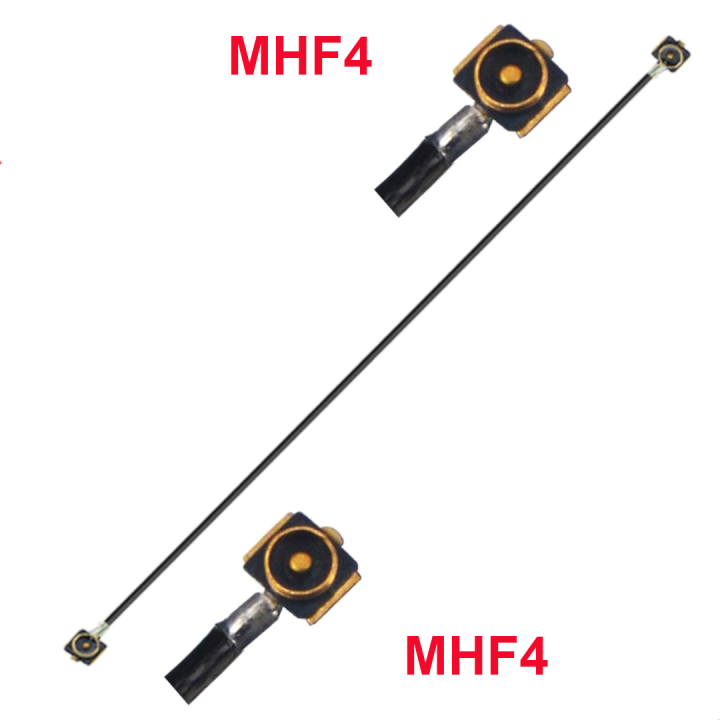

Pigtai MHF4 MHF4 plug , 0.81mm plug 10cm

Pigtail (adapter) is used for connection antennas with the uFL connector of the RF module, which has an MHF4 antenna socket

Most often it is necessary to replace it in laptops and other devices operating in WiFI module networks Bluetooth / WfFi communication systems for the new generation.

SPECIFICATIONS:

type product: RF pigtail (RF connector)

CONNECTOR 1: MHF4 plug

CONNECTOR 2: MHF4 plug

cable: TYPE 0.81mm

wave impedance: 50 ohms

product length: 10cm

IPX, IPEX, I-PEX is the general name of high-frequency micro-connectors working for 6GHz. So far, subsequent generations marked with numbers 1,3 and have been created 4.

SIGNS : :

U.FL - first generation marked alternative IPX1
MHF3 - third generation marked alternative IPX3

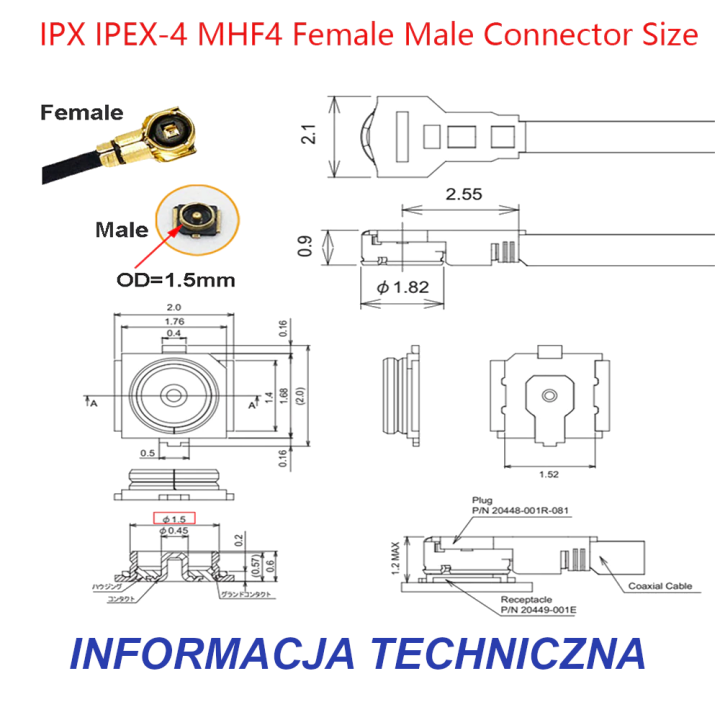

MHF4 - fourth generation marked alternative IPX3

Brand RF CONNECTORS

Reference PT-MHF4 / MHF4 MM 10

In stock 1071 Items

Data sheet

Złącze 1: MHF4
Złącze 2: MHF4
Kabel: RF0.81
Długość: 10cm
Rabat: TAK

Condition New
