Pigtail UFL-IPX1 socket / UFL-IPX1 socket 5cm
Brutto:
zł13.34
(zł13.34 szt.)
Netto: 10.85 PLN
Time of delivery 1-2 work days
Price Guarantee
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.
Due to the large number of orders, we have turned on the option of ordering the number of products above the available stock.
To pay for the purchase of a product in excess of its current status, we will provide you with:
- product reservation and guarantee,
- a guarantee of the price from the date of payment of the order.
There is no other way to reserve products

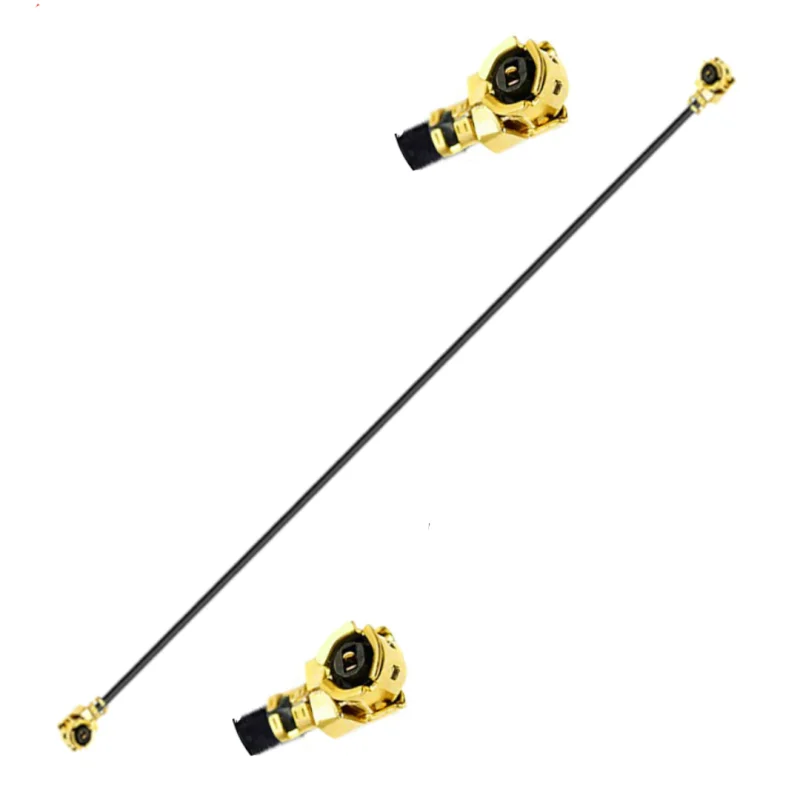

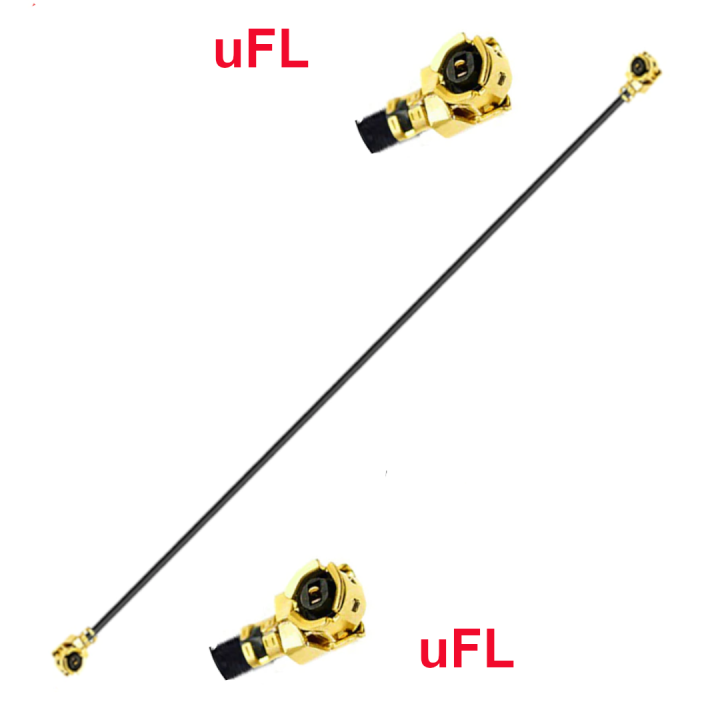

Pigtai UFL UFL socket 0.81mm socket 5cm
Pigtail (adapter) is used for connection antennas with the uFL connector of the RF module, which has an MHF4 antenna socket
Most often it is necessary to replace it in laptops and other devices operating in WiFI module networks Bluetooth / WfFi communication systems for the new generation.
SPECIFICATIONS:
type product: RF pigtail (RF connector)
CONNECTOR 1: UFL socket
CONNECTOR 2: UFL socket
cable: TYPE 0.81mm
wave impedance: 50 ohms
product length: 5cm

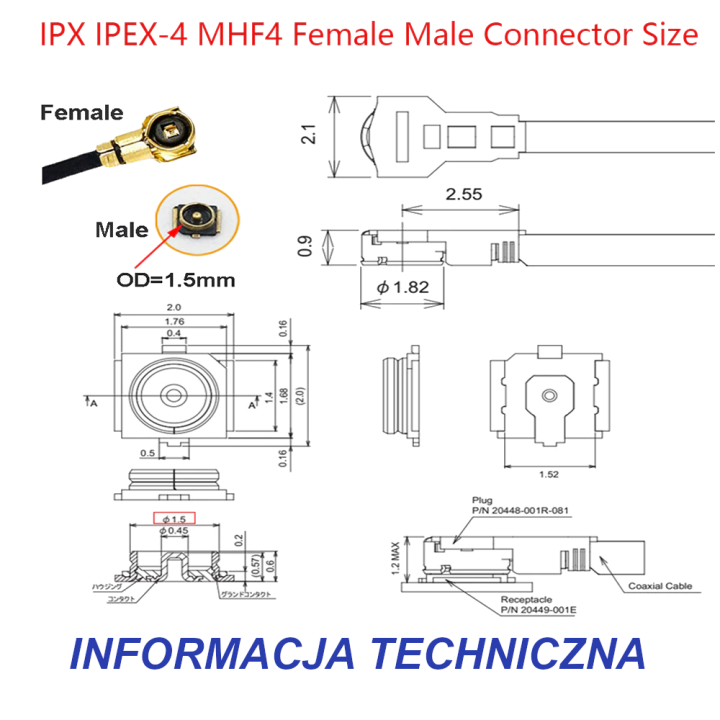

IPX, IPEX, I-PEX is the general name of high-frequency microconnectors working for 6GHz. So far, subsequent generations marked with numbers 1,3 and have been created 4.
SIGNS : :

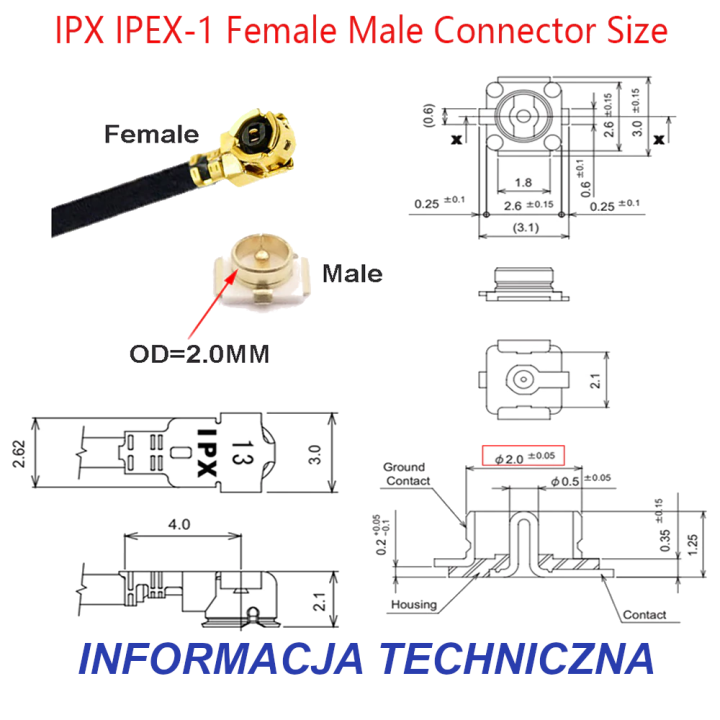

- U.FL - first generation marked alternative IPX1
- MHF3 - third generation marked alternative IPX3
- MHF4 - fourth generation marked alternative IPX3
PT-UFL / UFL FF 05
98 Items
Data sheet
- Złącze 1
- UFL female
- Złącze 2
- uFL female
- Kabel
- RF1.13
- Długość
- 5cm
- Rabat
- TAK
