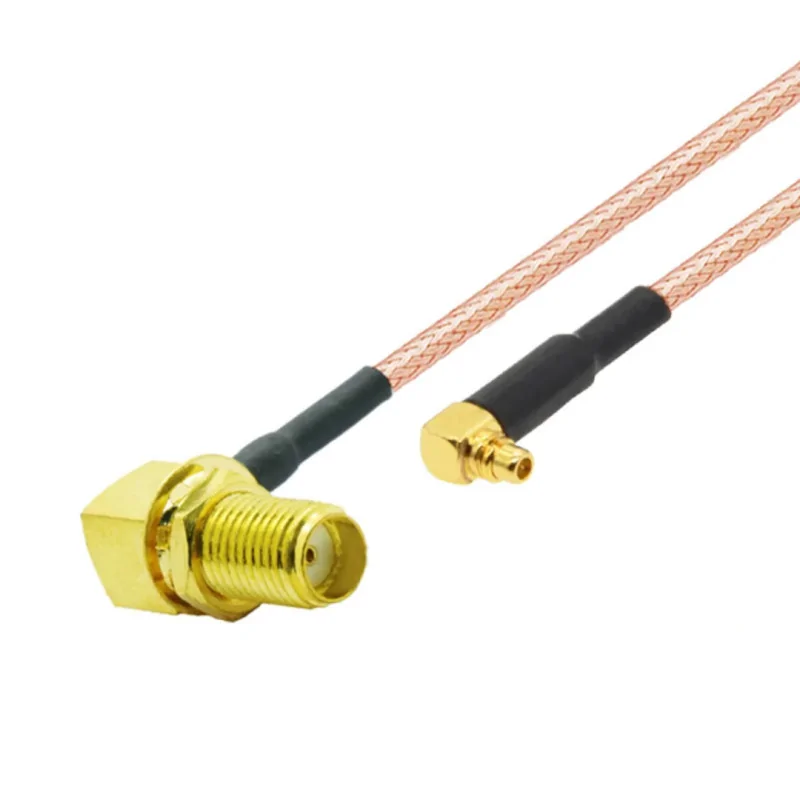

• Pigtail MMCX plug - SMA socket RG316 50cm V3
RF antenna pigtails and cables (fiders)

We are a manufacturer of RF cables, which we make according to the customer's needs.
For production, we use cables with a diameter of 0.81mm ... 11 mm
e.g. RF0.81, RF1.13, RG178, RG174, RG316 RG58, H155, RF5, RF240, Hyperflex 5, H1000, CNT400, Hyperflex 10 and others.

In the store you will find many predefined types of RF cables in various combinations of connectors and lengths.

If you haven't found the cable pattern you need, please contact us:
by phone +48 882 953 094 or email [email protected]

ATTENTION:
Cables manufactured in this category are not returnable.

Pigtail MMCX plug - SMA socket RG316 50cm V3

Brutto: 41.82 zł
Netto: 34.00 zł
Production capacity:
349 szt.
? This is not finished goods stock, but the quantity that can be manufactured from available components.

Product customization ? Here you can provide details of your individual product customization: Length change and additional cable markers.

Długość
You can specify a shorter length than the one listed in the offer, e.g., 86 cm instead of 1 m. If you need a longer length (e.g., 5 m instead of 1 m), you will find it in another product.
15 char. max
Optional ? This length field is optional. Fill it in only if you want to order a custom length.
If the cable is to be shorter, please specify its length. (+5.00 zł)
The printed text is limited to 8 characters.
8 char. max
Optional ? This print field is optional. Fill it in only if you want to add printing.

Volume discounts

Quantity Unit price You Save
6 40.59 zł 7.38 zł
11 40.57 zł 13.80 zł
16 38.89 zł 46.84 zł
21 39.31 zł 52.69 zł
31 37.64 zł 129.64 zł
51 36.38 zł 277.27 zł
100 35.13 zł 669.12 zł
200 33.46 zł 1,672.80 zł
300 31.78 zł 3,011.04 zł
400 30.95 zł 4,349.28 zł
500 30.11 zł 5,854.80 zł
1000 28.02 zł 13,800.60 zł
Czas wysyłki 1-2 dni robocze

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Gwarancja ceny

W związku z dużą ilością zamówień włączyliśmy opcję zamawiania ilości produktów powyżej dostępnego stanu w magazynie.

Opłacenie zakupu produktu powyżej aktualnego stanu zapewni Państwu:

- rezerwację i gwarancję dostawy produktu,
- gwarancję ceny z dnia z opłacenia zamówienia.
Nie ma innej formy rezerwacji produktów
done   Produkt w stałej ofercie.
W przypadku chwilowego braku lub zapotrzebowania na większą ilość czas dostawy 5-10 dni roboczych.

MMCX adapter ANGLED plug - SMA RP female socket ANGLE RG316 50cm

face="Arial">Pigtail ( adapter ) is used to connect the antenna with the connector RP SMA to the RF module which has an antenna socket type MMCX.

Application:

  • External antennas for motherboards PC,
  • Modules radiocommunication in,cz
  • Tuners DVB-T

face="Arial"> GPS receivers other

SPECIFICATION:

product type: RF pigtail (connector w.cz) CONNECTOR 1: MMCX ANGLED PLUG CONNECTOR 2: SMA-RP female socket ANGLE cable : TYPE RG316 wave impedance: 50 ohm face="Arial"> product length: 50cm face="Arial">



  • Brand
    RF CONNECTORS
  • Reference
    PT_MMCX/SMA MLFL50Q
  • In stock
    349 Items
  • Condition
    New
  • EAN13
    5905778439111
