RF antenna pigtails and cables (fiders)

We are a manufacturer of RF cables, which we make according to the customer's needs.
For production, we use cables with a diameter of 0.81mm ... 11 mm
e.g. RF0.81, RF1.13, RG178, RG174, RG316 RG58, H155, RF5, RF240, Hyperflex 5, H1000, CNT400, Hyperflex 10 and others.

In the store you will find many predefined types of RF cables in various combinations of connectors and lengths.

If you haven't found the cable pattern you need, please contact us:
by phone +48 882 953 094 or email [email protected]

ATTENTION:
Cables manufactured in this category are not returnable.

Pigtail MHF4 female plug SMA-RP socket 0.81 15cm

Name: Pigtail MHF4 female plug SMA-RP socket 0.81 15cm
Brand: RF CONNECTORS
SKU: PT_MHF4 / SMAR90FF15
Price: 20.89 PLN
Availability: InStock

Brutto: zł20.89

Netto: 16.99 PLN

Czas wysyłki 1-2 dni robocze

In stock 560 Items

Gwarancja ceny

W związku z dużą ilością zamówień włączyliśmy opcję zamawiania ilości produktów powyżej dostępnego stanu w magazynie.

Opłacenie zakupu produktu powyżej aktualnego stanu zapewni Państwu:

- rezerwację i gwarancję dostawy produktu,
- gwarancję ceny z dnia z opłacenia zamówienia.

Nie ma innej formy rezerwacji produktów

Quantity	Unit price	You save	Total price
1	zł20.89	-	zł20.89
6	zł20.06	Up to zł5.01	zł120.35
16	zł19.43	Up to zł23.40	zł310.90
31	zł18.80	Up to zł64.77	zł582.93
51	zł18.18	Up to zł138.52	zł927.05
100	zł17.55	Up to zł334.30	zł1,755.06
200	zł16.71	Up to zł835.74	zł3,342.98
300	zł15.88	Up to zł1,504.34	zł4,763.74
500	zł15.04	Up to zł2,925.10	zł7,521.70

In stock 560 Items

Quantity

Volume discounts

Quantity	Unit price	You Save
6	zł20.89	zł5.01
16	zł20.89	zł23.40
31	zł20.89	zł64.77
51	zł20.89	zł138.52
100	zł20.89	zł334.30
200	zł20.89	zł835.74
300	zł20.89	zł1,504.34
500	zł20.89	zł2,925.10

Product in permanent offer.
In the event of a temporary shortage or demand for more, the delivery time is 5-10 working days.

Delivery of goods

Returns of goods

Description
Product Details

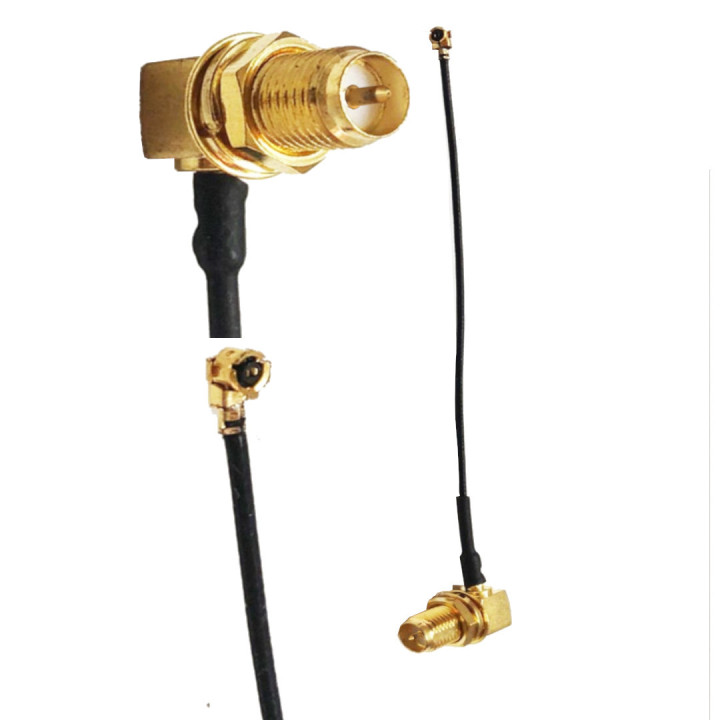

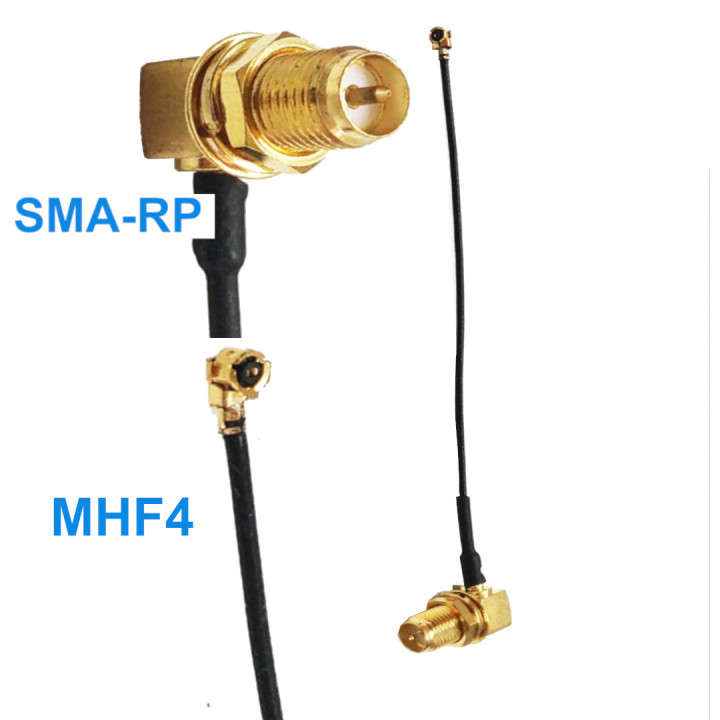

MHF4 adapter IPX4 IPEX - SMA FEMALE ANGLED 15cm

Pigtail (adapter) is used to connect antennas with SMA connector RF module which has U.FL IPX type antenna socket IPEX.

SPECIFICATION:

type product: RF pigtail (RF connector)

CONNECTOR 1: MHF4 IPX4 plug girls

CONNECTOR 2: SMA-RP socket angular

cable : TYPE 0.81mm

wave impedance: 50 ohm

product length: 15cm

ATTENTION:

U.FL connector ( IPX IPEX 1 generation) It is the most popular RF connector among micro connectors. After it, there were subsequent, increasingly smaller RF connections.

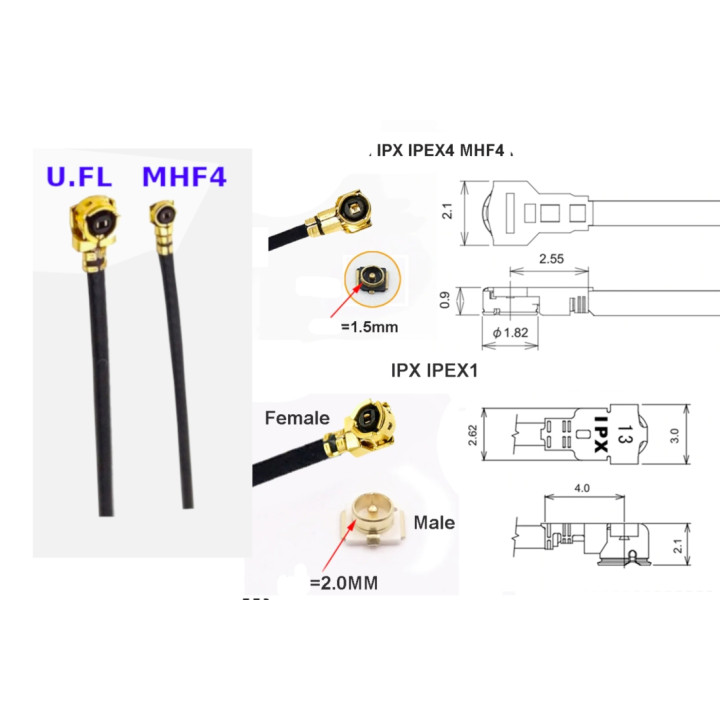

Please read the graphic at the end of the auction that explains the differences between MHF4 vs. U.FL .

Brand RF CONNECTORS

Reference PT_MHF4 / SMAR90FF15

In stock 560 Items

Data sheet

Złącze 1: MHF4 female
Złącze 2: SMA RP female
Kabel: RF0.81
Długość: 15cm
Rabat: TAK

Condition New

Pigtail MHF4 female plug SMA-RP socket 0.81 15cm
