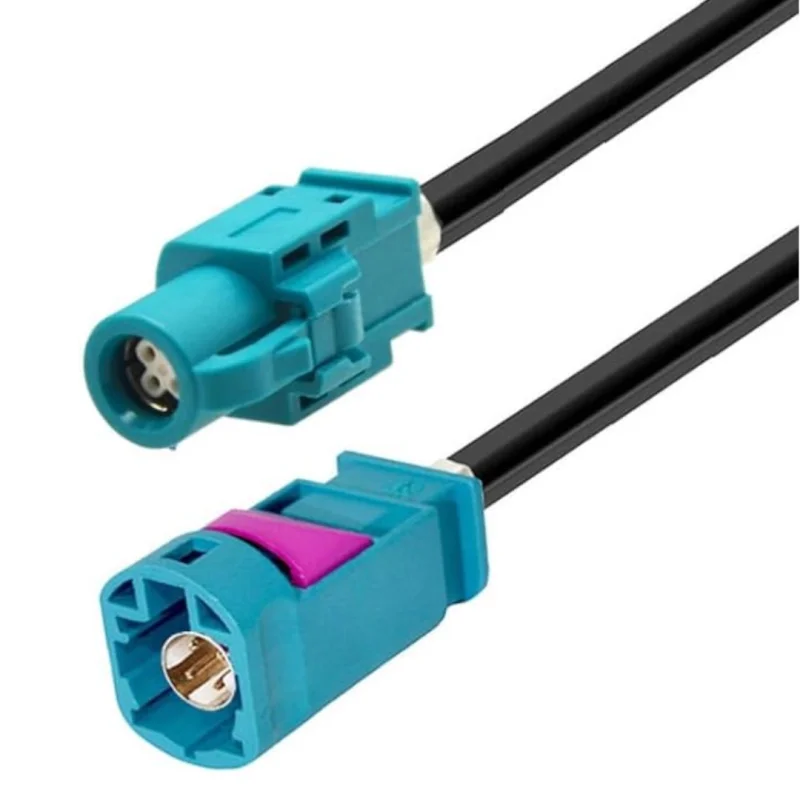

• Fakra HSD LVDS Code -Z cable socket/plug 3m
RF antenna pigtails and cables (fiders)

We are a manufacturer of RF cables, which we make according to the customer's needs.
For production, we use cables with a diameter of 0.81mm ... 11 mm
e.g. RF0.81, RF1.13, RG178, RG174, RG316 RG58, H155, RF5, RF240, Hyperflex 5, H1000, CNT400, Hyperflex 10 and others.

In the store you will find many predefined types of RF cables in various combinations of connectors and lengths.

If you haven't found the cable pattern you need, please contact us:
by phone +48 882 953 094 or email [email protected]

ATTENTION:
Cables manufactured in this category are not returnable.

Fakra HSD LVDS Code -Z cable socket/plug 3m

Brutto: 185.99 zł
Netto: 151.21 zł
Production capacity:
175 szt.
? This is not finished goods stock, but the quantity that can be manufactured from available components.

Product customization ? Here you can provide details of your individual product customization: Length change and additional cable markers.

Długość
You can specify a shorter length than the one listed in the offer, e.g., 86 cm instead of 1 m. If you need a longer length (e.g., 5 m instead of 1 m), you will find it in another product.
15 char. max
Optional ? This length field is optional. Fill it in only if you want to order a custom length.
If the cable is to be shorter, please specify its length. (+5.00 zł)
The printed text is limited to 8 characters.
8 char. max
Optional ? This print field is optional. Fill it in only if you want to add printing.

Volume discounts

Quantity Unit price You Save
6 185.74 zł 1.48 zł
10 174.83 zł 111.59 zł
11 180.41 zł 61.38 zł
16 172.97 zł 208.31 zł
21 174.83 zł 234.35 zł
25 169.25 zł 418.48 zł
31 169.25 zł 518.91 zł
51 158.09 zł 1,422.82 zł
100 154.37 zł 3,161.83 zł
200 148.79 zł 7,439.60 zł
300 143.21 zł 12,833.31 zł
400 135.77 zł 20,086.92 zł
500 130.19 zł 27,898.50 zł
1000 124.61 zł 61,376.70 zł
Czas wysyłki 1-2 dni robocze

  Security policy

(edit with the Customer Reassurance module)

  Delivery policy

(edit with the Customer Reassurance module)

  Return policy

(edit with the Customer Reassurance module)

Gwarancja ceny

W związku z dużą ilością zamówień włączyliśmy opcję zamawiania ilości produktów powyżej dostępnego stanu w magazynie.

Opłacenie zakupu produktu powyżej aktualnego stanu zapewni Państwu:

- rezerwację i gwarancję dostawy produktu,
- gwarancję ceny z dnia z opłacenia zamówienia.
Nie ma innej formy rezerwacji produktów
done   Produkt w stałej ofercie.
W przypadku chwilowego braku lub zapotrzebowania na większą ilość czas dostawy 5-10 dni roboczych.

FAKRA HSD angle socket 4 pin CODE-Z 3m

HSD - High Spent Data

Cables terminated with a socket / the plug with Code-Z coding (BLUE sea color) is Code-MASTER replaces all encodings ( Code-A , Code-B , Code-C , Code-D, Code-E, Code-F, Code-G, Code-H, Code-K , Code-J )

TECHNICAL SPECIFICATIONS:


  • Connector type 1: FAKRA HSD straight socket
  • Connector type 1: FAKRA HSD straight plug
  • Length: 3m
  • Polarization: Z-coded (BLUE)

  • Wave impedance: 100ohm
  • Maximum operating voltage: 335V
  • Cable type: 4 veins
  • Temperature working: -40°C ~ 105°C
  • Color: navy blue (shield color coding)

PRODUCT NOTE:
  • sometimes the color may differ in shade from declared, but the description always includes the execution code CODE-x
  • the offer applies to 1 piece of the product

  • Reference
    PT_HSD-Z MSFS4-300
  • In stock
    175 Items
  • Condition
    New
  • EAN13
    5905778450420
