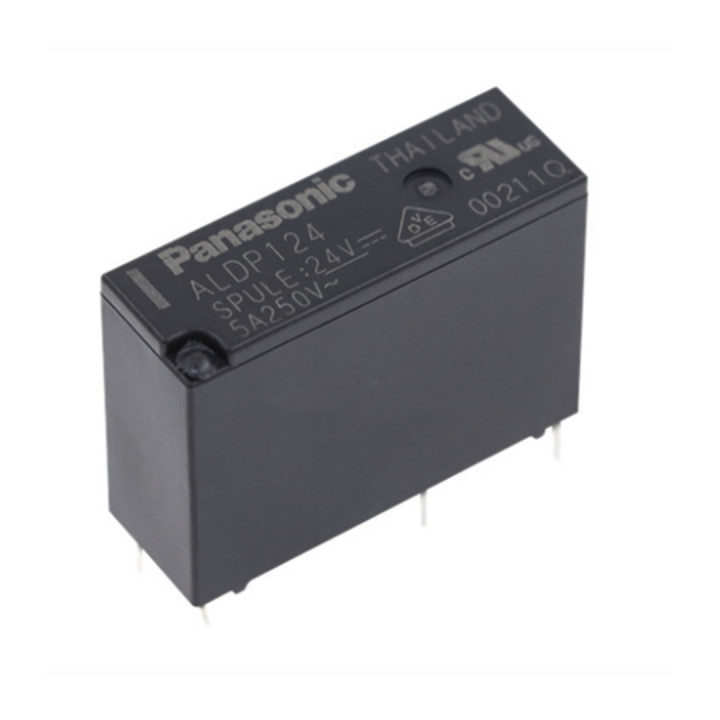

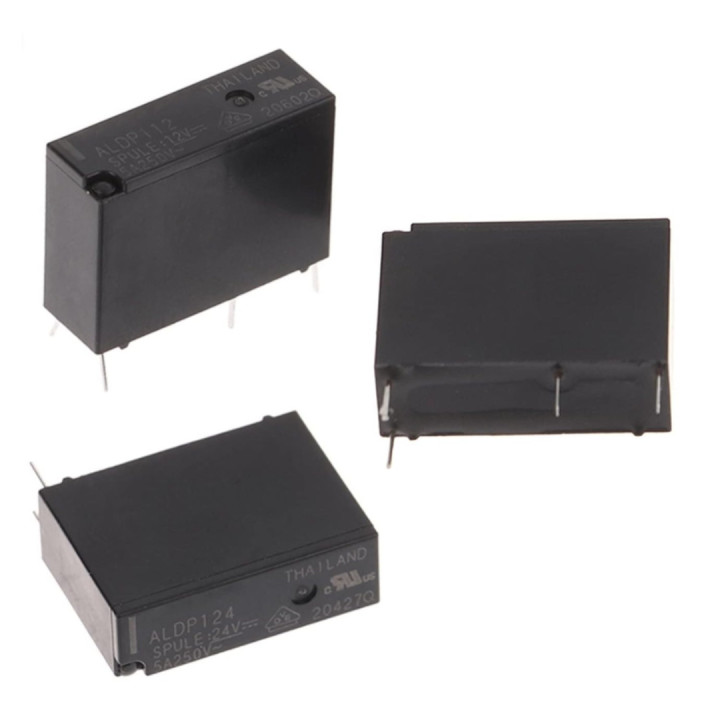

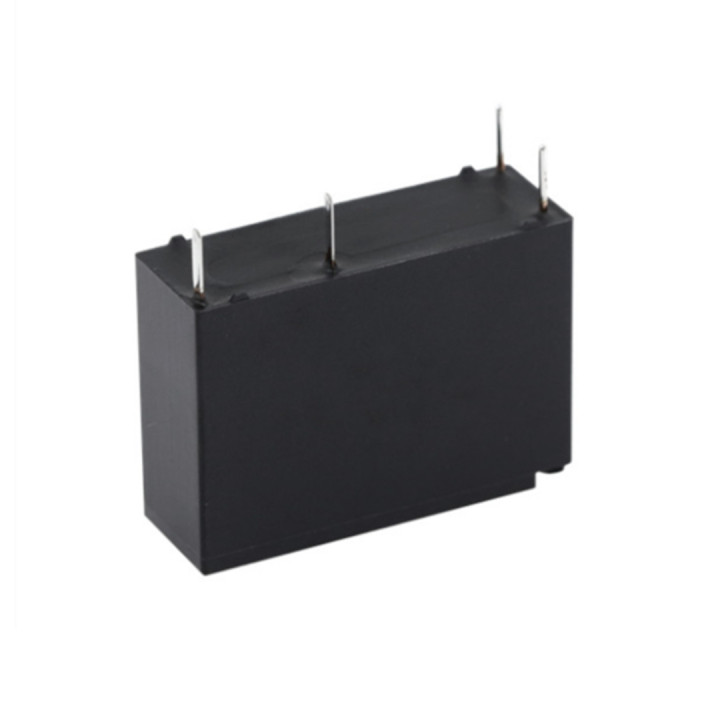

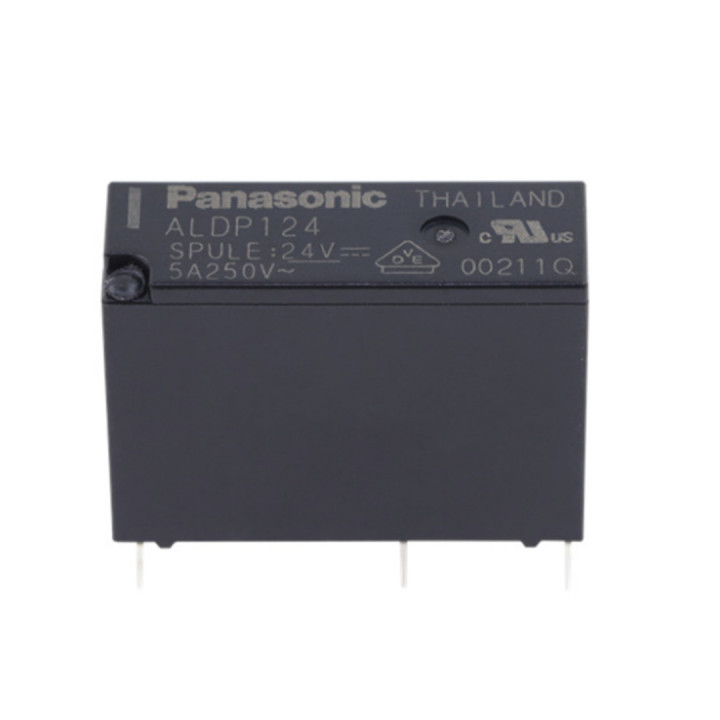

ALDP124 RELAY
PANASONIC SPST 24Vdc 3A
Replaces FTR-F3AA024E-HA relays
G5NB-1A-E-24VDC
SPECIFICATION:
Producer:
PANASONIC
Relay type:
electromagnetic

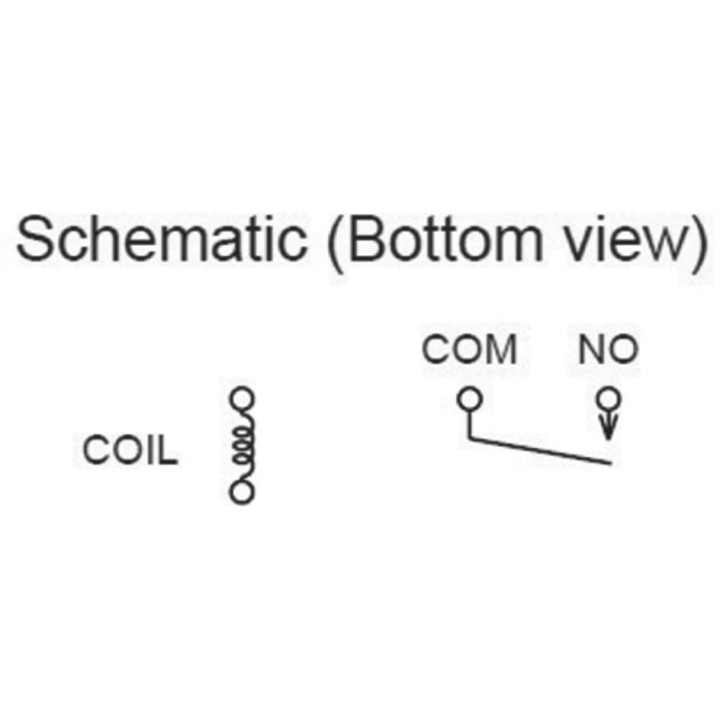

Contact configuration:
SPST-NO
Nominal coil voltage: 24V
DC
Load capacity of AC contacts (at load
resistive): 3A / 30VAC
Load capacity of DC contacts (at load
Resistive):
5A / 277VDC
Contact current
max: 5A
Switched voltage:
max 30V DC, max 277V AC
Relay version:
miniature
Installation:
PCB
Coil resistance:
2.88kΩ
Coil voltage
min.: 18V
DC

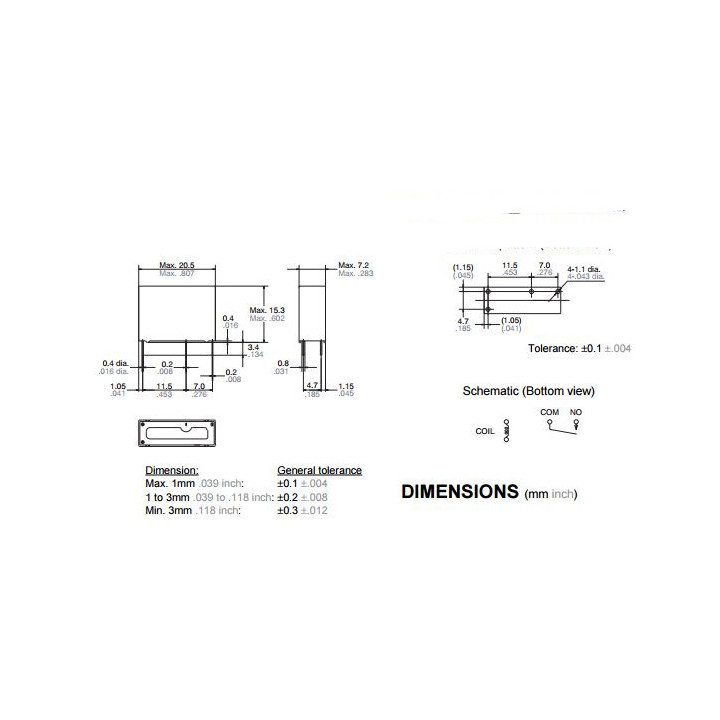

External dimensions:
20.5x7.2x15.3mm
Coil power consumption:
200mW
Mechanical durability:
5000000cycles
Operating temperature:
-40...85°C
Relay series:
ALDP
AgNi contact material:
Coil current 8.3mA
Gross weight:
4.37 g
