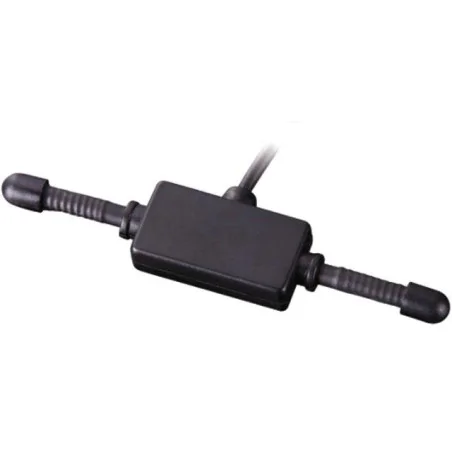

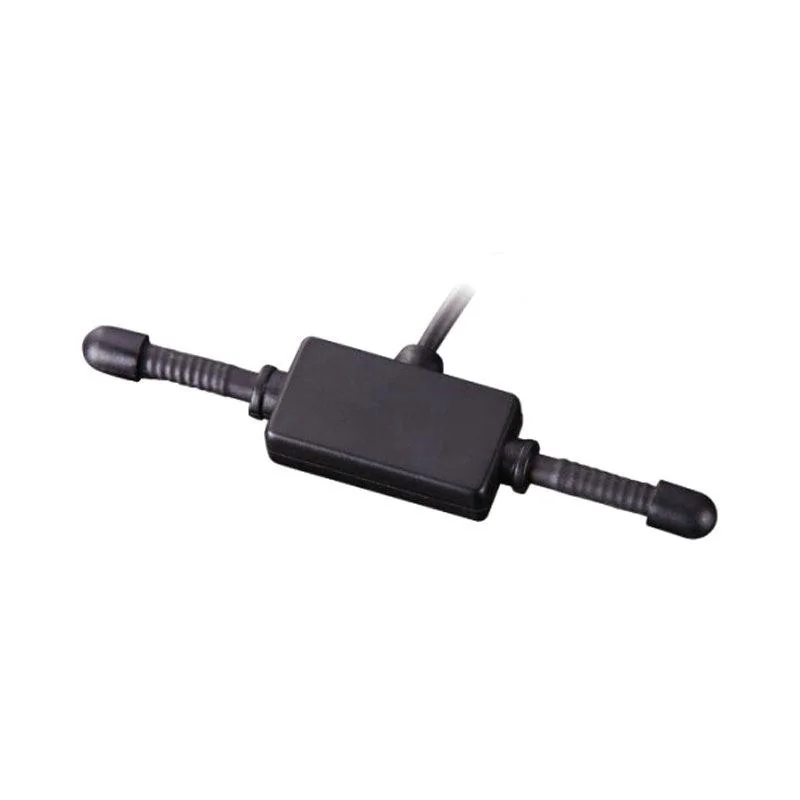

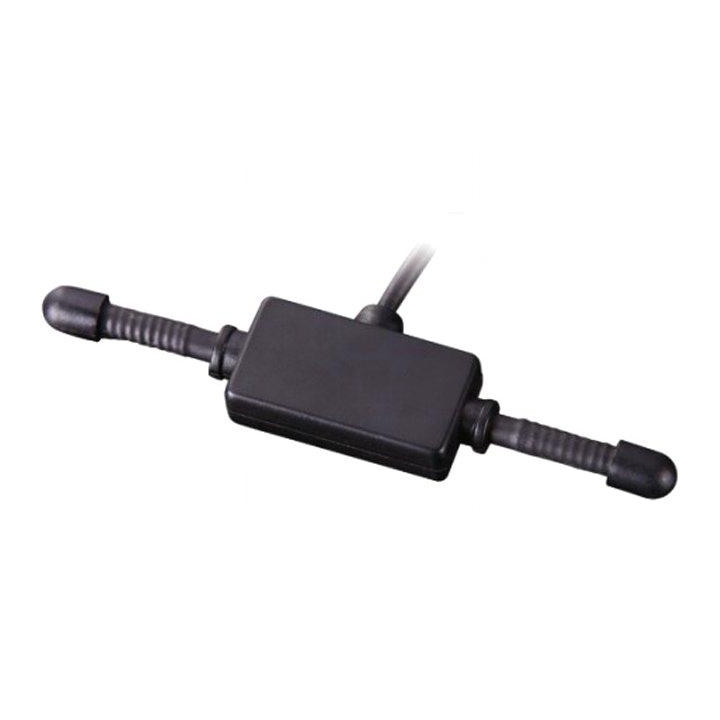

GSM 3G LTE 2dBi antenna T type SMA plug type5

GSM ANTENNA 2dBi 1710-2655MHz, 824-960MHz SMA-WT GLASS OR FLAT MOUNTING SURFACE

Dual-band GSM antenna with wide range of applications:

• telephony, payment terminals,
• vending machines,
• commercial and industrial modems for use in surveillance, security, telemetry and more.

Leading the antenna outside the device housing, whether the room significantly improves access and stability of the connection with GSM operator.

After installation discreetly fits in with the installation location

The antenna is designed for mounting on a flat surface. using mounting tape.

DO NOT MOUNT THE ANTENNA DIRECTLY ON METAL SURFACES AS THIS WILL IMPACT THE WORSE DIRECTIONAL PARAMETERS AND SIGNIFICANTLY REDUCE ITS PROFIT ENERGETIC

SPECIFICATION

• Frequency 1710...2655MHz, 824...960MHz
• 3G, 4G, LTE transmission
• Antenna gain* 2dBi
• Impedance 50Ω
• Linear polarization
• Operating temperature -40...85°C
• Tape mounting
• Connector type SMA male
• Cable type RG174
• Cable length 3m

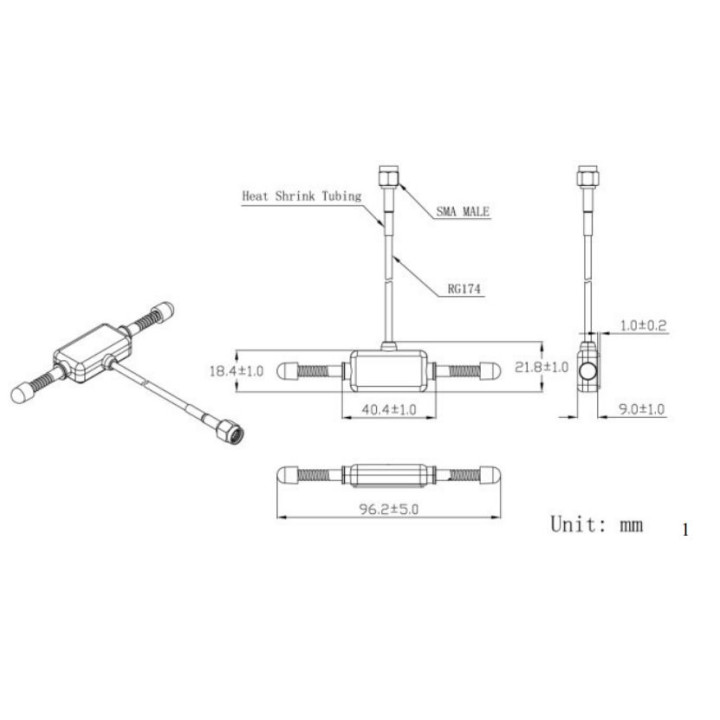

• Antenna height 96.2 x 18.4 x 9mm
• Antenna diameter 45mm
• Protection class: IP67 (also known as resistance to environmental conditions)

ADDITIONAL ANTENNA OPTIONS - PAID OPTIONS - look for them on the auction as ANTENNA SUPPLEMENT:

It is possible to change the connector according to the customer's order:

• BNC-plug: electronic modules, microphones, microports and other
• CRC9- plug: GSM modems and routers
• F- plug: GSM repeaters
• FAKRA - socket: radio communication devices ( mainly automotive)
• FAKRA - plug
• FME- plug: GSM repeaters
• MC CARD - plug: modules electronic, microphones, microports and others
• MCX - plug: electronic modules, microphones, microports and others
• MMCX - plug: electronic modules, microphones, microports and more
• N- socket: GSM repeaters and other
• N-plug: repeaters, GSM plug connector
• SMA-RP - plug: electronic modules, microphones, microports and more
• SMB- socket: electronic modules, microphones, microports and others
• SMB- plug: electronic modules, microphones, microports and other
• TNC-plug: electronic modules, microphones, microports, GSM repeaters and others
• TS9- plug: GSM modems and routers
• TWIX -2 in 1 CRC9/TS9 plug: GSM modems and routers

In case of purchase of a modified antenna, it is not refundable, so if If you are not sure about the purchase, please buy an antenna and the appropriate adapter.

The antenna cable will be up to 5 cm shorter than the declared length in the description antennas.

The delivery time for a modified antenna may be extended by one day.

If you haven't found the connector you would like to mount on your antenna please submit an inquiry.

INSTALLATION NOTES:

• Antenna output to outside the device housing or room significantly improves the range and stability of data transmission.
• In the case of a mounted antenna adhesive tape should be avoided when mounting it on surfaces metal, because it leads to a decrease in its profit and changes directional characteristics.
