• RG6 antenna cable GEL

NOTE – products made to order

The cables presented are sample configurations and are not finished products held in stock. Each product is made to order according to the selected configuration (cable type, length, connector type).

Cable products are non-returnable for any reason.

Why are cable products non-returnable?

Each cable is individually manufactured after the order is placed. We select and assemble the cable, connectors, and length according to the configuration selected by the Buyer.

The products offered should be considered sample configurations and manufacturing models. These are not finished products held in stock, but products made or assembled to order.

Due to the individual nature of their manufacture, these products constitute non-prefabricated goods manufactured according to the customer's specifications or intended to meet their individual needs. Therefore, the right to withdraw from the contract and return without giving a reason is not available to the extent permitted by applicable law.

Before placing an order, we recommend carefully checking the product configuration. If you have any questions regarding the selection of cables, connectors, or technical parameters, please contact our technical department.

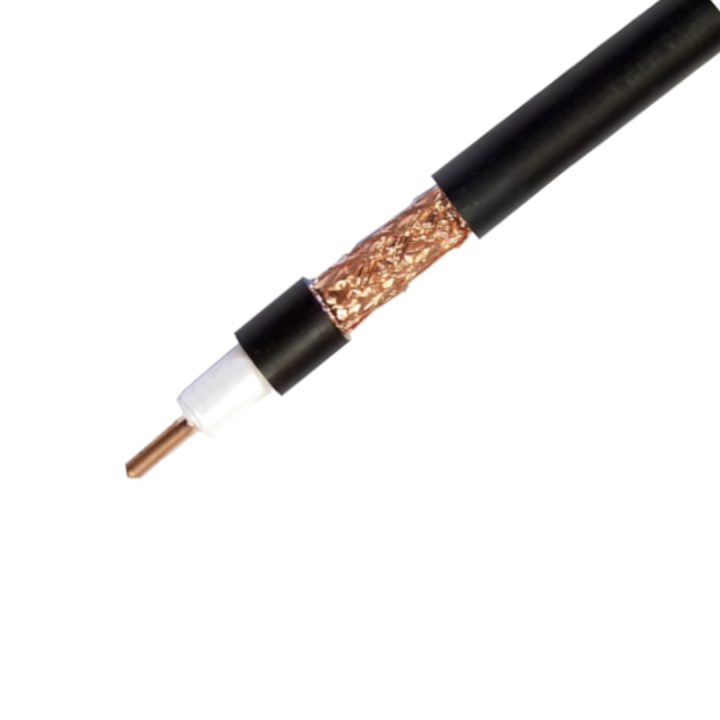

RG6 antenna cable GEL

Brutto: 2.89 zł
Netto: 2.35 zł
Production capacity:
310 szt.
? This is not finished goods stock, but the quantity that can be manufactured from available components.

Product customization ?

Here you can provide details of your individual product customization: Length change and additional cable markers.

i

How to use? Fill in the appropriate field (or both, as needed) below and click "Save Customization." Then, enter the product quantity and click "Add." If you have any questions, please contact us.

Podaj długość produktu. Maksymalna długość jak w tytule oferty.

This product is made to order. The required cable length MUST be specified in this field.
15 char. max

If the cable is to be shorter, please specify its length.

(+5.00 zł)

The printed text is limited to 8 characters.
8 char. max img Print preview image
Optional ?

This print field is optional. Fill it in only if you want to add printing.

After ordering, we will provide the order processing time.

RF10 0.400" 6GHz Antenna Cable LMR400 EQUIVALENT

High-class professional coaxial cable impedance 50 ohms in a polyethylene sheath, designed for transmission RF signals, data, etc. via
radio (WLAN 5 GHz, 2.4 GHz, WiMAX etc.) and other radio communication applications, for work in installations transmitting and receiving.


Design:

  • Inner core Cu diameter Ø 2.71 mm
  • Dielectric Physically foamed PE, diameter Ø 7.25 mm +/- 0.05 mm
  • Screen (outer conductor) Copper foil (Cu-PET) + 54% copper wire braiding (Cu)
  • Outer sheath PE, total diameter Ø 10.3 mm  0.2 mm, black (RAL 9005)
  • Standards EN 50117-1, IEC 61196-1
  • Minimum bend radius:
    no load 5 x cable diameter
    with load 10 x cable diameter

Temperature range:

  • during operation -30° C to + 85° C
  • during installation -15° C to + 85° C

Electrical parameters @ 20°C :

  • Resistance for direct current ( DC )
    vein internal 3.1 ohm/km
    external vein (screen) 9.4 ohm/km
  • Unit capacitance 79 pF/m
  • Wavelength reduction factor 84%
  • Wave impedance 50 ohm  ± 2 
  • Transfer impedance  <4 mOhm/m @10 MHz
  • Operating voltage 1.2 kVrms
  • Voltage test inner core/shield 3.0 kVrms
  • Outer Shell Puncture Test 5.0 kVrms
  • Shielding efficiency 100-1000 MHz 90 dB
  • Insulation resistance @500V >=10 GOhm


Performance parameters @20°C


Frequency (MHz) Wave attenuation dB/100m (nominal)

  • 10MHz ......................... 1.2 dB
  • 100 MHz .................... 3.7 dB
  • 500MHz .................... 8.7 dB
  • 800MHz .................... 11.3 dB
  • 1000 MHz ............ 12.8 dB
  • 2000MHz............18.9dB
  • 2500MHz.............21.4dB
  • 5400MHz............34.2dB
  • 5800MHz............35.8dB

Maximum power rating Watts (ambient temperature 40°C and maximum internal core temperature 100°C)

  • 10MHz .................. 8500 IN
  • 100 MHz ............ 2645 W
  • 500 MHz ............ 1120 W
  • 800MHz ................... 890 W
  • 1000MHz.............794W
  • 2000MHz.............530W
  • 2500MHz............475W
  • 5400MHz.............323W
  • 5800MHz.............311W
face="Arial">Return loss (dB) (average values)

  • 50-450 MHz ............. >= 26 dB
  • 450-1000 MHz ............ >= 23 dB
  • 1000-2500MHz ............. >= 20 dB

  • Reference
    ACC RG6 F690BV
  • In stock
    310 Items
  • Condition
    New
  • EAN13
    5905778468340
