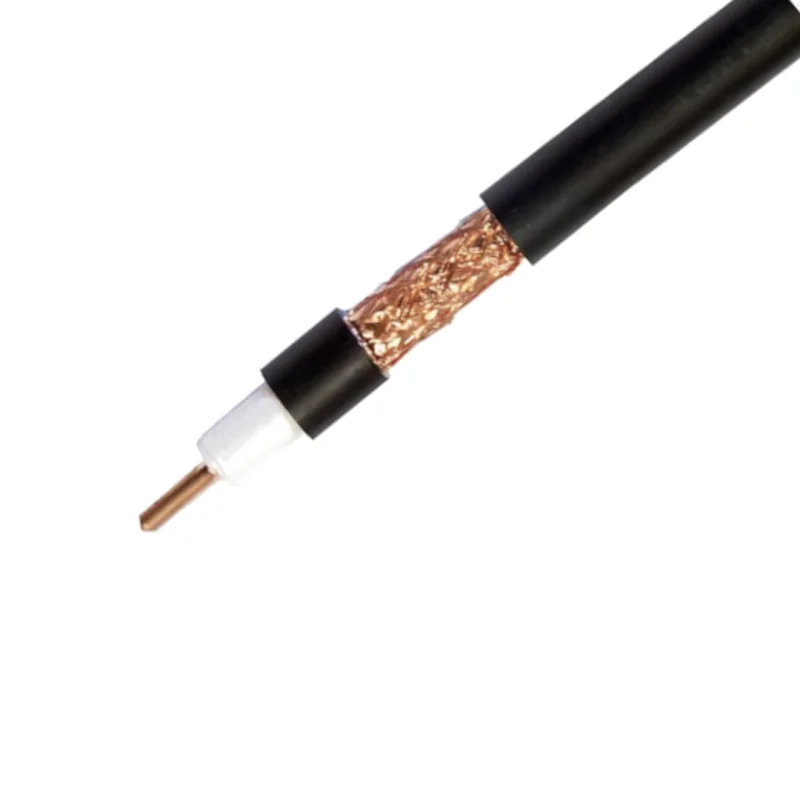

RF10 0.400" 6GHz Antenna Cable
LMR400 EQUIVALENT
High-class professional coaxial cable
impedance 50 ohms in a polyethylene sheath, designed for transmission
RF signals, data, etc. via
radio (WLAN 5 GHz, 2.4 GHz, WiMAX
etc.) and other radio communication applications, for work in installations
transmitting and receiving.
Design:
- Inner core Cu diameter Ø 2.71 mm
- Dielectric Physically foamed PE, diameter Ø 7.25
mm +/- 0.05 mm
- Screen (outer conductor) Copper foil (Cu-PET) +
54% copper wire braiding (Cu)
- Outer sheath PE, total diameter Ø 10.3 mm
0.2 mm, black (RAL 9005)
- Standards EN 50117-1, IEC 61196-1
- Minimum bend radius:
no load 5 x
cable diameter
with load 10 x cable diameter
Temperature range:
- during operation -30° C to + 85° C
- during installation -15° C to + 85° C
Electrical parameters
@ 20°C :
- Resistance for direct current ( DC )
vein
internal 3.1 ohm/km
external vein
(screen) 9.4 ohm/km
- Unit capacitance 79 pF/m
- Wavelength reduction factor 84%
- Wave impedance 50 ohm ± 2
- Transfer impedance <4 mOhm/m @10 MHz
- Operating voltage 1.2 kVrms
- Voltage test inner core/shield 3.0
kVrms
- Outer Shell Puncture Test 5.0
kVrms
- Shielding efficiency 100-1000 MHz 90
dB
- Insulation resistance @500V >=10 GOhm
Performance parameters
@20°C
Frequency (MHz) Wave attenuation dB/100m
(nominal)
- 10MHz ......................... 1.2
dB
- 100 MHz .................... 3.7
dB
- 500MHz .................... 8.7
dB
- 800MHz .................... 11.3
dB
- 1000 MHz ............ 12.8
dB
- 2000MHz.............18.9dB
- 2500MHz.............21.4dB
- 5400MHz............34.2dB
- 5800MHz............35.8dB
Maximum power rating Watts (ambient temperature
40°C and maximum internal core temperature 100°C)
- 10MHz .................. 8500
IN
- 100 MHz ............ 2645 W
- 500 MHz ............ 1120 W
- 800MHz ................... 890 W
- 1000MHz.............794W
- 2000MHz.............530W
- 2500MHz............475W
- 5400MHz.............323W
- 5800MHz.............311W
face="Arial">Return loss (dB) (average values)
- 50-450
MHz ............. >= 26 dB
- 450-1000 MHz ............ >= 23
dB
- 1000-2500MHz .............
>= 20
dB
