NOTE – products made to order
The cables presented are sample configurations and are not finished products held in stock. Each product is made to order according to the selected configuration (cable type, length, connector type).
Cable products are non-returnable for any reason.
Why are cable products non-returnable?
Each cable is individually manufactured after the order is placed. We select and assemble the cable, connectors, and length according to the configuration selected by the Buyer.
The products offered should be considered sample configurations and manufacturing models. These are not finished products held in stock, but products made or assembled to order.
Due to the individual nature of their manufacture, these products constitute non-prefabricated goods manufactured according to the customer's specifications or intended to meet their individual needs. Therefore, the right to withdraw from the contract and return without giving a reason is not available to the extent permitted by applicable law.
Before placing an order, we recommend carefully checking the product configuration. If you have any questions regarding the selection of cables, connectors, or technical parameters, please contact our technical department.
0
|

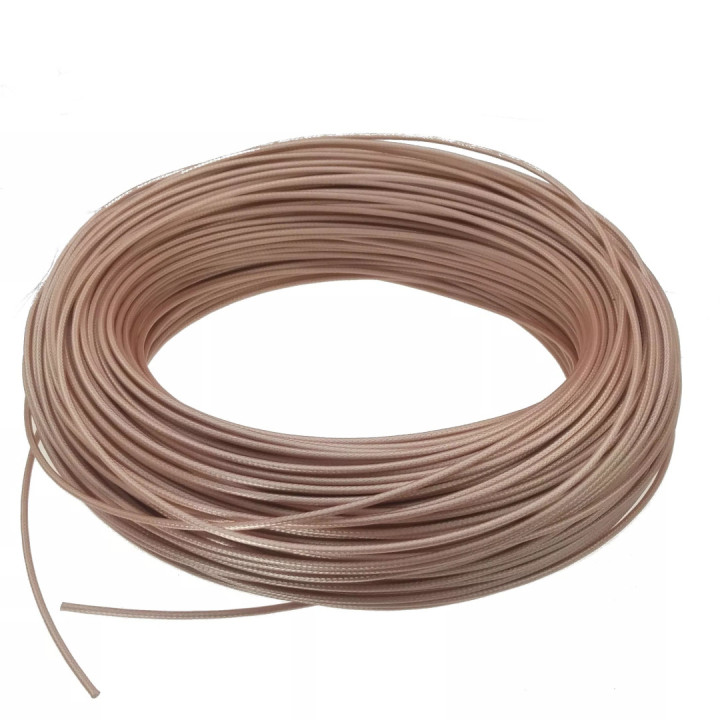

Cable coaxial RG316

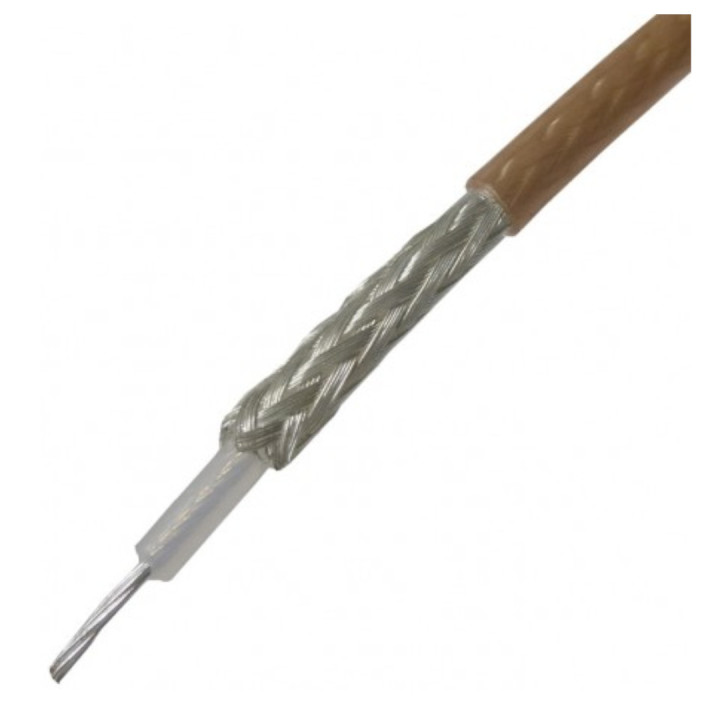

RG316 coaxial cable, single shielded, with light brown FEP outer cover.
The cable is extremely flexible and is characterized by high insulation voltage and high maximum operating temperature up to 200°C.
| scope="row">internal vein | 7x0.17 Cu/cord silver plated copper: StCuLi |
|---|---|
| scope="row">internal dielectric outer shell |
1.5mm PTFE 2.6mm/FEP |
| scope="row">screen | 64x0.1 Cu plated Sn |
| scope="row">wave impedance wire resistance signal working temperature insulation |
50Ω |
| scope="row">unit capacity | 95 ±2pF/m |
| scope="row"> | |
| scope="row">attenuation |
50MHz - 18.4dB/100m, |
