Coaxial cable RG174 MIL-C17 Technokabel

Brutto: 11.40 zł
Netto: 9.27 zł
In stock:
494 szt.

Volume discounts

Quantity Unit price You Save
11 11.06 zł 3.76 zł
21 10.71 zł 14.36 zł
31 10.37 zł 31.80 zł
51 9.69 zł 87.20 zł
Czas wysyłki 1-2 dni robocze

The minimum purchase order quantity for the product is 5.

Gwarancja ceny

W związku z dużą ilością zamówień włączyliśmy opcję zamawiania ilości produktów powyżej dostępnego stanu w magazynie.

Opłacenie zakupu produktu powyżej aktualnego stanu zapewni Państwu:

- rezerwację i gwarancję dostawy produktu,
- gwarancję ceny z dnia z opłacenia zamówienia.
Nie ma innej formy rezerwacji produktów
done   Produkt w stałej ofercie.
W przypadku chwilowego braku lub zapotrzebowania na większą ilość czas dostawy 5-10 dni roboczych.

COAXIAL CABLE RG174 TECHNOCABLE

RG174 MIL-C17 coaxial cable, stranded, black, 100m

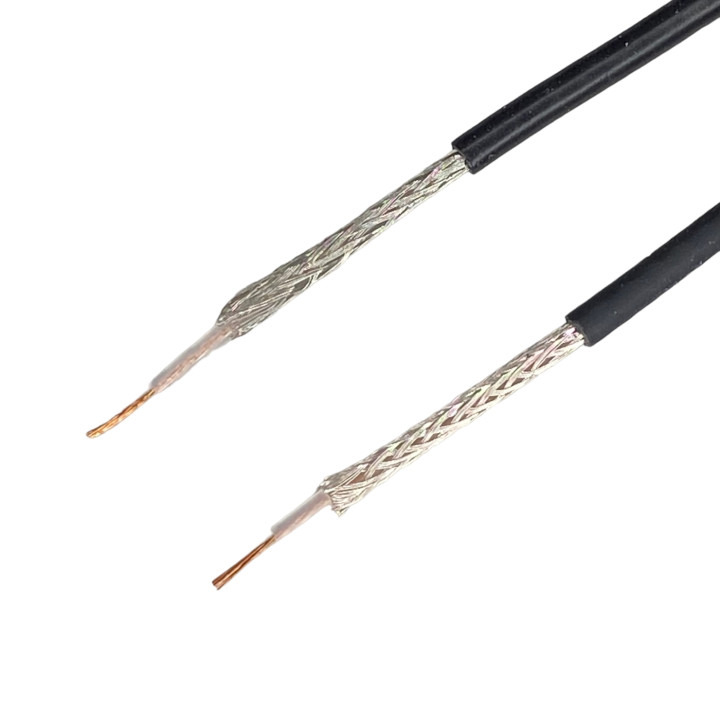

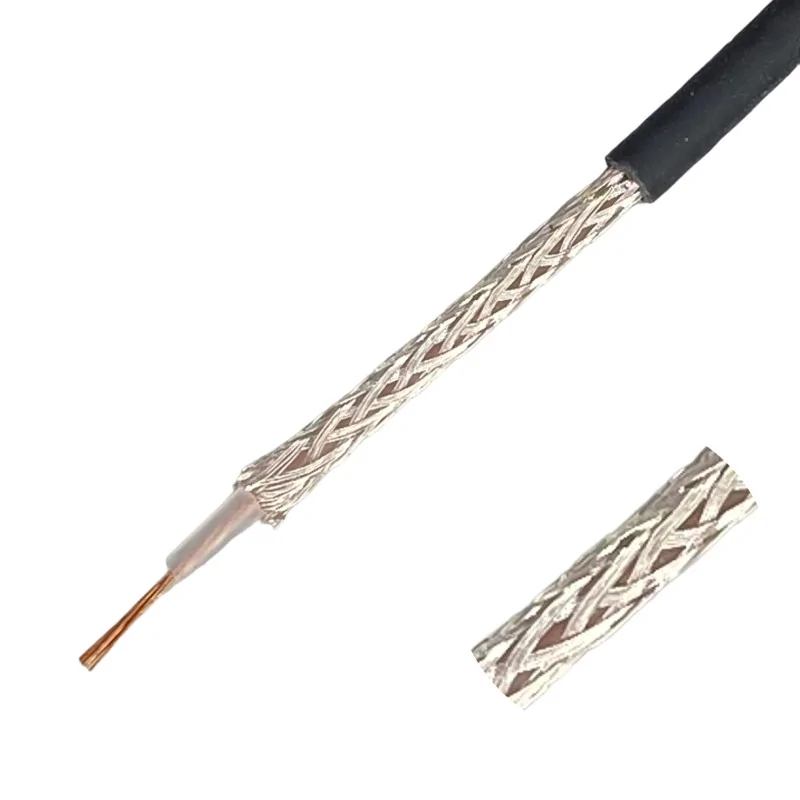

RG174 MIL-C17 is a super flexible coaxial cable with impedance 50Ω and an external diameter of 2.8mm. PVC outer sheath in black. The inner core has a multi-wire structure (a twisted line with copper wires). The dielectric is made of PE.
internal vein 7x0.15 Cu/cord
internal dielectric
outer shell
1.3mm EP
2.7mm/PVC/black
screen 64x0.1 Cu platroana with silver
wave impedance
wire resistance signal
working temperature
insulation

50Ω
197Ω/km
-15/+70°C
1500V

unit capacity 97.8 ±2pF/m
attenuation

50MHz - 21.3dB/100m,
4100MHz - 30.8dB/100m,
200 MHz - 43.1 dB/100m,
400MHz - 54.9 dB/100m,
600MHz - 62.5dB/100m,
1000 MHz -101.7 dB/100m

Wire has length markers every 1m.

  • Brand
  • Reference
    ACC RG174 TECH
  • In stock
    494 Items
  • Condition
    New
  • EAN13
    5905778401552
