Coaxial Cable RG174 C17 MIL Premium

Brutto: 9.16 zł
Netto: 7.45 zł
In stock:
2007 szt.

Volume discounts

Quantity Unit price You Save
11 8.88 zł 3.02 zł
21 8.61 zł 11.54 zł
31 8.33 zł 25.55 zł
51 7.79 zł 70.07 zł
Czas wysyłki 1-2 dni robocze

The minimum purchase order quantity for the product is 5.

Gwarancja ceny

W związku z dużą ilością zamówień włączyliśmy opcję zamawiania ilości produktów powyżej dostępnego stanu w magazynie.

Opłacenie zakupu produktu powyżej aktualnego stanu zapewni Państwu:

- rezerwację i gwarancję dostawy produktu,
- gwarancję ceny z dnia z opłacenia zamówienia.
Nie ma innej formy rezerwacji produktów
done   Produkt w stałej ofercie.
W przypadku chwilowego braku lub zapotrzebowania na większą ilość czas dostawy 5-10 dni roboczych.

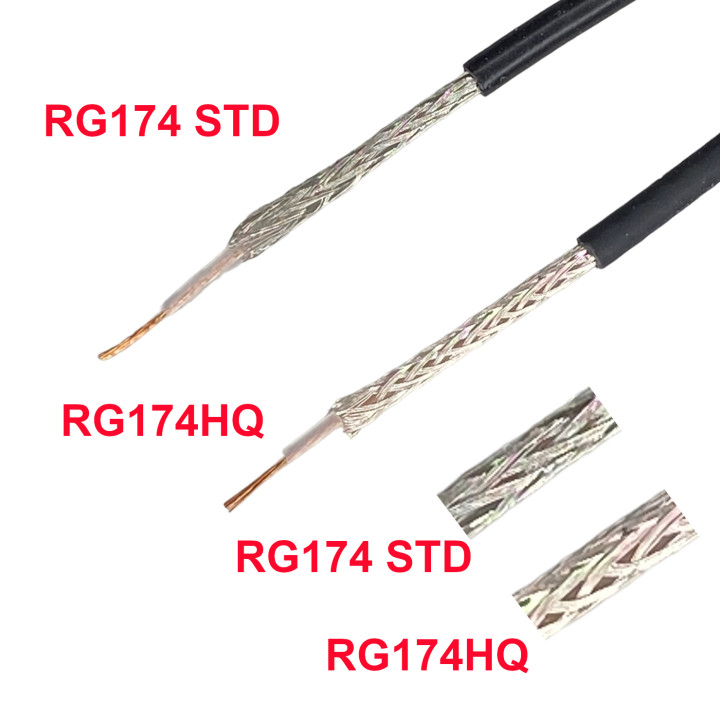

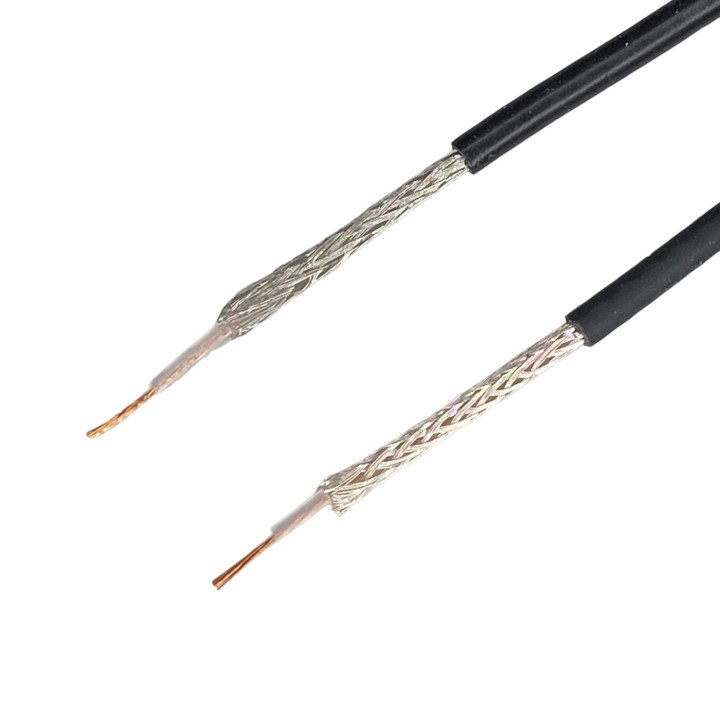

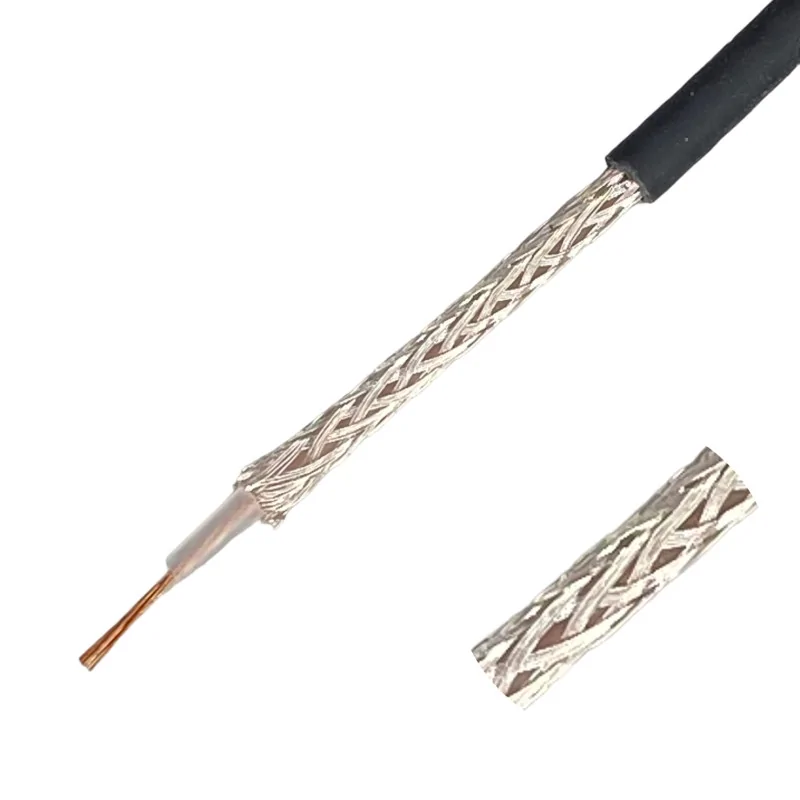

COAXIAL CABLE RG174 MIL-C17 SUPER FLEXIBLE

RG174 MIL-C17 coaxial cable, stranded, black, 100m

RG174 MIL-C17 is a super flexible coaxial cable with impedance 50Ω and an external diameter of 2.8mm. PVC outer sheath in black. The inner core has a multi-wire structure (a twisted line with copper wires). The dielectric is made of PE.
internal vein 7x0.16 Cu/cord
internal dielectric
outer shell
1.5mm EP
2.8mm/PVC/black
screen 64x0.1 Cu platroana with silver
wave impedance
wire resistance signal
working temperature
insulation

50Ω
260Ω/km
-15/+70°C
1500V

unit capacity 100 ±2pF/m
attenuation

50MHz - 17.5dB/100m,
100MHz - 25.8dB/100m,
200 MHz - 38.2 dB/100m,
400MHz - 54.9 dB/100m,
600MHz - 62.5dB/100m,
800 MHz - 77.0 dB/100m,
1000MHz - 86.9 dB/100m

Wire has length markers every 1m.
