• Coaxial cable RG316 100m
  • Coaxial cable RG316 100m

NOTE – products made to order

The cables presented are sample configurations and are not finished products held in stock. Each product is made to order according to the selected configuration (cable type, length, connector type).

Cable products are non-returnable for any reason.

Why are cable products non-returnable?

Each cable is individually manufactured after the order is placed. We select and assemble the cable, connectors, and length according to the configuration selected by the Buyer.

The products offered should be considered sample configurations and manufacturing models. These are not finished products held in stock, but products made or assembled to order.

Due to the individual nature of their manufacture, these products constitute non-prefabricated goods manufactured according to the customer's specifications or intended to meet their individual needs. Therefore, the right to withdraw from the contract and return without giving a reason is not available to the extent permitted by applicable law.

Before placing an order, we recommend carefully checking the product configuration. If you have any questions regarding the selection of cables, connectors, or technical parameters, please contact our technical department.

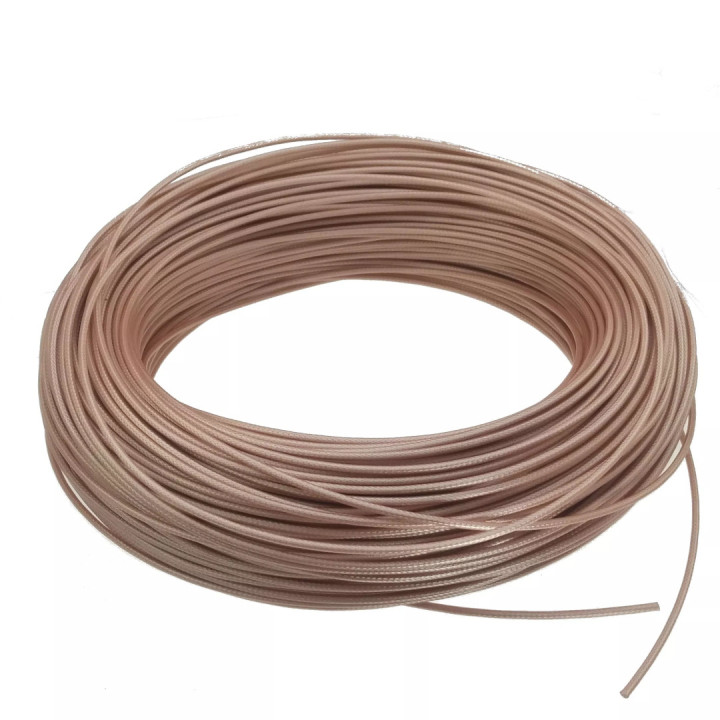

Coaxial cable RG316 100m

Brutto: 12.44 zł
Netto: 10.11 zł
In stock:
21966 szt.
Czas wysyłki 1-2 dni robocze

The minimum purchase order quantity for the product is 100.

Gwarancja ceny

W związku z dużą ilością zamówień włączyliśmy opcję zamawiania ilości produktów powyżej dostępnego stanu w magazynie.

Opłacenie zakupu produktu powyżej aktualnego stanu zapewni Państwu:

- rezerwację i gwarancję dostawy produktu,
- gwarancję ceny z dnia z opłacenia zamówienia.
Nie ma innej formy rezerwacji produktów
done   Produkt w stałej ofercie.
W przypadku chwilowego braku lub zapotrzebowania na większą ilość czas dostawy 5-10 dni roboczych.

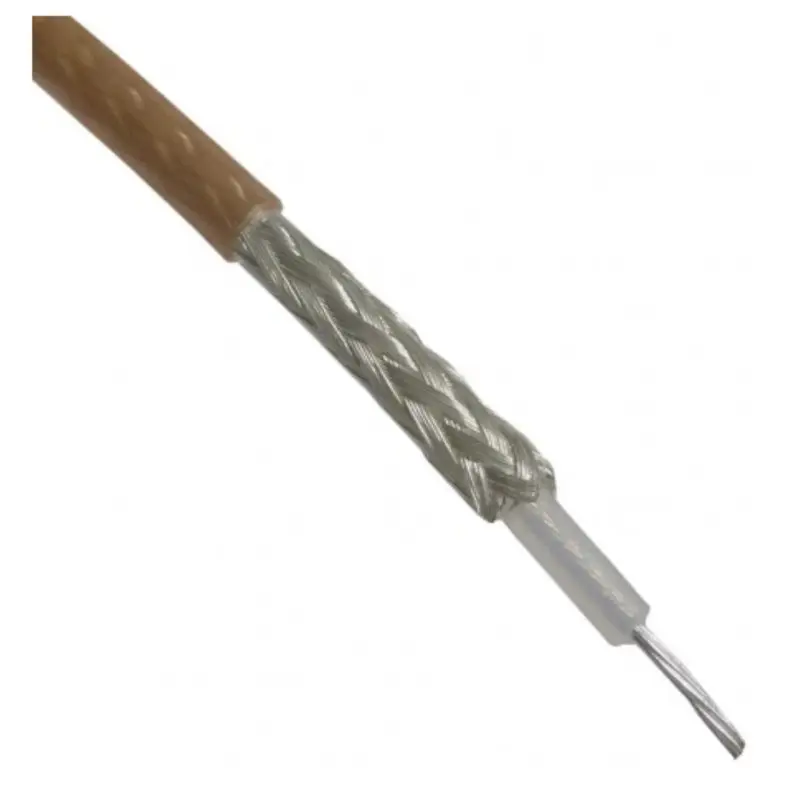

RG316 coaxial cable


The RG316 coaxial cable is designed for radio devices, shortwave equipment and other solutions requiring a high-quality radio path.

Due to its flexibility and high frequency parameters, it is used to make pigtails and interconnects in WIFI systems and more.

In modeling it is used as an antenna wire.

Technical parameters:

  • Wire material: silver plated copper: StCuLi ? 7x0.175mm
  • Outer diameter: ? 1.8mm
  • Internal dielectric: PTFE
  • Braiding: Silver-plated copper
  • Outer shell: FEP
  • Impedance: 50ohm - +/-2
  • Capacitance: 96.5 pF/m
  • Nominal voltage: 1200V
  • Operating temperature: -55°C~+200°C
  • Minimum bend radius: 13mm
  • Damping:


100MHz - 26.2dB/100m
400MHz - 53.1dB/100m
1000MHz - 85.6dB/100m
3000MHz - 153.2dB/100m

  • Brand
  • Reference
    ACC RG316 100M
  • In stock
    21966 Items
  • Condition
    New
