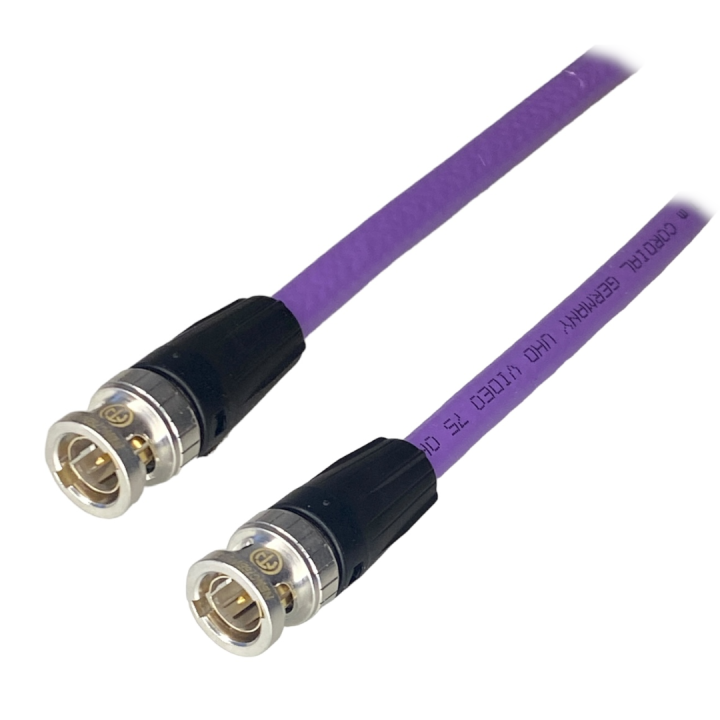

UHD 6G HD-SDI Cable
3G-SDI Cordial Flex 12-50 75ohm BNC straight plug / BNC straight plug 1m
PREMIUM!!!
UHD (Ultra Hight Definition ) interchangeably called Ultra HD (formerly Super Hi Vision)
HD-SDI (High-Definition Serial Digital Interface) - transmission standard digital uncompressed video signal in real time real.
At the initial stage of technology development was mainly used in professional television and broadcasting applications.
Currently it was standing It is becoming available and popular in related applications :
SPECIFICATION:

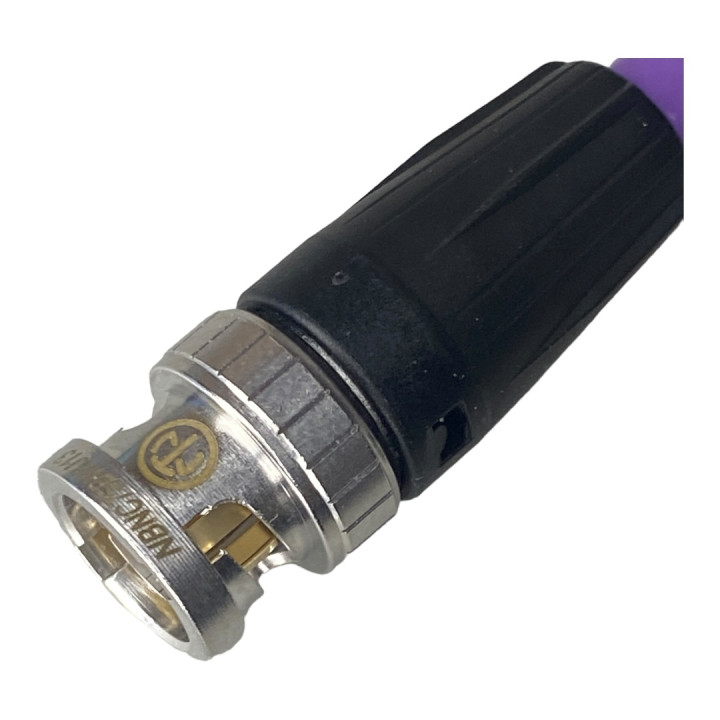

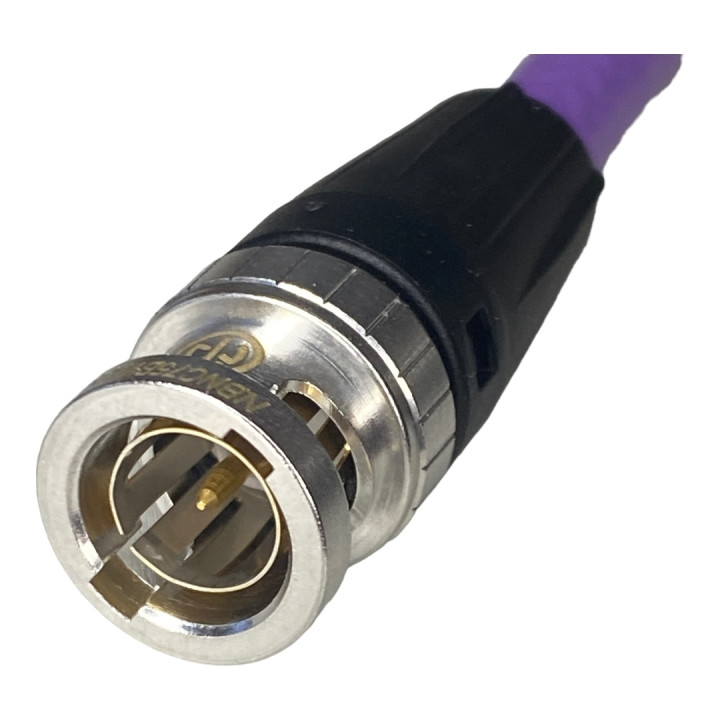

product type: UHD, 6G video transmission cable HD-SDI, 3G-SDI CONNECTOR 1: BNC straight plug Neutric CONNECTOR 2: BNC straight Neutric plug cable : Cordial Flex 12-50 wave impedance: 75 ohm Throughput (data transfer) up to 6Gbps product length: 1mCABLE SPECIFICATION:

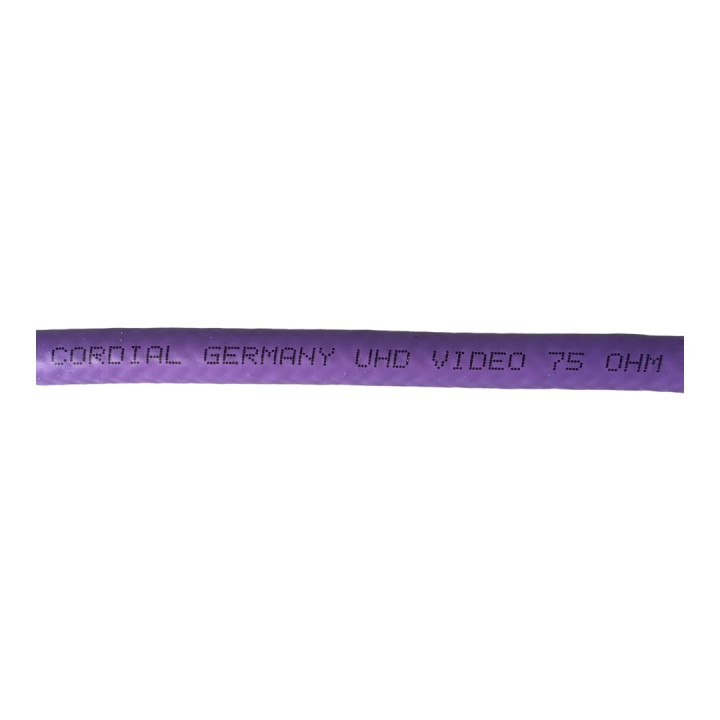

Product type: cable concentric. Type: Cordial Flex 12-50. Impedance waveform: 75ohm. Signal core: 7x0.4mm Tinned copper. Screen: double-layer cross-wire braid screening tinned copper: 2x100 strands. Dielectric: gas-expanded polyethylene. Outer armor: PVC. Violet. Capacitance: 55pF/m. Signal core resistance: 9ohm/km. Screen resistance: 1 9ohm/km. Cable diameter: 7mm. Minimum bending radius: 50mm. Drumming : YES.Damping: @20*C
up to 100MHz <6.9dB/100m
up to 500MHz <9.9 dB/100m
up to 3000MHz <26dB/100m
Return loss @20*C
up to 1000MHz >25dB
up to 3000MHz >21dB
