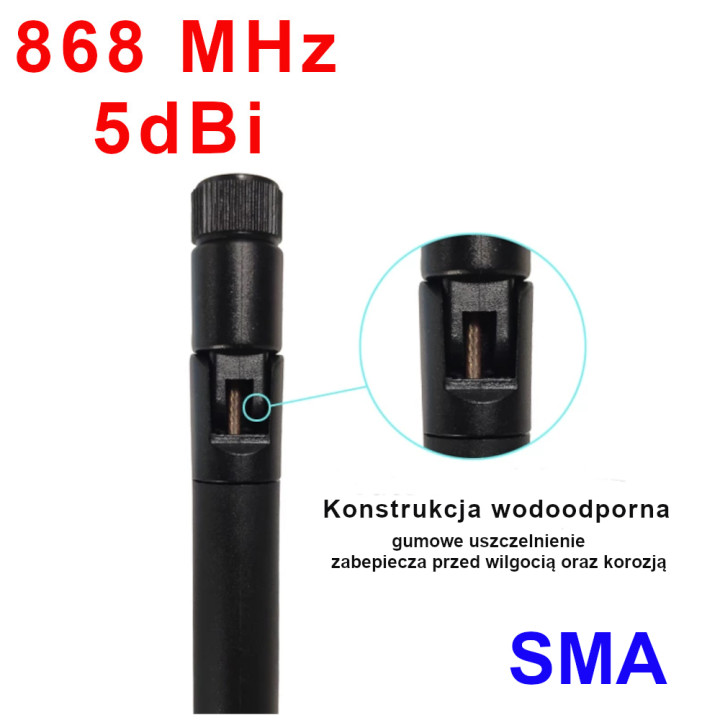

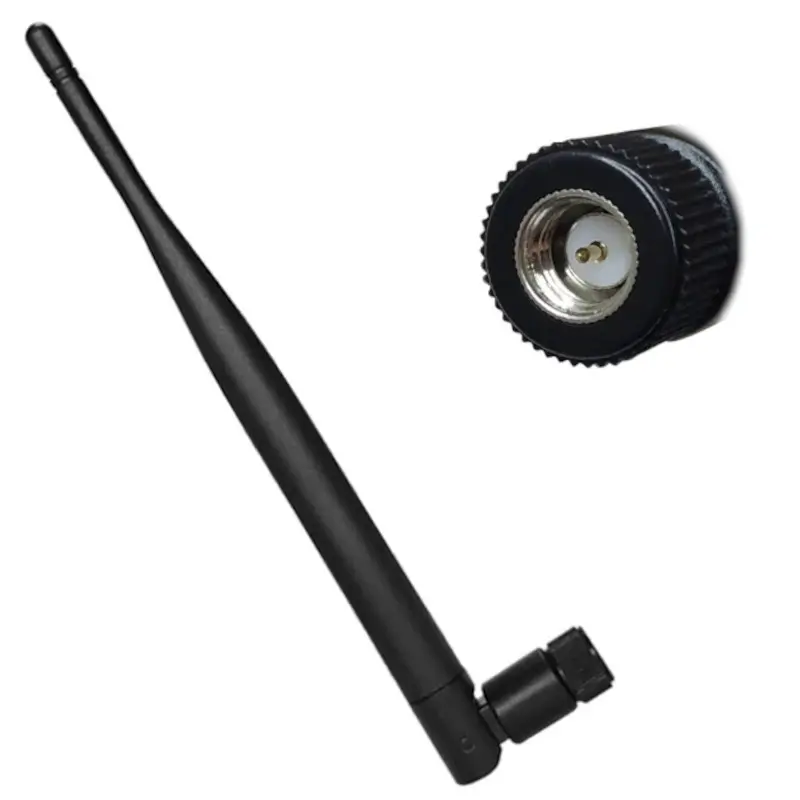

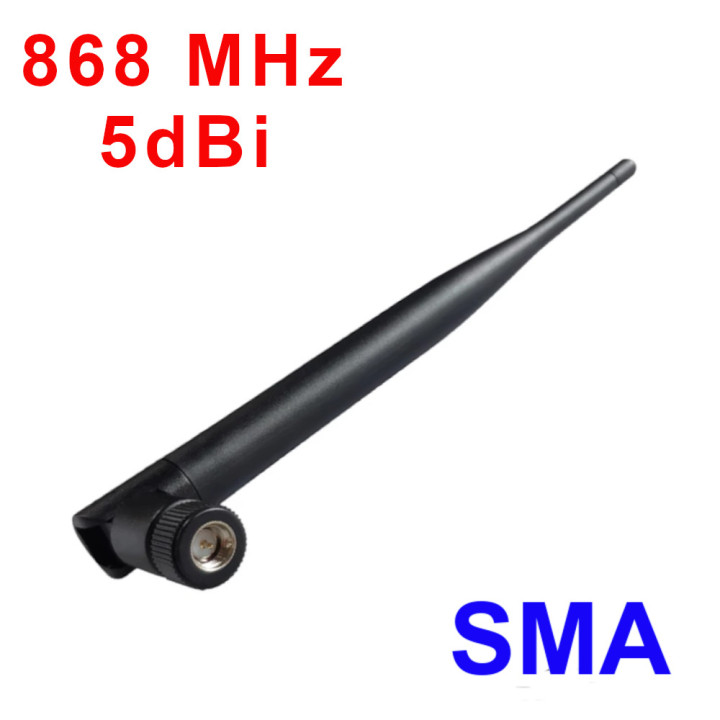

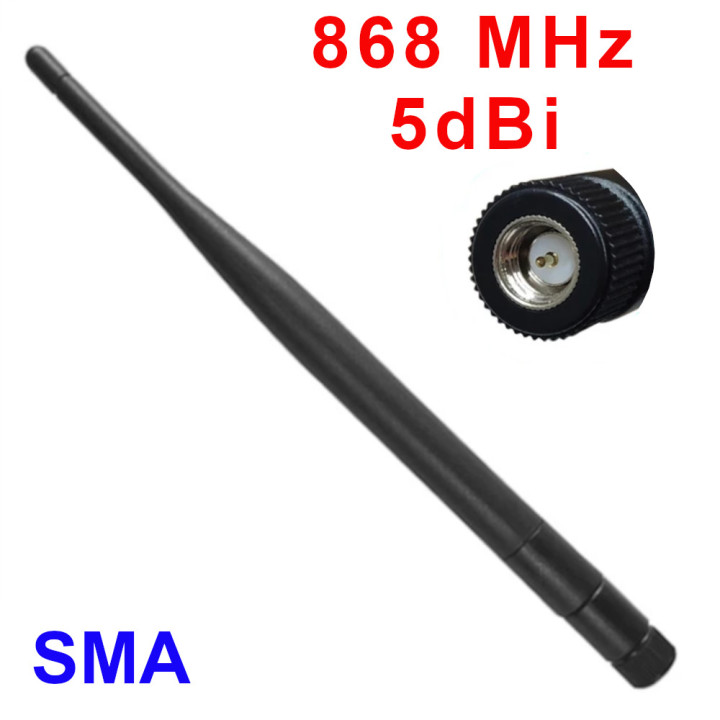

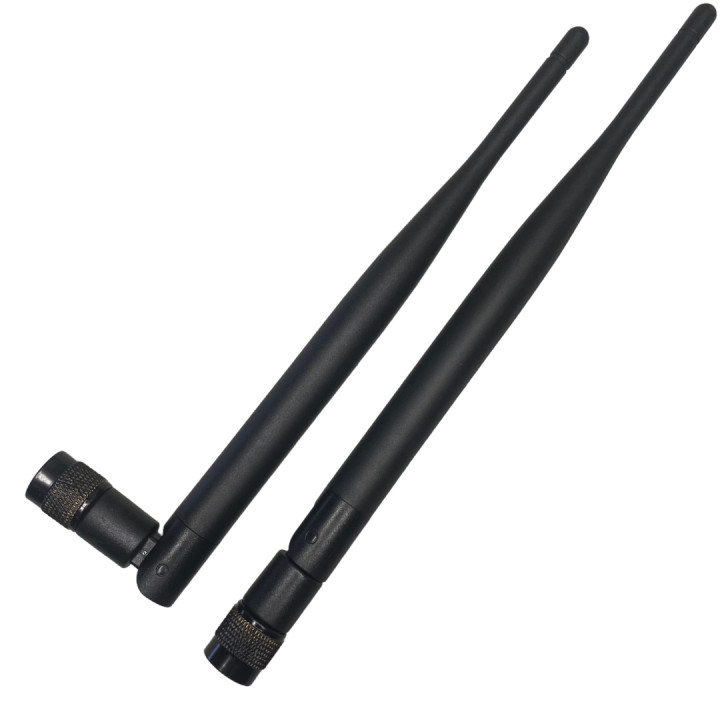

Antenna 868 MHz, 915 MHz 5 dBi SMA plug

Antenna 862MHz, 915 MHz,5 dBi SMA plug

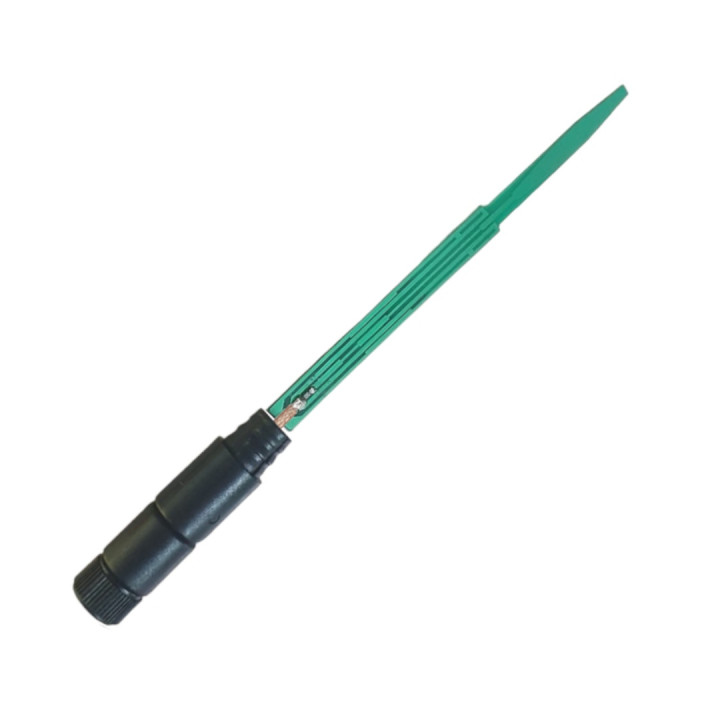

Antenna with a vibrator on a PCB. This solution is characterized by the extension of the reception band. It facilitates easier cooperation between devices (especially in different systems) transceivers), the compromise is a smaller reception.

Application:

• a smart home,
• garage door control systems,
• alarm sensors,
• temperature controllers,
• radio lines,
• Telemetry

Leading the antenna outside the device housing, whether the room significantly improves the range and stability of transmission data.

SPECIFICATION:

• Frequency: 868 ... 916 MHz
• Energy gain Antennas: 5Bi
• Impedance: 50Ω
• Polarization: linear
• Operating temperature: -40...85°C
• Installation: to connectors

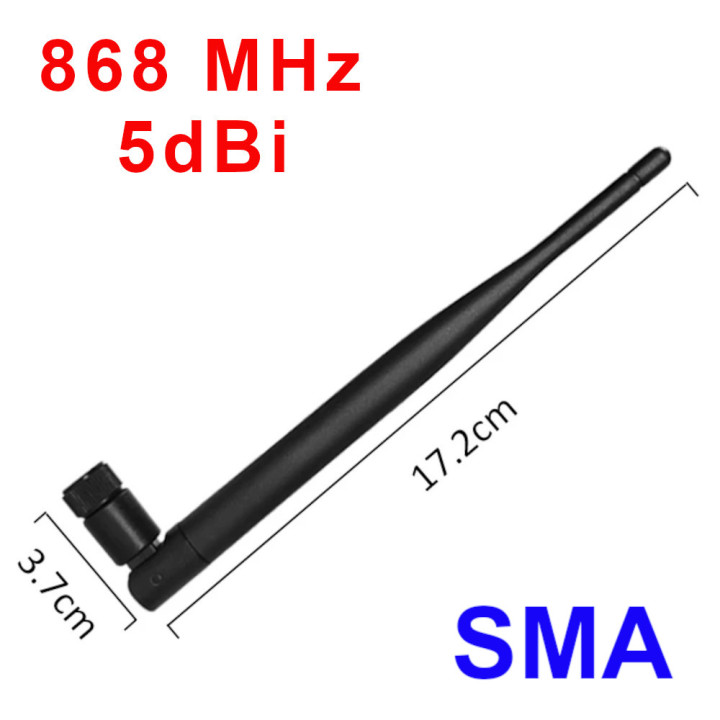

• Total antenna length: 204 mm
• Antenna length up to hinge: 172 mm
• Diameter antennas: 13.5mm
