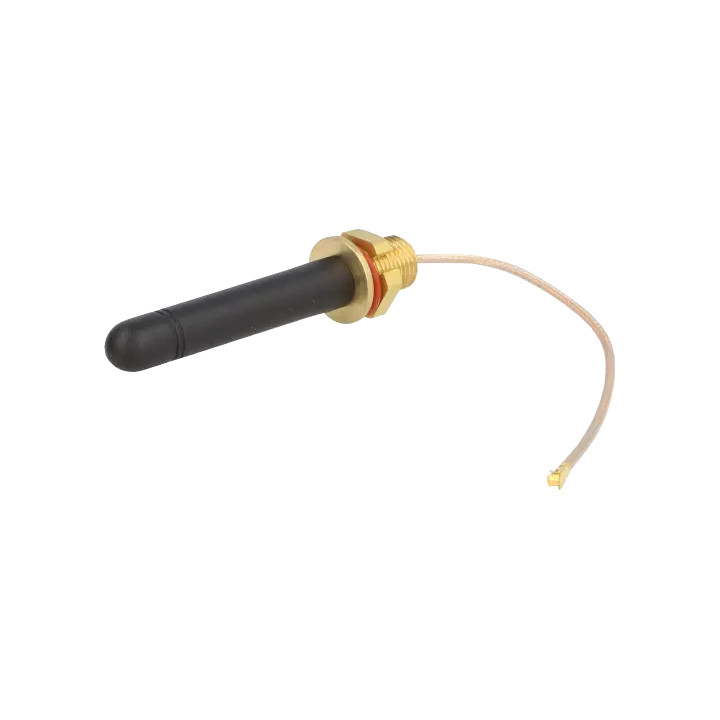

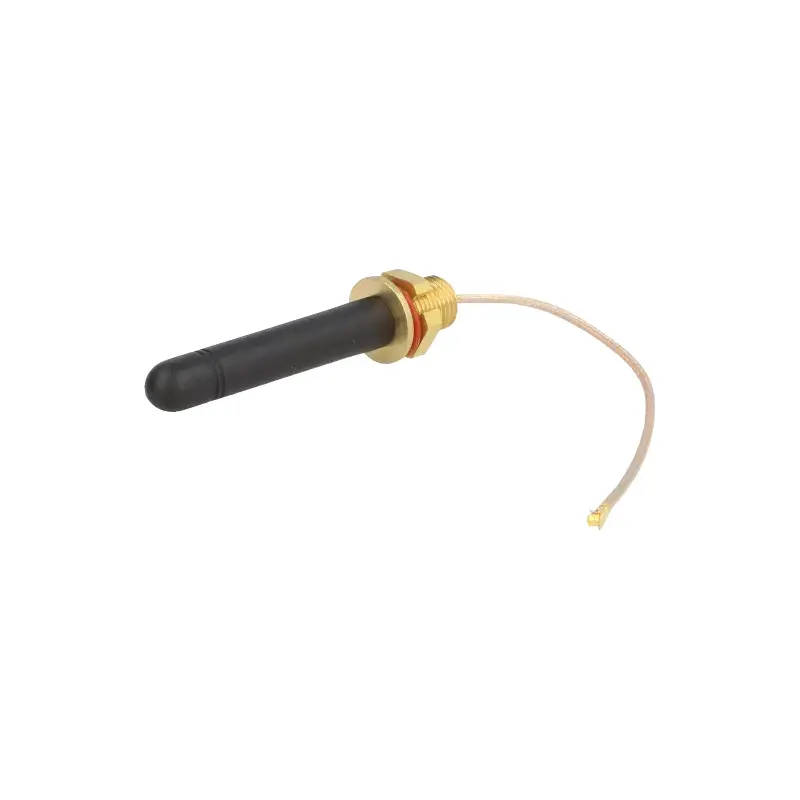

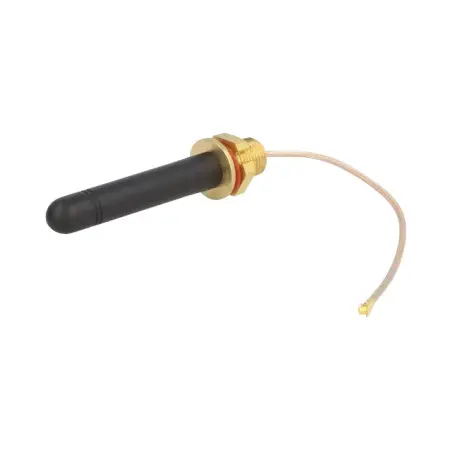

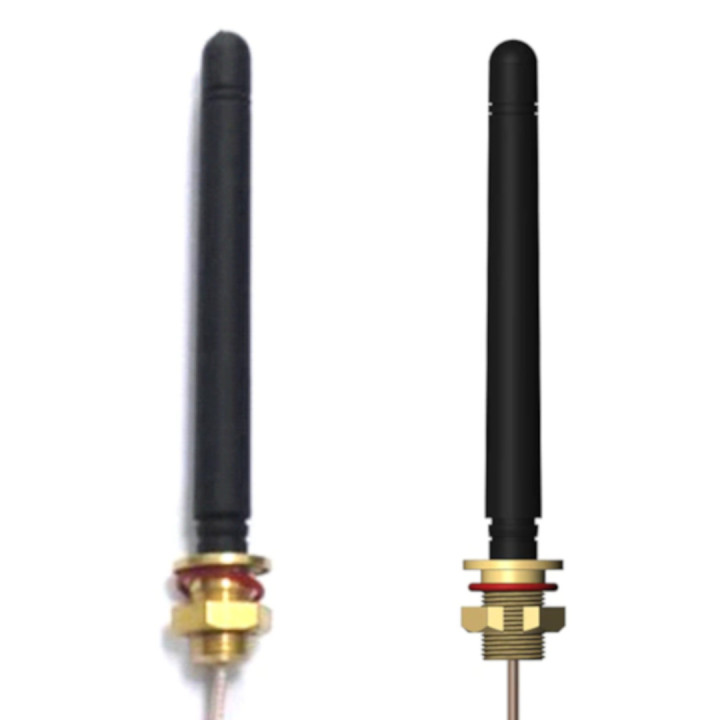

Antenna 868Mhz 2dBi MOUNTING SCREW U-FL X110 plug

Antenna 868Mhz 2dBi U-FL plug

face="Arial">Use:

face="Arial">

• smart home control,
• garage door control systems,
• alarm sensors,
• temperature controllers,
• radio lines,
• Telemetry

Leading the antenna outside the housing devices or rooms significantly improves access and stability connections to a GSM operator.

Antenna designed for for mounting to the housing, chassis, body through the mounting hole fi=12mm.

Once installed, it blends in discreetly with assembly place

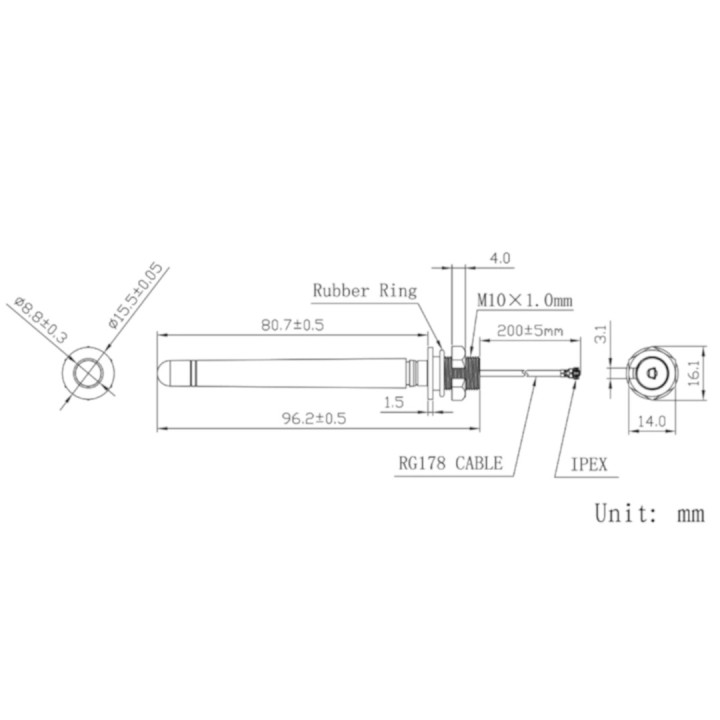

face="Arial"> SPECIFICATION

Frequency: 868Mhz Antenna energy gain: 2dBiImpedance: 50Ω Polarization: linear Operating temperature: -40...85°CMounting: screw (fixing nut)Connector type: u.FL IPX,IPEXCable type: RG178Cable length: 100 mmAntenna height: 94mm Antenna diameter: 15.5 mm Mounting hole diameter: 12mm Degree of protection: IP67 ( otherwise resistance to weather conditions) environmental)

INSTALLATION NOTES:

• Antenna output to outside the device housing or room significantly improves the range and stability of data transmission.
• In the case of a mounted antenna adhesive tape should be avoided when mounting it on surfaces metal, because it leads to a decrease in its profit and changes directional characteristics.
