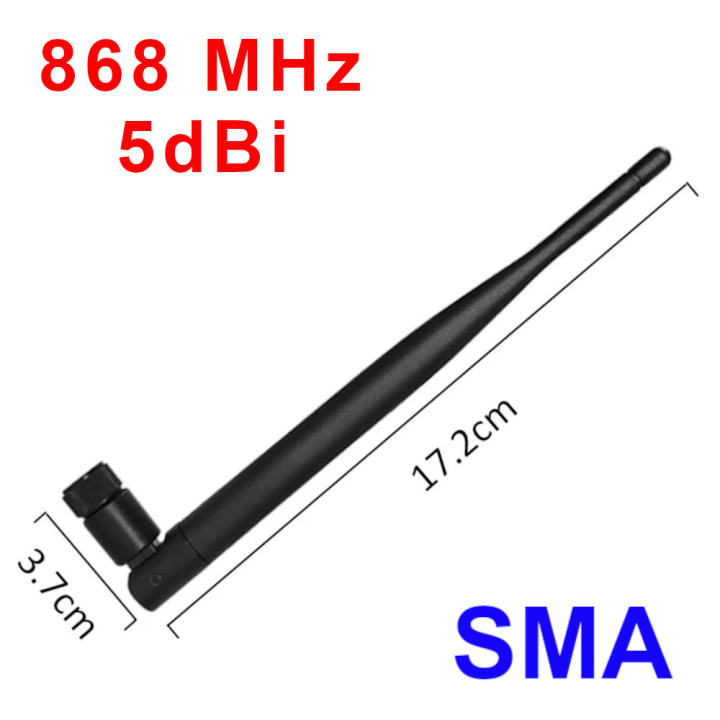

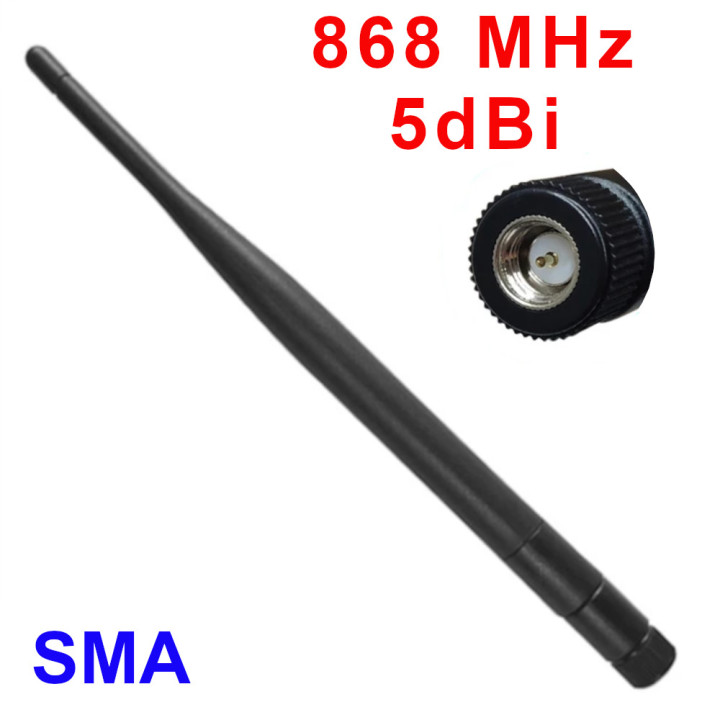

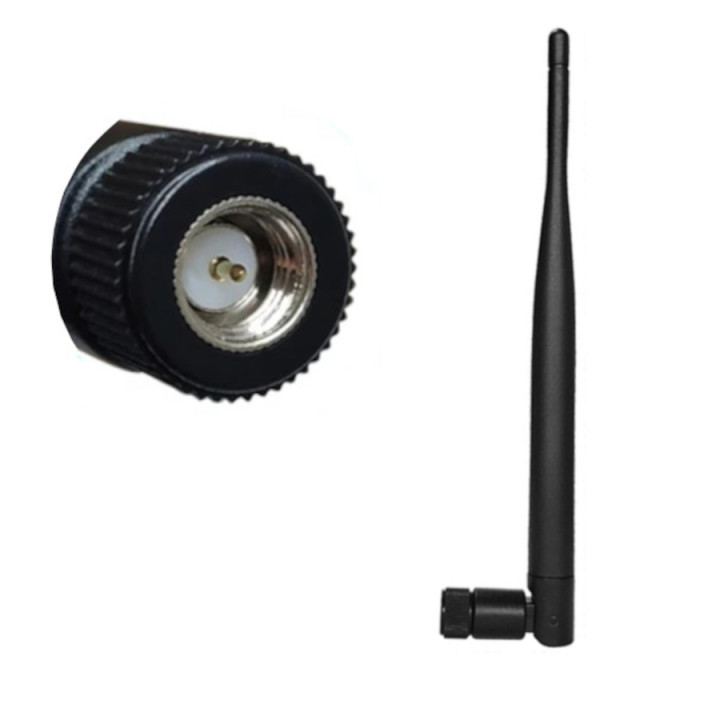

Antenna 868 MHz, 915 MHz 5 dBi SMA v2 plug

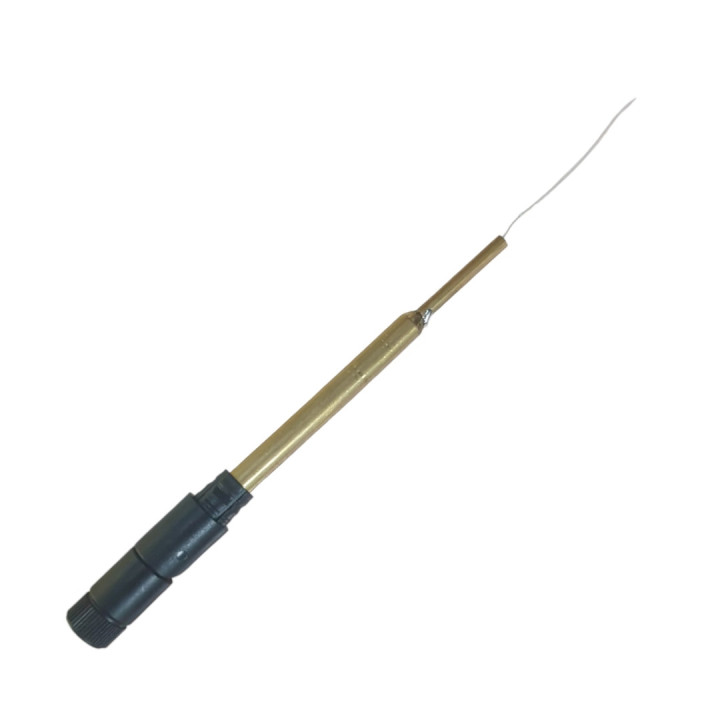

Antenna 862MHz, 915 MHz,5 dBi SMA plug brass vibrator version

The brass vibrator guarantees higher selectivity of transmission and reception in the operating bands.
The use of these antennas require ensuring higher compatibility of devices with each other cooperating.

Application:

• a smart home,
• garage door control systems,
• alarm sensors,
• temperature controllers,
• radio lines,
• Telemetry

Leading the antenna outside the device housing, whether the room significantly improves the range and stability of transmission data.

SPECIFICATION:

• Frequency: 868 ... 916 MHz
• Energy gain Antennas: 5Bi
• Impedance: 50Ω
• Polarization: linear
• Operating temperature: -40...85°C
• Installation: to connectors
• Total antenna length: 204 mm
• Antenna length up to hinge: 172 mm
• Diameter antennas: 13.5mm
