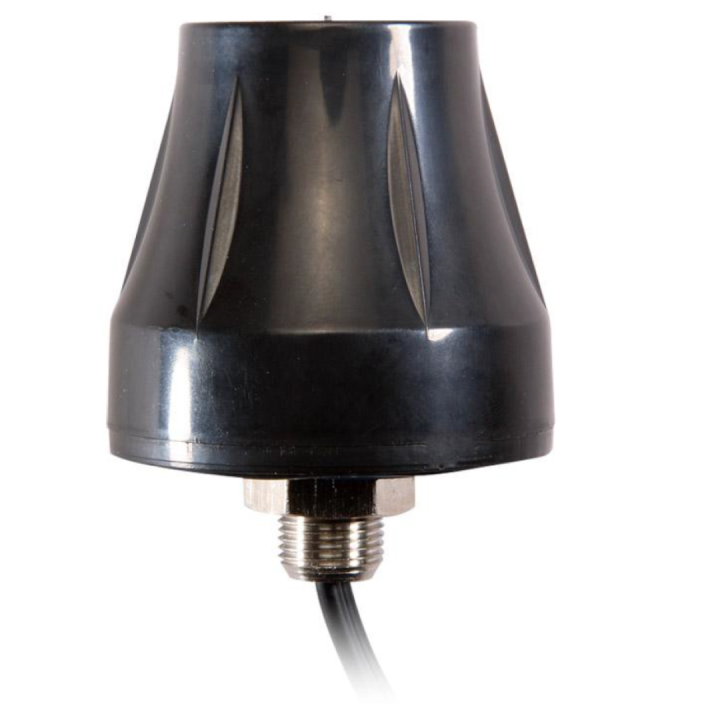

size="4"> WiFi Antenna 2.4GHz OMNIDIRECTIONAL SMA 2.5dBi - MOUNTING TO HOUSING
size="3">
!!! please verify your socket on your device with the photo !!!
APPLICATION:
- a smart home,
- garage door control systems,
- alarm sensors,
- cameras,
- robots,
- remote controlled devices,
- temperature controllers,
- radio lines,
- telemetry,
- and others
Leading the antenna outside the housing devices or rooms significantly improves range and stability data transmission.
SPECIFICATION:
- Frequency: 2.4 GHz ,
- Bluetooth communication,
- Antenna gain: 2.5 dBi , Omni directional
- Impedance: 50Ω ,
- Polarization: linear ,
- Operating temperature: -40...85 °C ,
- Mounting: to the connector,
- Connector type: SMA plug , (other plugs from our offer may be available on request) )
- Antenna cable: RG174 ,
- Antenna cable length: 3 m ,

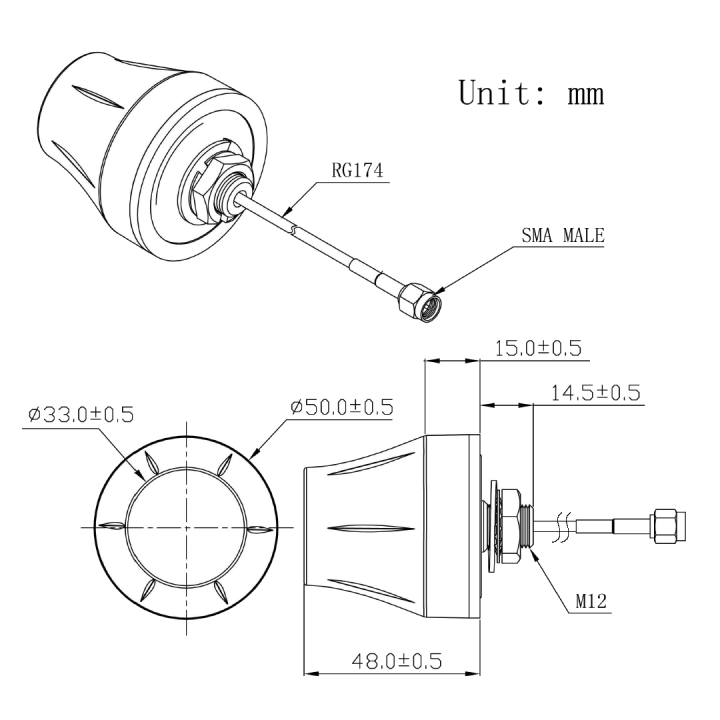

- Total length of the antenna : 62.5 +/- 0.5 mm ,
- Antenna diameter: 33/50 +/-0.5mm .
- Mounting method: M12 screw to the housing ,
- Wall thickness for installation: max 9mm ,
- Vibration resistance: 10...55Hz @amplitude 1.5mm, @120min
OFFER DETAILS:
- new product,
- the offer is for 1 pcs
