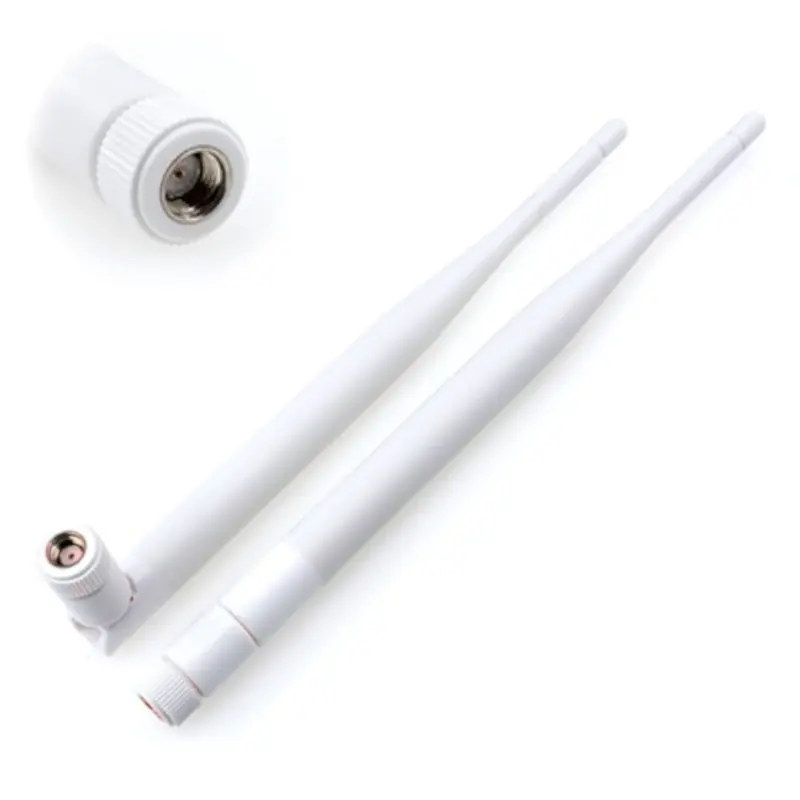

WiFi Antenna 2.4GHz 6dBi OMNIDIRECTIONAL SMA-RP WHITE

size="4"> WiFi antenna 2.4 GHz - 6 dBi Omnidirectional SMA-RP WHITE

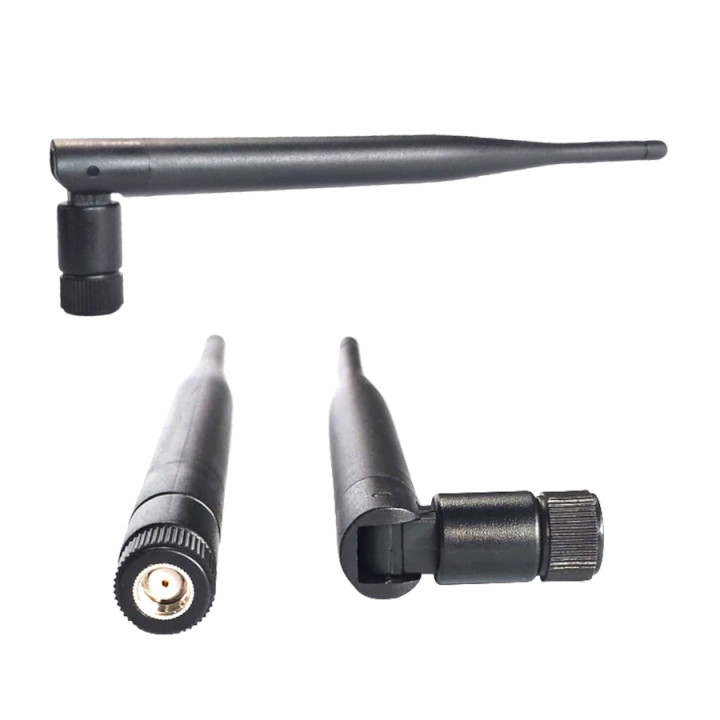

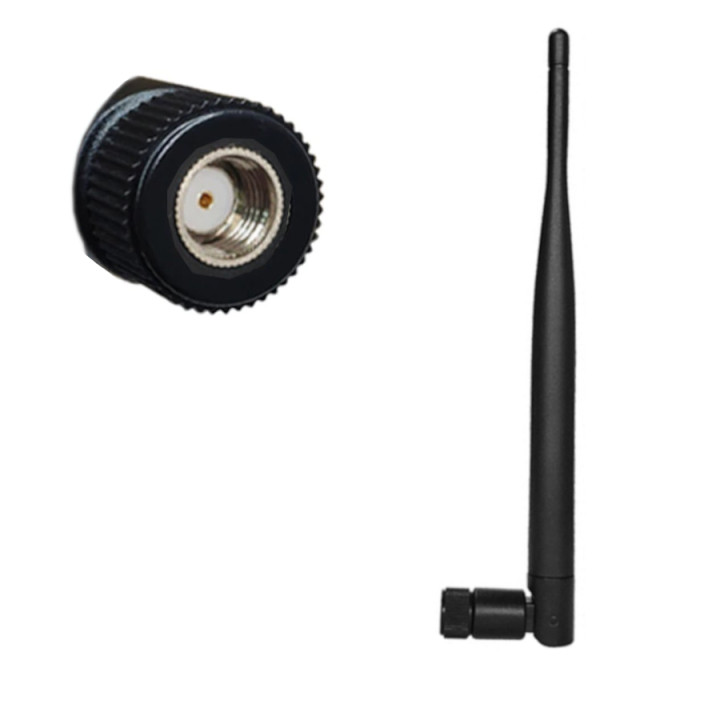

The offer applies to a white antenna, the pictures of the black antenna are used to better show its shape and dimensions

face="Arial"> NOTE:

THIS ANTENNA IS INTENDED FOR WiFi NETWORK DEVICES - ROUTER, ACCESS POINT, CARD NETWORK

For the antenna to work with WiFi network devices (routers, access points) must be equipped with SMA-RP plug.

APPLICATION:

• a smart home,
• garage door control systems,
• alarm sensors,
• cameras,
• drones,
• remote controlled devices,
• temperature controllers,
• radio lines,
• telemetry,
• and others

Leading the antenna outside the housing devices or rooms significantly improves range and stability data transmission.

SPECIFICATION:

• Frequency: 2.4 GHz ,
• Bluetooth communication,
• Antenna gain: 6 dBi , Omni directional
• Impedance: 50Ω ,
• Polarization: linear ,
• Operating temperature: -40...85 °C ,
• Installation: connectors,
• Connector type: SMA-RP plug ,
• Total length of the antenna : 204mm ,
• Antenna length up to hinge: 172 mm ,
• Antenna diameter: 13.5mm .
• Color: WHITE

OFFER DETAILS:

• new product,
• the offer is for 1 pcs


If you need to connect an antenna to the RF module connector, U.FL or MHF4 you will find in our offer pigtails connection:

• Pigtail U.FL (IPEX) - SMA-RP FEMALE 5 to 80 cm
• Pigtail MHF4 (IPEX) - SMA-RP FEMALE 5 to 80 cm
